Product Pump :
the rotator pump is also called as colloid pump , sole pump , etc . During the rotation pf the two rotors (gear number is 2-4) , which make synchronous reverse rotation , the rotor pump produces (vaccum degree) suction at the intet , so as to suck the materials to the transported / the two rotors seperate the rotor chamber into several small spaces and rotate according to the sequence of a→b→c →d . when rotating to position a , only chamber I is filled with media , when reaching position b , chamber b also included some media , when reaching position c , chamber a is also filled with media , when reaching position d , chamber a ,c and II will connect with each other and the media will be transported to the diacharging vent . the media (materials) will be continuously transported by repeating the above operation .
Advantages:
1.Providing stall-free, ice-free operation
2.Idling ,self-priming ,submerse capability.
3.Offering the ability to vary the flow outlet and discharge pressure .

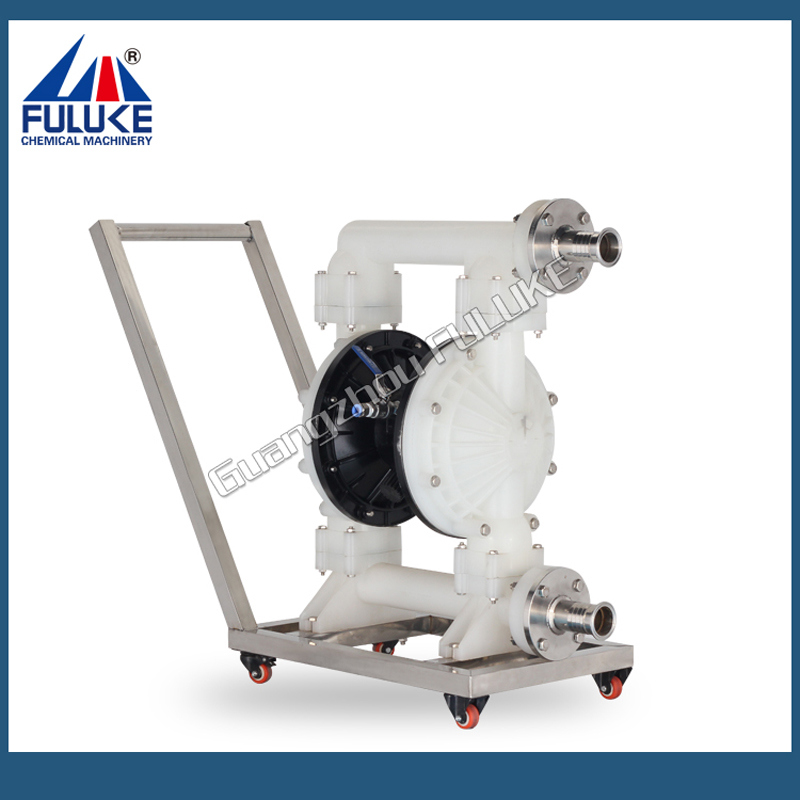

1 Pneumatic diaphragm Pump
The diaphragm pumps are CE certified .
Pump body is PVDF ,diversity of materials are available.
Bolt joint design provides even sealing pressure for optimal performance.
Diaphragm,ball and ball seat adopt imported materials with longer service life.
Due to their pneumatic motor, they could be used in potentially explosive areas
Diversity of material,no rotating parts,applicable to various erosive situations.
Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.

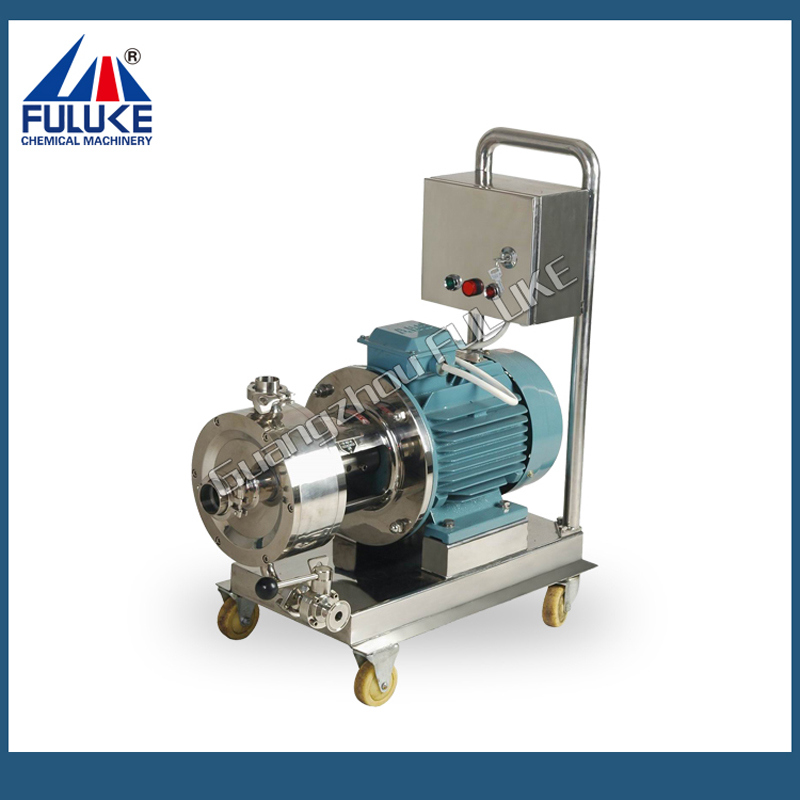

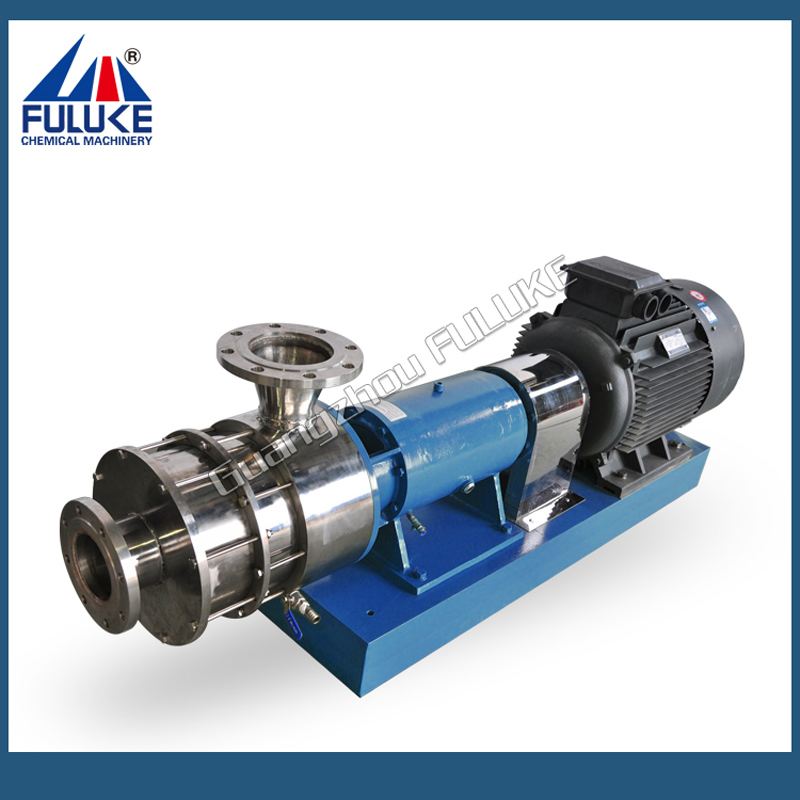

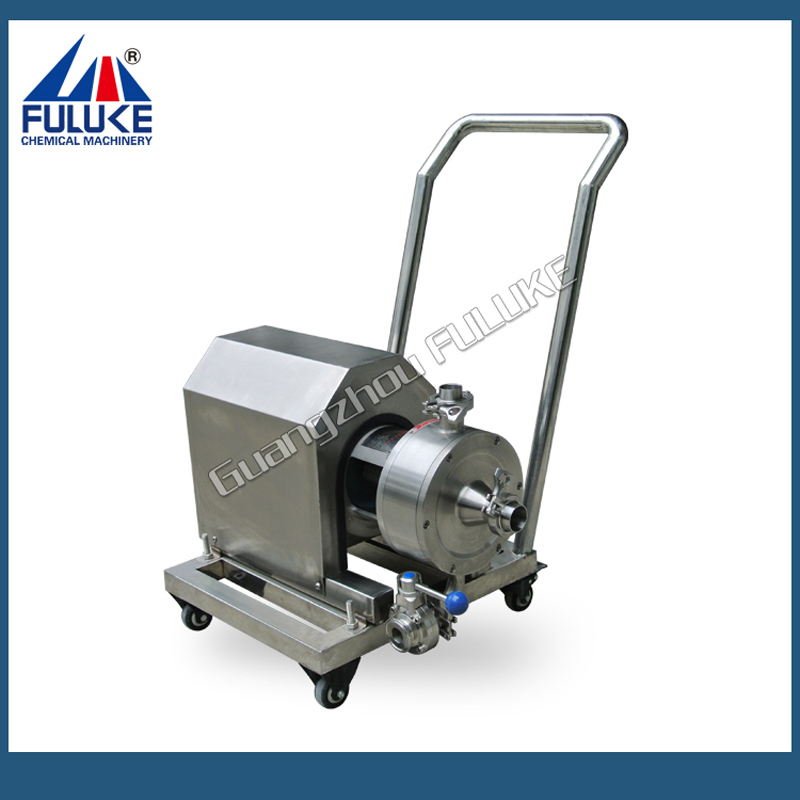

2 Emulsifier Pump
3 FWB Carn Rotor Pump
4 Screw Pump
Technology parameter:
| Model | Displacement Hundred Revolution (L) | Suggested speed adjusting range (rpm) | Corresponding flow rate (L/H) | Motor Powder (kW) |
| FWB-3 | 3 | 200-500 | 300-800 | 0.55 |
| FWB-6 | 6 | 200-500 | 650-1600 | 0.75 |
| FWB-8 | 12 | 200-500 | 850-2160 | 1.5 |
| FWB-12 | 20 | 200-500 | 1300-3200 | 2.2 |
| FWB-20 | 30 | 200-400 | 2100-5400 | 3 |
| FWB-30 | 30 | 200-400 | 3200-6400 | 4 |
| FWB-36 | 36 | 200-400 | 3800-7600 | 4 |
| FWB-52 | 52 | 200-400 | 5600-11000 | 5.5 |
| FWB-66 | 66 | 200-400 | 7100-14000 | 7.5 |
| FWB-78 | 78 | 200-400 | 9000-18000 | 7.5 |
| FWB-100 | 100 | 200-400 | 11000-22000 | 11 |
| FWB-135 | 136 | 200-400 | 15000-30000 | 15 |
| FWB-160 | 160 | 200-400 | 17000-34000 | 18.5 |
| FWB-200 | 200 | 200-400 | 21600-43000 | 22 |
Package:
a. Small machine and equipment parts will be packed with PE roll,
b. Heavy equipment will be packed with standard wooden case.
c. As customer's requests
Delivery: 20-40 working days
Guangzhou Fuluke Cosmetic Chemical Machinery Co., Ltd. is a professional manufacturer of cosmetics making and packing machinery with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries.
The following are our products:
1) water treatment equipment (RO system)
2) Filling machines
3) Vacuum emulsifying mixer
4) Perfume maker
5) Anti-corrosion equipment and inkjet printer
6) Liquid filling and screw-cap sealing machines
7) storage Tanks
8) Laboratory equipment
9) Filter equipment
After sales service
1. Warranty service:
The above machine which we supply it to you, we can give you 15 month after sales warranty.
2. Maintenance services:
Any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
3. Lifelong services:
Tips: If we have parts in our warehouse,we will send within 24 hours, if we don't have it in our warehouse, we will manufacture it with our fast time.
we provide lifelong services for all the products we sold out, and supply the spare parts with discount price . Any damage except the wrong operation during warranty period is repaired freely. We guarantee that will send it to customer by DHL, Fedex, UPS etc.
