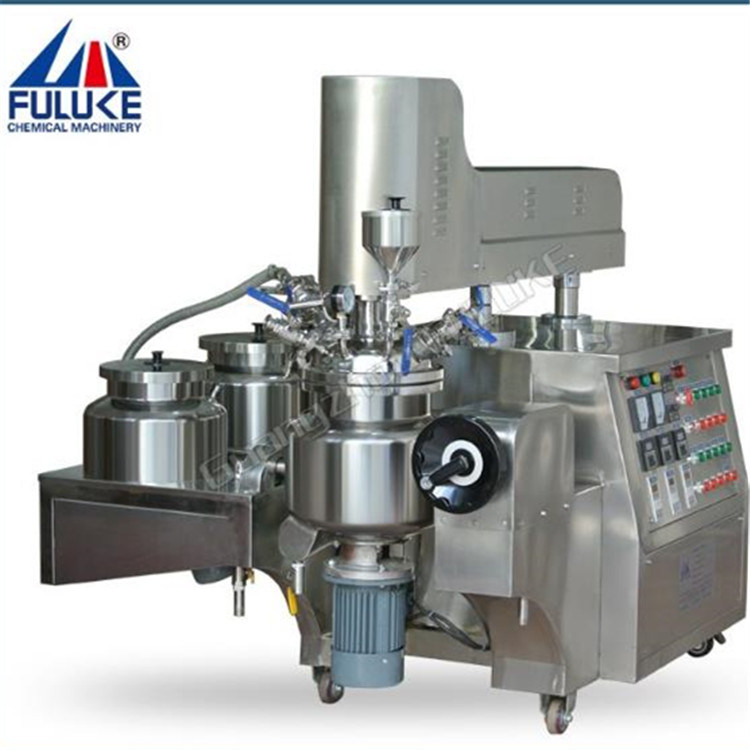

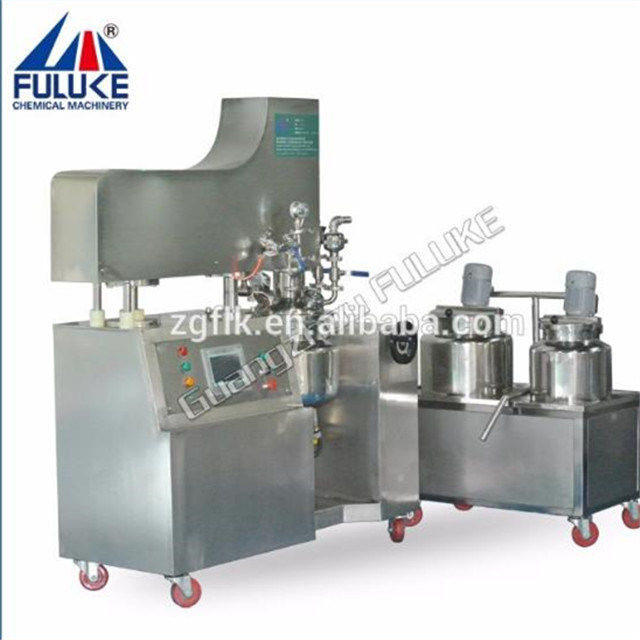

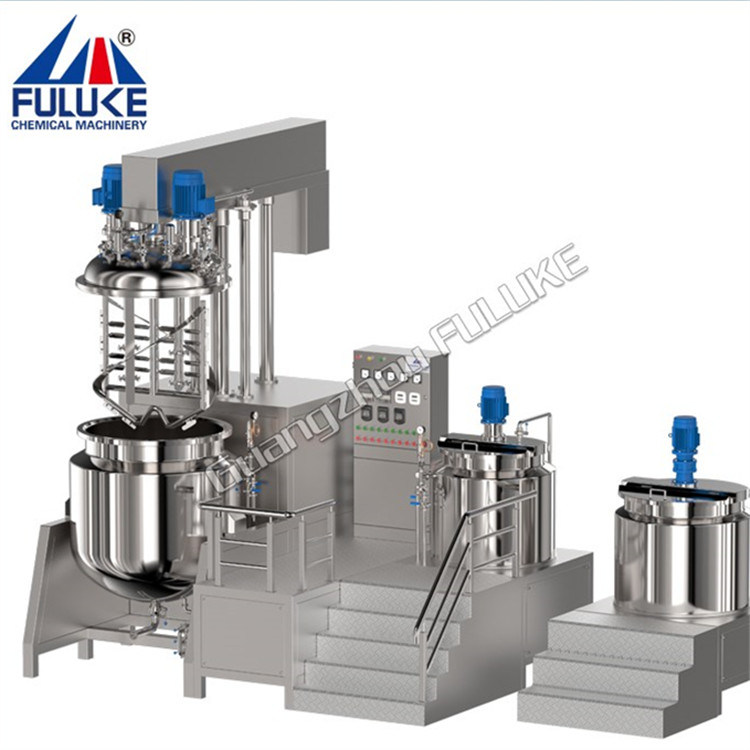

FMB vacuum emulsifying mixer machine
1. FMEvacuum emulsifying machine is specially designed adopting advanced technology of oversea according to
the cosmetic and ointment production technology.
2.The machine is made up of pretreatment boiler (oil boiler, water boiler), vacuum emulsification blending boiler,
vacuum pump , pouring-out system, electric control system or steam heating system and workable .
3. The function of the machine including mixing, homogenizing, heating, emulsifier etc. it's the best choose for making
high grade cosmetic cream, lotion etc.
That is very important
Frequency speed control :Siemens
Stirring scrap Material:SUS316L ,Scrap material PTFE/Teflon
Motor : Siemens or ABB
Touch screen : Siemens
ABB brand or Siemens Motor
Frequency control Siemens
homogenizer motor : ABB or Siemens Siemens touch screen and PLC ( button control )
Multiple Choice
Fixed type or lift type
heating method:steam or electric
cotrol:Seimens PLC touch screen or button
homogenizer:bottom or upper
out products:pump or tilting
The reasons for you
1.For heating system(steam or electric heating)
(1)steam heating save cost in the future.The electric heating save cost now
(2)steam heating temperature can reach to 170.4degrees,the electric heating can reach to 100degrees.
(3)steam heating up fast.
2.For homogenizer(upper homogenizer or bottom homogenizer )
(1)upper homogenizer beautiful ,
(2)bottom homogenizer easy cleaning
(3)bottom homogenizer easy maintain
(4)upper homogenizer,bottom seals better that bottom homogenzer
(5)upper homogenizer speed 3000rpm,bottom homogenizer speed3600rpm.
3.control (touch screen control or buttom control )
(1)Buttom control save cost .
(2)According to country habit
(3)buttom control easy maintain
(4)PLC touch screen control intelligentize
4.fixed type or lift type
(1)save cost, fixed type
(2) Small footprint ,lift type
Main technical parameter
model | Effective capacity | emulsify | agitator | total power | |||
kW | r/min | kW | r/min | Electric heating | Steam heating | ||
FME-10 | 10 | 0.55 | 0-3600 | 0.37 | 0-85 | 7 | 2 |
FME-20 | 20 | 0.75 | 0-3600 | 0.37 | 0-85 | 9 | 3 |
FME-50 | 50 | 2.2 | 0-3600 | 0.75 | 0-80 | 12 | 4 |
FME-100 | 100 | 4 | 0-3500 | 1.5 | 0-75 | 24 | 9 |
FME-150 | 150 | 4 | 0-3500 | 1.5 | 0-75 | 24 | 9 |
FME-200 | 200 | 5.5 | 0-3300 | 1.5 | 0-65 | 28 | 10 |
FME-300 | 300 | 5.5 | 0-3300 | 2.2 | 0-65 | 32 | 12 |
FME-500 | 500 | 7.5 | 0-3300 | 4 | 0-60 | 50 | 16 |
FMB-200 | 200 | 5.5 | 0-3300 | 1.5 | 0-65 | 28 | 10 |
FMB-300 | 300 | 5.5 | 0-3300 | 2.2 | 0-65 | 32 | 12 |
FMB-500 | 500 | 7.5 | 0-3300 | 2.2 | 0-60 | 50 | 16 |
FMB-800 | 800 | 10 | 0-3300 | 4 | 0-60 | 65 | 25 |
FMB-1000 | 1000 | 10 | 0-3000 | 5.5 | 0-60 | 75 | 29 |
FMB-2000 | 2000 | 14 | 0-3000 | 7.5 | 0-60 | 92 | 38 |
FMB-3000 | 3000 | 18 | 0-3000 | 10 | 0-60 | 120 | 43 |
FMH-1000 | 1000 | 10 | 0-3000 | 5.5 | 0-60 | 75 | 29 |
FMH-2000 | 2000 | 14 | 0-3000 | 7.5 | 0-60 | 90 | 38 |
FMH-3000 | 3000 | 18 | 0-3000 | 7.5 | 0-60 | 120 | 43 |
FMH-4000 | 4000 | 20 | 0-3000 | 11 | 0-60 | 140 | 50 |
FMH-5000 | 5000 | 22 | 0-3000 | 15 | 0-60 | 155 | 63 |
(The parameters are for reference only,the product depend on actual items.) |
FAQ:
1.Are you a company?or a factory?
We have a factory, our factory is in Yangzhou,jiangsu province.And we have the exhibition room in Guangzhou,Guangdong province.
2.I am not in China,how can I insure your quality?
Our quality is built on good quality material,imported from Japan,Germany etc.We have passed ISO9001,CE,GMP.We have made machine for many years,we have much experience to help our customers business better.We have the most profession engineering team.We only do the high quality product.You can put your heart down about the quality.
3.How is your price?
We believe that the price is not uniqueness,quality decides everything.Using the same materials,we can make better machine.What price,what goods.
4.What else you can do for customers?
We believe that we are in the same team with our customers to attain win-win.So we are not just a machinery producer,we can provide a complete project,also we can help customers to solve the problem.
5.This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
We are alibaba legitimate certification company (VIP), and we support payment terms: L/C.Escrow, to ensure your safety.
6.There are too many models, i don't know which one to choose.
Welcome to contact us through TradeManager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours.
7.How to ensure that I received the machine undamaged?
At first , our package is standard for shipping, before sign in, please be sure product undamage, otherwise, pls contact with us within 2days, we've bought insurance for you, we or shipping company will be responsible!
