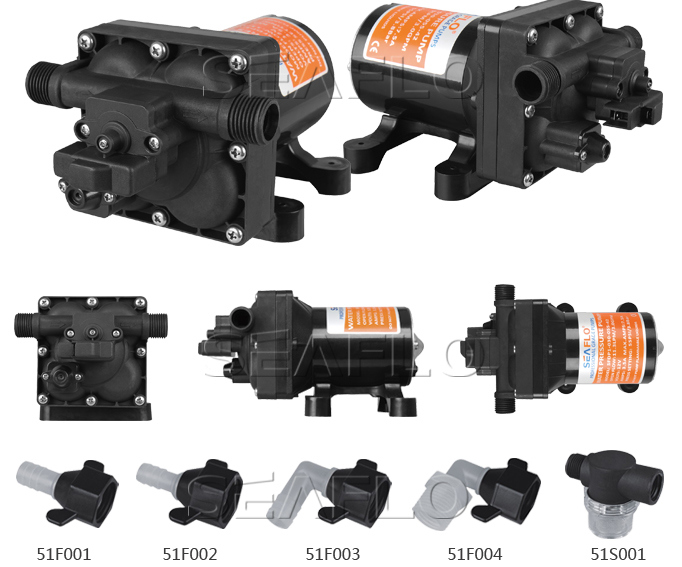

High Quality Electric Water Pumps, Electric Pump Self Priming Pump For Sea Water
11.3LPM/3.0GPM 55PSI
Description
Run dry without damage (Run Dry Capability)
Quick-connect plug-in ports for easy installation (Hose Kit Included)
Self-priming
Ignition & Thermally Protected

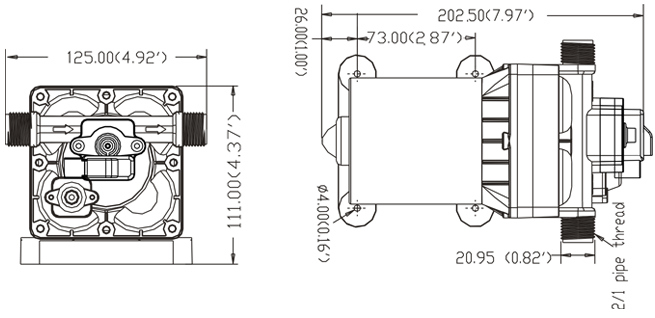

Specifications
How a Diaphragm Pump Works:
1. The pump is driven by an AC or DC motor
2. In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet
3. The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity
Application:
1. Yacht / RV/Caravan pressurized water system
2. Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer)
3. Clean machine, Humidifier, Water purification, Medical apparatus
4. Food beverage filling & liquid transfer
5. Any other pressurization system
Technical Data:
| Motor Voltage | 12/24V DC |
| Type | 4 chamber diaphragm pump, self priming, capable of being run dry |
| Mode | Demand or bypass |
| Certifications Option | CE Approval |
| Liquid Temperature | 140°F (60°C) Max. |
| Priming Capabilities | 6 feet (1.8 m) |
| Max Pressure | 55psi (3.8bar) |
| Max Flow rate | 11.3lpm (3.0gpm) |
| Thermal Overload Protected | Start working when temperature reach 90°C(+-10%) |
| Inlet/Outlet Ports | 10/13mm pyramid hose barb, 13mm angle hose barb, 1/2 FNPT thread filter for your choice. |
| Duty Cycle | Intermittent (under different pressure the continuous working time will also be different) |
| Motor options | 2 pin connector |
| On/off switch |
| Model | Switch | GPM/LPM | PSI/BAR | Max Draw (A) | Valves | Diaphragm | Ports | Voltage | Wire Connections |
| SFDP1-030-055-42 | Demand | 3.0/11.3 | 55/3.8 | 7.5 | EPDM | Santoprene | 1/2"-14 MNPT | 12V | 2-Pin/Leads |
| SFDP2-030-055-42 | Demand | 3.0/11.3 | 55/3.8 | 4.0 | EPDM | Santoprene | 1/2"-14 MNPT | 24V | 2-Pin/Leads |
