Hot Sale 12 V Mini Food Grade Beverage Transfer Pump

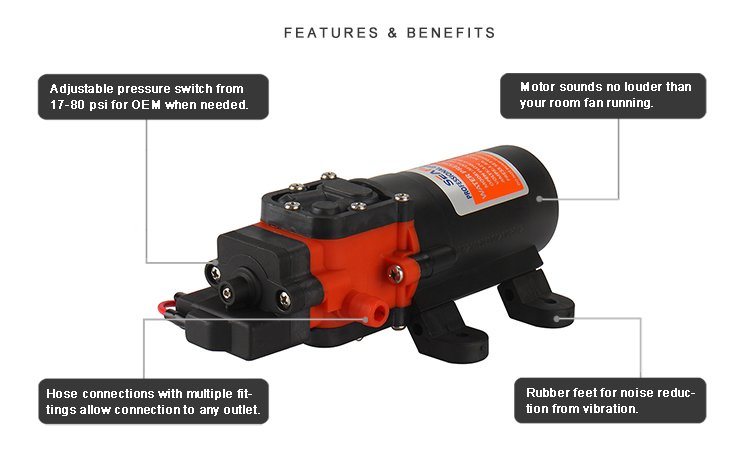

The Features&Benefits

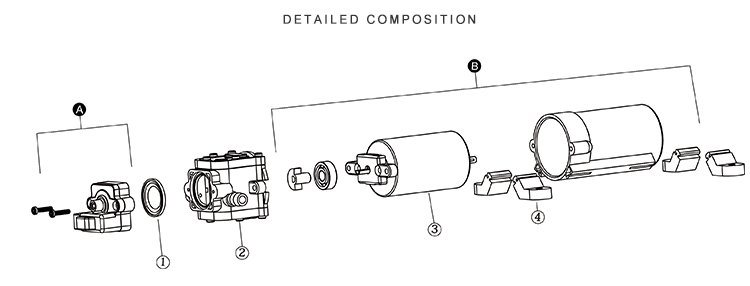

How a Diaphragm Pump Works:
The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve
chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal
cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in
a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet,
through the various valve chamber check valves to the outlet.

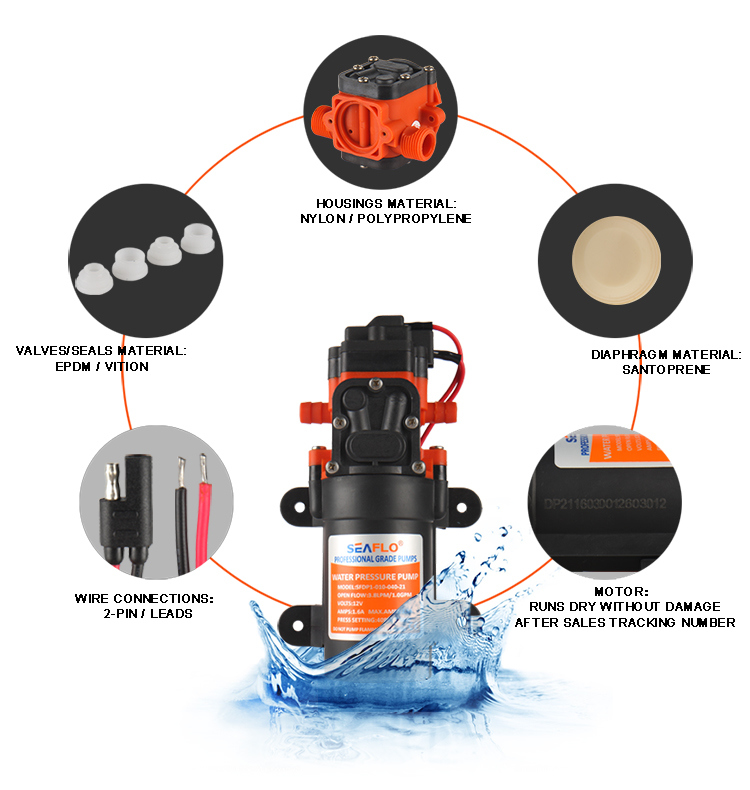

Details of this product

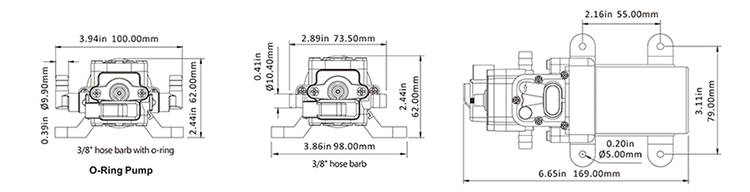

Technical Data
The volume of flow is determined by several factors including: The number and size of the pump chambers, cam offset, operating pressure, fluid viscosity
| Motor Voltage | 12/24V DC |
| Type | 2 chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Mode | Demand |
| Certifications Option | CE Approval |
| Liquid Temperature | 110°F (43°C) Max. |
| Priming Capabilities | 4 feet (1.2 m) suction lift |
| Max Pressure | 80psi (5.5bar) |
| Max Flow rate | 3.8lpm (1.0gpm) |
| Inlet/Outlet Ports | 3⁄8" hose barb |
| Duty Cycle | Intermittent |
| Leads | 18 AWG, 13.78" long with 2-pin connector/ lead |
STANDARD PUMP CONFIGURATIONS
| Model | GPM | Switch | Amps | PSI | Valves | Diaphragm | Ports | Voltage | Wire Connections | |
| SFDP1-010-040-21 | 1.0 GPM | Demand | 4.0 MAX | 40 | EPDM | Santoprene | 3/8" Barb | 12V | 2-Pin/Leads | |
| SFDP2-010-040-21 | 1.0 GPM | Demand | 2.0 MAX | 40 | EPDM | Santoprene | 3/8" Barb | 24V | 2-Pin/Leads |

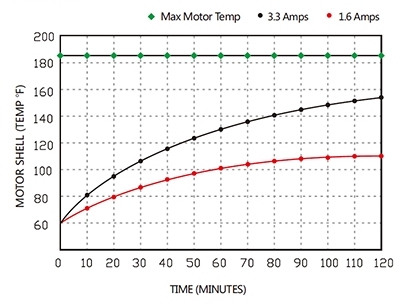

Performance
Application
1. Agriculture/Yacht / RV/Caravan pressurized water system
2. Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
3. Cleaning machine, Humidifier, Water purification, Medical apparatus
4. Food beverage filling & liquid transfer
5. Any other pressurization system
Backed SEAFLO's 1-Year Warranty!
Colors: Black or required
If you are interested, pls contact us!!!
