Triple Effect Energy Chinese Herb Pharmaceutical Saving Concentrator/Evaporator
Summary:
Vacuum concentration tank is mainly composed by concentration tank main tank, condenser, vapor-liquid separator, cooler and liquid receive barrel. The cooler is coil pipe type. It is widely used in the pharmaceutical, food, chemical and other industrial of the operation for liquid concentration, alcohol recovery and simple reflux extraction. All the equipment contact part material use high quality stainless steel and have high anti-corrosion performance. It is very durable and meet GMP certification requirement.
Technical Parameter:
Machine Photos:
Single Effect Concentrator
Double Effect Concentrator

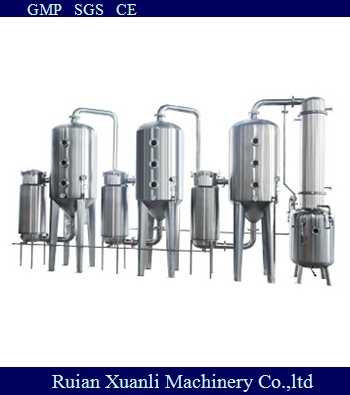

Three Effect Concentrator
Project Solution:

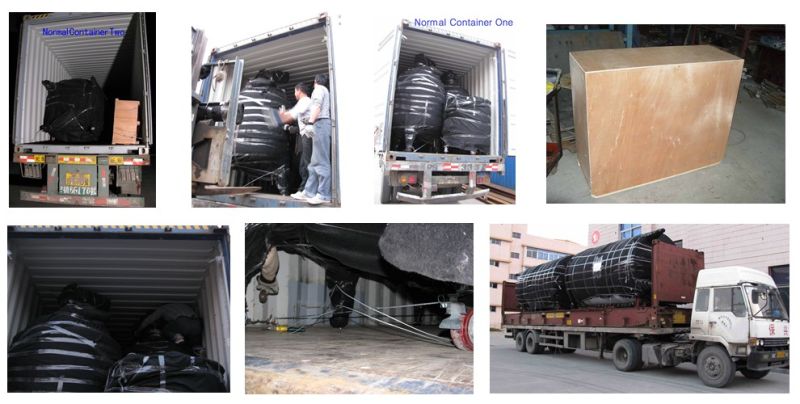

Packing and Shipment:
Summary:
Vacuum concentration tank is mainly composed by concentration tank main tank, condenser, vapor-liquid separator, cooler and liquid receive barrel. The cooler is coil pipe type. It is widely used in the pharmaceutical, food, chemical and other industrial of the operation for liquid concentration, alcohol recovery and simple reflux extraction. All the equipment contact part material use high quality stainless steel and have high anti-corrosion performance. It is very durable and meet GMP certification requirement.
Technical Parameter:
| Model | JN50 | JN100 | JN200 | JN300 |
| Steam Pressure MPa | <0.25 | |||
| Evaporate Amount kg/h | 20 | 40 | 60 | 80 |
| Heating area m2 | 0.4 | 0.6 | 0.8 | 1.1 |
| Condensed area m2 | 1.2 | 1.7 | 2.4 | 3.0 |
| Cooling area m2 | 0.25 | 0.35 | 0.45 | 0.6 |
| Liquid receive barrel volune L | 15 | 45 | 60 | 76 |
| Energy consumption kg/h | 23 | 46 | 70 | 92 |
| Vacuum degree MPa | -0.08 | |||
| Tank type | First grade pressure tank | |||
| Weight kg | 410 | 470 | 605 | 715 |
| Overall dimension mm L | 1200 | 1350 | 1700 | 1800 |
| W | 600 | 750 | 800 | 950 |
| H | 2200 | 2200 | 2700 | 2850 |
| Model | JN500 | JN700 | JN1000 | JN2000 |
| Steam Pressure MPa | <0.25 | |||
| Evaporate Amount kg/h | 100 | 130 | 160 | 350 |
| Heating area m2 | 1.2 | 2.0 | 2.5 | 5.5 |
| Condensed area m2 | 3.2 | 3.6 | 4.5 | 14 |
| Cooling area m2 | 0.7 | 0.85 | 1.1 | 3 |
| Liquid receive barrel volune L | 100 | 125 | 140 | 185 |
| Energy consumption kg/h | 115 | 150 | 185 | 403 |
| Vacuum degree MPa | -0.08 | |||
| Tank type | First grade pressure tank | |||
| Weight kg | 862 | 1015 | 1250 | 2600 |
| Overall dimension mm L | 2100 | 2400 | 2390 | 2730 |
| W | 1200 | 1300 | 1300 | 1500 |
| H | 3400 | 3400 | 3720 | 4700 |
Machine Photos:

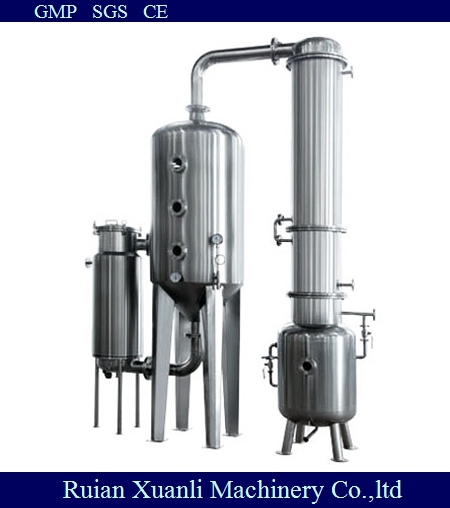

Single Effect Concentrator

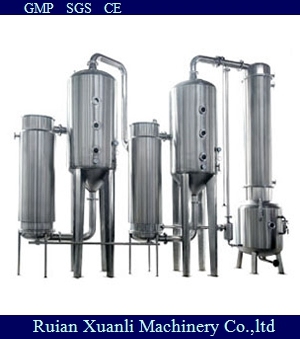

Double Effect Concentrator
Three Effect Concentrator

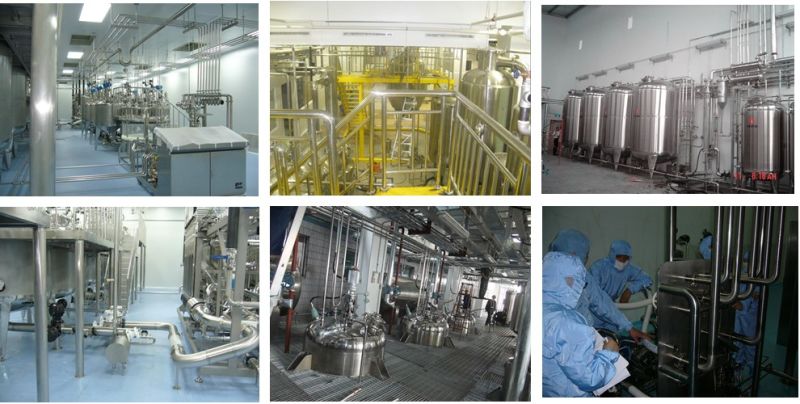

Project Solution:
