20l fermentor reactor
20l fermentor reactor
Summary:
This equipment is used in the production process of hydrolysis, neutralization, crystallization, distillation, evaporation and other processes in medicine, chemical, food and light industries. It is acid resistance, high temperature resistance, wear resistance, and corrosion resistance. It can also be produced as per users' requirements.
Features:
Material: SUS304 or S.S.316L
Mixing type: anchor type, frame type or paddle type
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing equipment: Mechanical sealing
Heating or Cooling: jacket, half pipe or coil pipe
Heating way: steam heating, electrical heating or heat conduct oil.
Volume: can be made as per customer requirements
Measure: can be made as per customer requirements
Technical Parameter:
| FYG100 | FYG200 | FYG500 | FYG1000 | FYG1500 |
Volume L | 100 | 200 | 500 | 1000 | 1500 |
Diameter mm | 500 | 600 | 800 | 1000 | 1200 |
Tank Pressure MPa | 0.25-0.5 | ||||
Jacket Pressure MPa | 0.30 | ||||
Motor Power kw | 1.1 | 1.5 | 2.2 | 4.0 | 4.0 |
Agitation Speed r/min | 85 | ||||
Tank Type | First Grade Pressure Tank |
| FYG2000 | FYG2500 | FYG3000 | FYG4000 | FYG5000 |
Volume L | 2000 | 2500 | 3000 | 4000 | 5000 |
Diameter mm | 1200 | 1400 | 1400 | 1500 | 1600 |
Tank Pressure MPa | 0.25-0.5 | ||||
Jacket Pressure MPa | 0.30 | ||||
Motor Power kw | 4.0 | 5.5 | 5.5 | 5.5 | 7.5 |
Agitation Speed r/min | 85 | ||||
Tank Type | First Grade Pressure Tank |

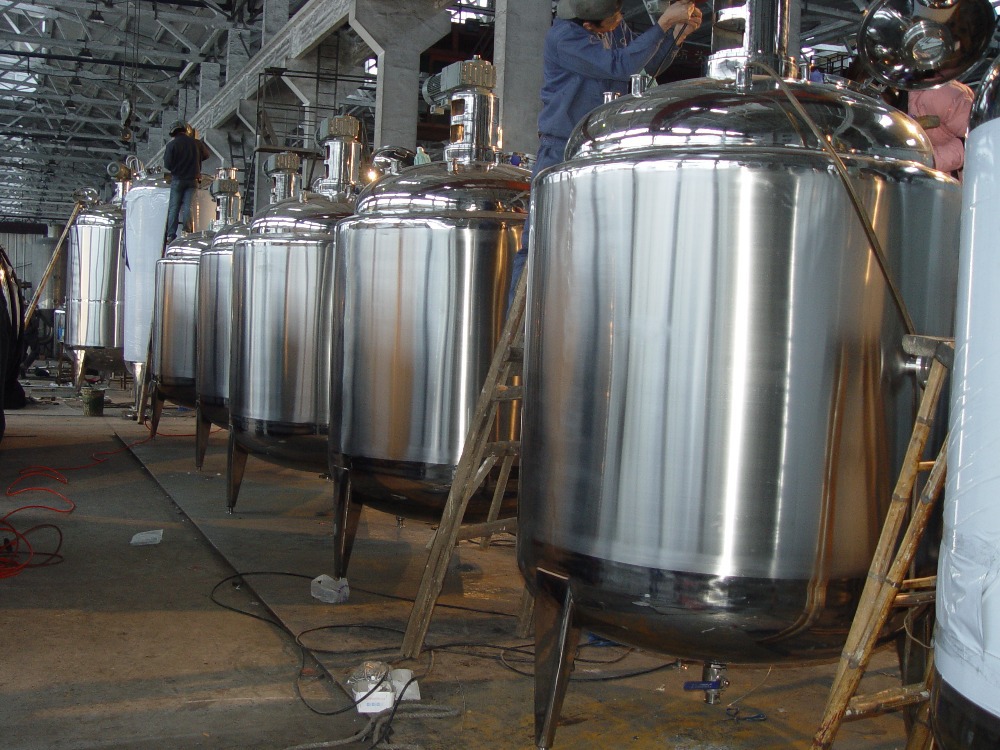

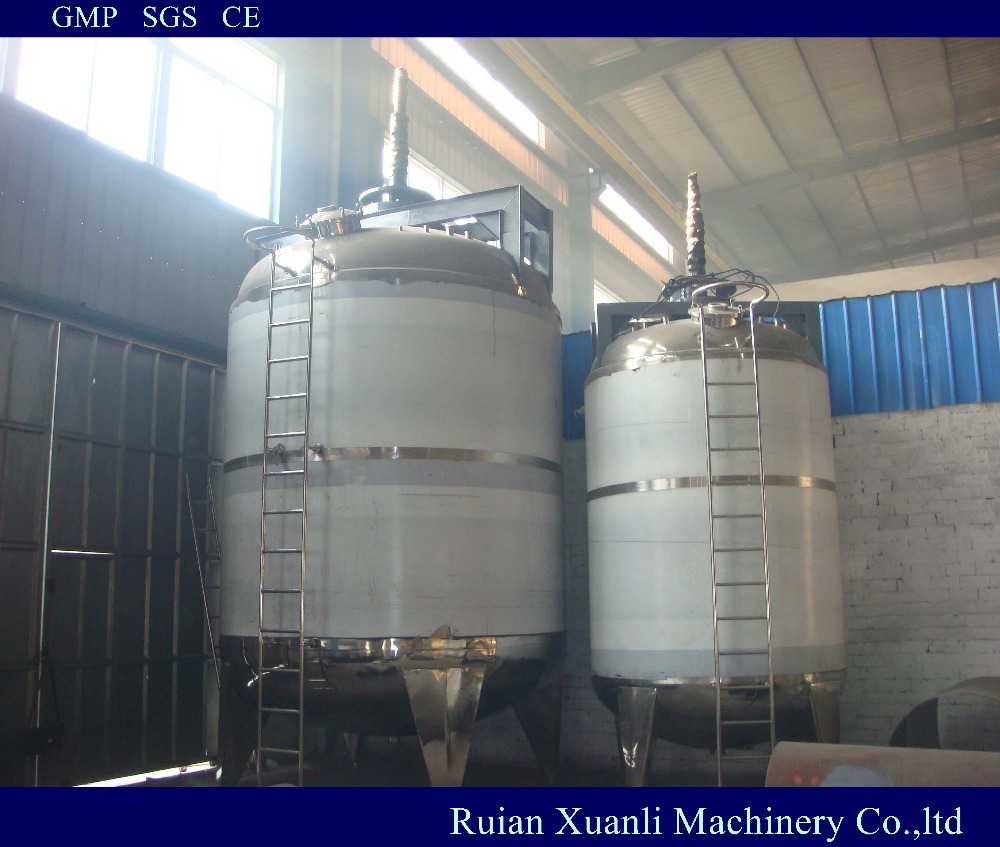

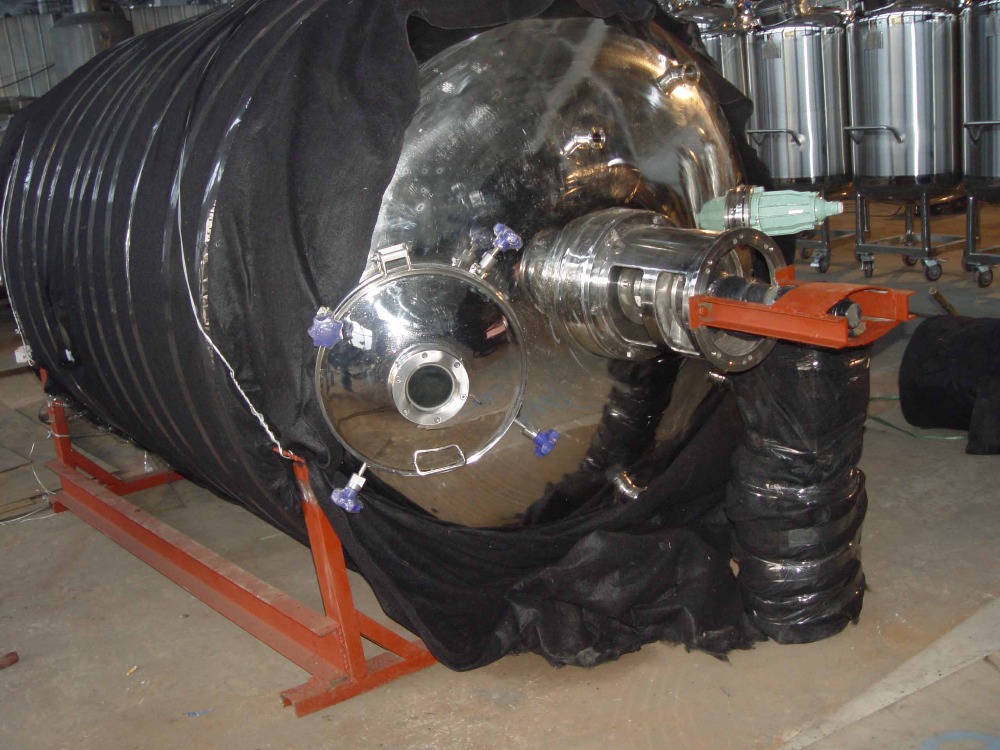

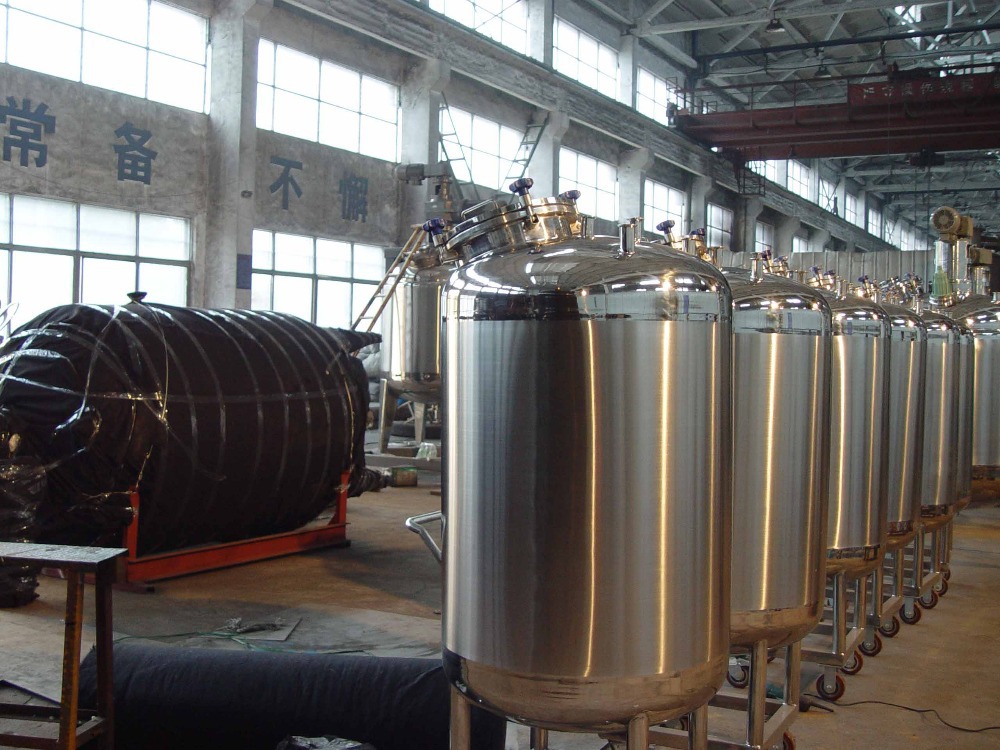

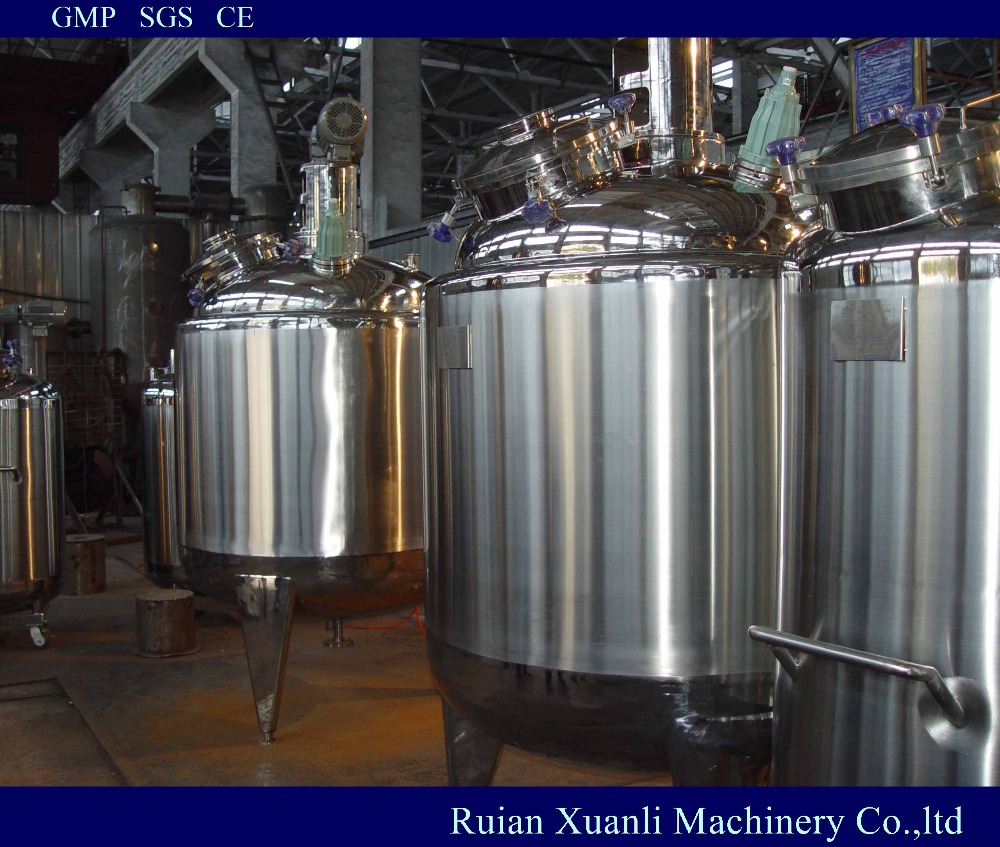

Machine Photo:
Project Show Case:
1. Professinal tank treatment and production workers.
2. Any questions regarding our tanks will be replied within 24 hours by our export deparment.
