Features of 5BY-5B Seed Coating Machine:
The 5BY-5B seed treater is controlled by the dosing pump, it can adjust the quantity and the ratio of medicine/ seed, so it is easy operate, and it can clean itself automatically.
Application of 5BY-5B Seed Treater Seed Coating Machine:
The 5BY-5B series seed coating machine is a good choice for coating seed. It applies for various crops, such as seed of wheat, barley, maize, sorghum, soybeans, cotton, vegetables, fruits etc.
Working Principle of 5BY-5B Seed Coating Machine:
Seeds can be continuously fed into inlet through feeding bucket, at the same time quantitative medicine will be atomized by the high speed centrifugal rotary disk and adhere to the surface of seeds, then the seeds will be completely mixed by the soft auger in the stainless steel cylinder.
High speed centrifugal rotary disk (for atomizing the liquid medicine) and large stainless steel cylinder (for mixing by auger rolling), can have a good coating effect.

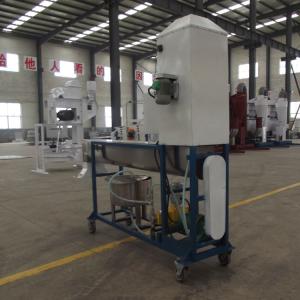

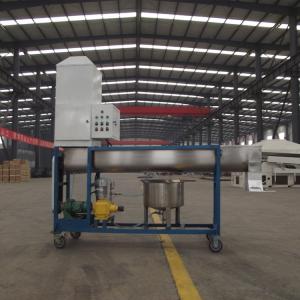

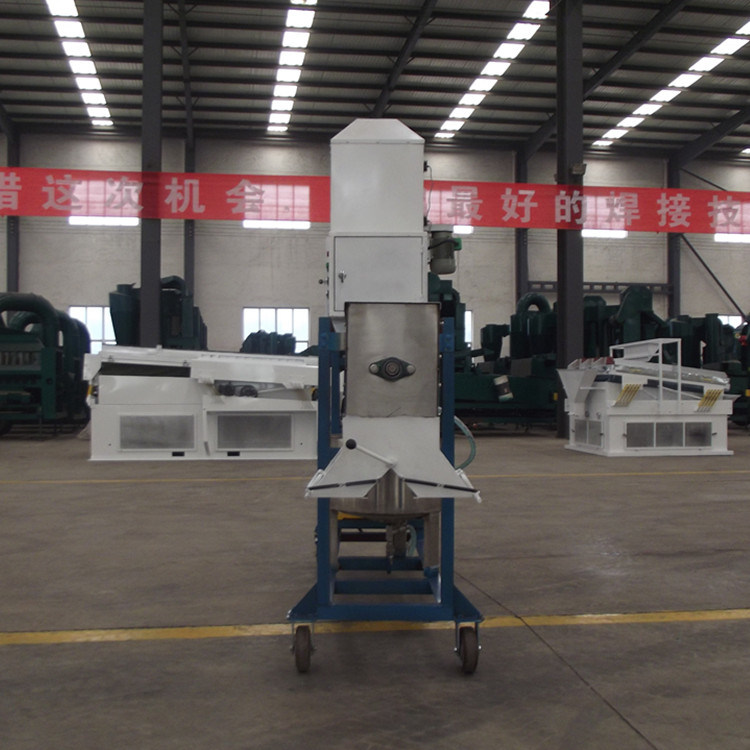

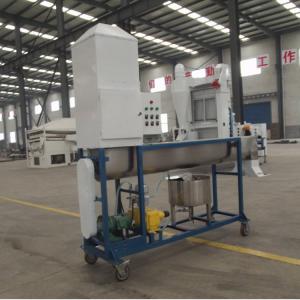

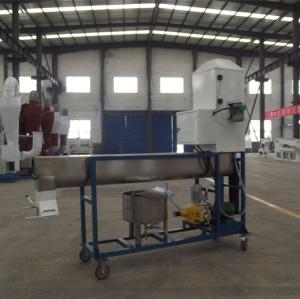

Photo reference of 5BY-5B Seed Coating Machine:
Type | Capacity (t/h) | Power (kw) | Weight (kg) | Dimension (mm) | Agent Supply Model |
5BY-2 seed treater | 2 | 1.47 | 200 | 1600× 800× 1500 | Spoon |
5BY-5A seed treater | 5 | 6 | 800 | 2200× 900× 2500 | Spoon |
5BY-5B seed treater | 5 | 2.3 | 700 | 2150 × 800× 2400 | Dosing Pump |
