Australian High Standard Air Screen Cleaner /Bulk Grain Cleaner

Technical Feature

Tianjin, China

50 Sets Per Month

L/C, T/T, D/P, Western Union, Paypal, Money Gram

Coffee Processing Air Screen Cleaner Machinery

20 Ton/Hour(Count on Wheat)

5xzd-15AC

Send Standard Inquiry

Add Inquiry List

$0~16

PRIMARY PARAMETERS

Model NO.

5XZD-15AC

Guarantee

One Year

Delivery Date

25 Days

Mobitlity

Two Units Big Wheels, Excellent Mobility

Application

Wheat, Bean, Millet, All Type Grain Cleaning

Trademark

SYNMEC

Transport Package

Usually Wooden Case or as to Order

Specification

ISO9001-2008, TUV, SGS

Origin

China

HS Code

8437109000

DETAIL DESCRIPTION

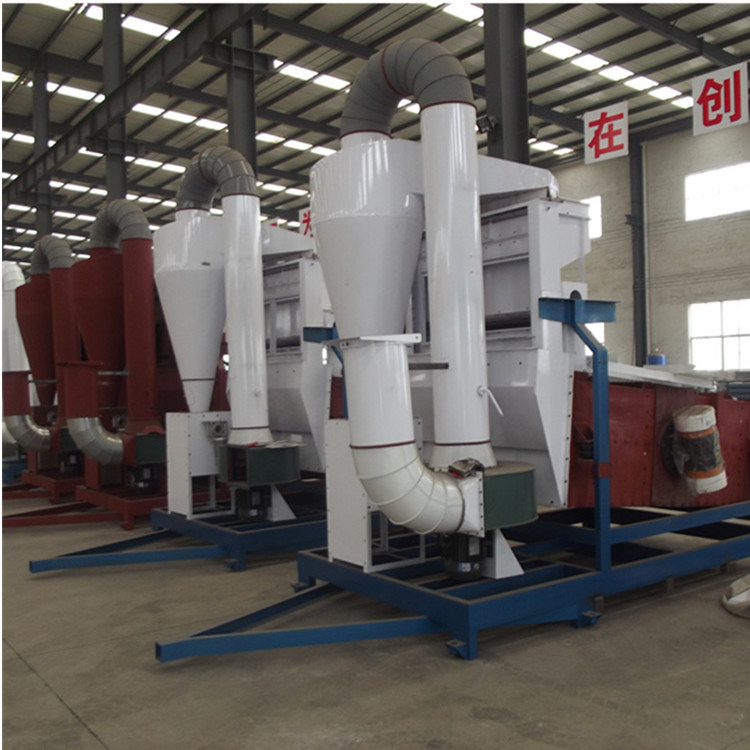

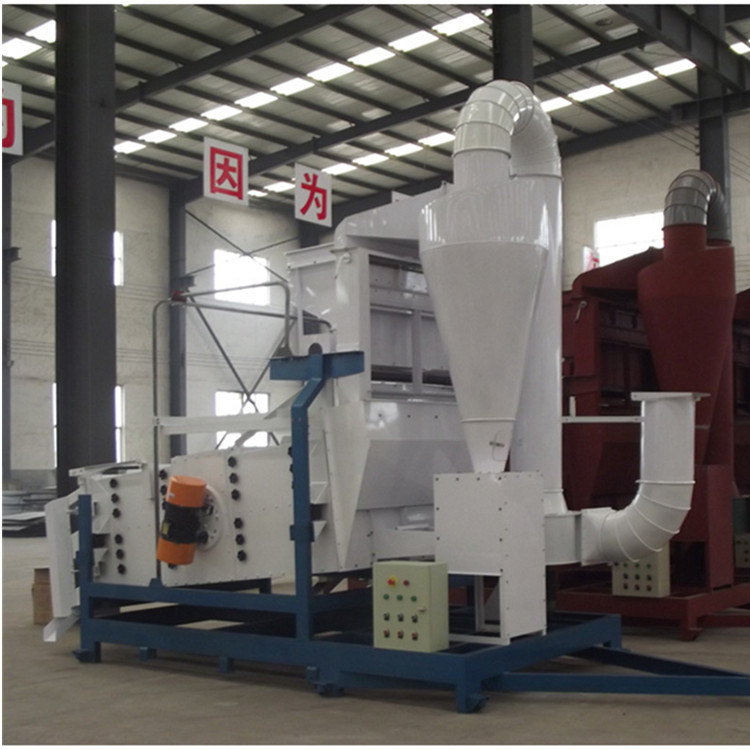

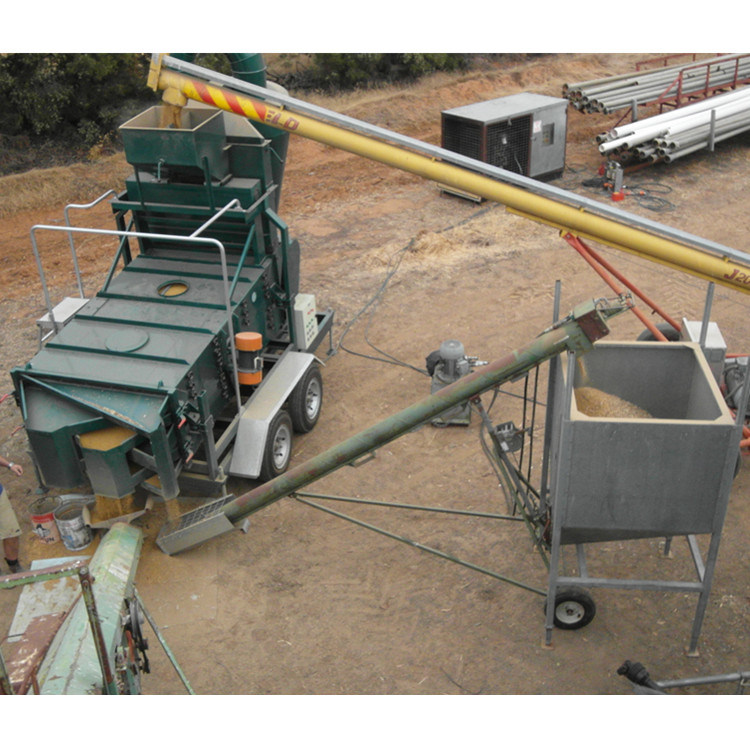

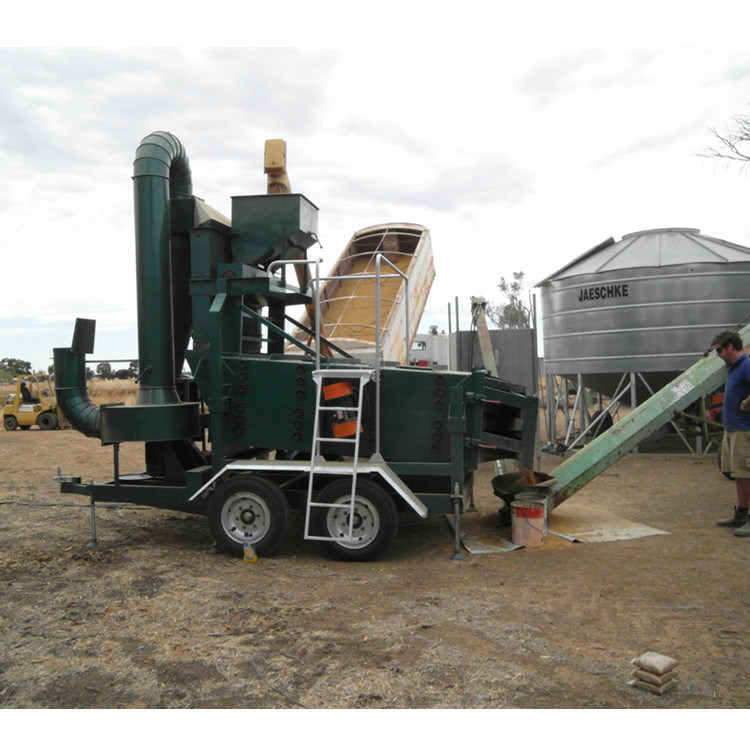

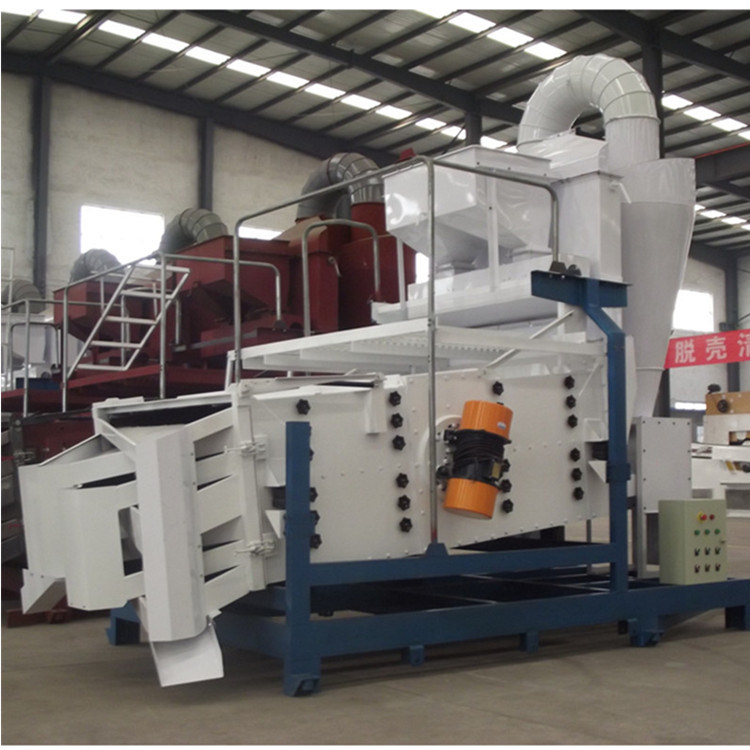

Australian High Standard Air Screen Cleaner

Capacity: 20 Ton/Hour(Count on Wheat)
Model: 5XZD-15AC
Feature :Two isolated 3 layers sieving trunks lead double capacity
Color: Green or White
Guarantee: One year

Brief introduction

The 5XZC-25 Grain Cleaning Machine equipped with Double Air Cleaning Systems and Double Cyclone Dust Separators, and it has the largest capacity, is professionally used for cleaning and grading grains / seeds.

Application

Used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.

Working principle

Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds. The sieves has Rubber Balls inside for the self-cleaning.

Parameter

Model No.	Capacity(T/H)	Power(KW)	Weight(T)	Sieve Size	Dimensions(MM)	Remarks
5XZC-5DH	5	7.74	1.6	2000×1000	4970×1900×3100	With cyclone dust separator
5XZC-7.5D	7.5	10.1	1.7	2400×1250	5150×2160×3500
5XZC-15	10	10.5	1.8	2400×1500	5400×2350×3500
5XZC-25	20	20.95	2.9	2400×1800	5820×2650×3600	Double Air Cleaning System
5XZD-15AC	20	20.9	3	2400×1800	5140×2000×3200	Two isloated sieveing trunks
