Agricultural Machinery Grain Processing Machine/ Maize Dryer

agricultural machinery grain processing machine/ maize dryer Why Choose KINKAI Heat Pump?Why We can stand in this area for 10 years?give you the best sevicesprovide you the most affordable product with good quality.KINKAI Dehydrator Use for :Dry veg

Technical Feature

  • Guangzhou, China
  • 2000 Units/Year
  • L/C, T/T, Western Union
  • Dryer
  • 380V
  • 30kw
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$25~500

PRIMARY PARAMETERS

Model NO.
Double JK12RD
Weight
480kgx2
Rated Current
60A
Heating Capacity
84kw
Cooling Capacity
64kw
Dehumidify
100L/H
Temperature Range
8-75c
Noise
75dB(a)
Function
Heating/ Cooling/ Dehumidify
Trademark
KINKAI
Transport Package
Unit Pack in Plywood
Specification
3500kg per batch
Origin
Guangdong, China(Mainland)
HS Code
8419310000

DETAIL DESCRIPTION

agricultural machinery grain processing machine/ maize dryer

Why Choose KINKAI Heat Pump?
Why We can stand in this area for 10 years?
give you the best sevices
provide you the most affordable product with good quality.

Agricultural Machinery Grain Processing Machine/ Maize Dryer

KINKAI Dehydrator Use for :

Dry vegetables like  Radish, lettuce, pumpkin, carrots, spinach, cassava etc
Dry fruits like  Apple, lemon, mango slices, dried longan, dried longan etc
Dry meat: fish, Sausage, jery beef, duck, ham ect
Others it can dry noodle, wooden, stick incense, herbs, floers ect.

KINKAI Dehydrator Functions:
Heating drying
Cooling drying
Heating +dehumidify drying

Agricultural Machinery Grain Processing Machine/ Maize Dryer



What is Heat Pump Dryer?
A device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in a refrigerator.


How it works?
Heat pump dryer is use of reverse Carnot principle .With free air to absorb heat and transfer it to the drying chamber, drying room temperature to achieve improved, with the appropriate humidity and dehumidification equipment to achieve dry materials. heat pump dryer Compressor - heat exchangers - Chokes - heat sink (outside the machine) - Compressor and other devices constitute a refrigerant cycle system. Under the action of the compressor in the refrigerant circulating in the system flow, it is done in the gaseous booster compressor heating process (temperature up to 100 ºC), releasing it into the machine dry in room temperature air heated by the heat, while they have been and converted to liquid cooling flow, when it runs out machines, liquid absorbs heat quickly evaporates once again transformed into a gaseous state, while the temperature dropped to minus 20 ºC-30 ºC, then the air around the heat sink will continuously transferring heat to the refrigerant. Refrigerant continuous cycle to achieve the heat in the air transport to the drying room heating room air temperature to achieve the purpose of dry material.
Agricultural Machinery Grain Processing Machine/ Maize Dryer

6 Normal Models of KINKAI Heat Pump Dryer

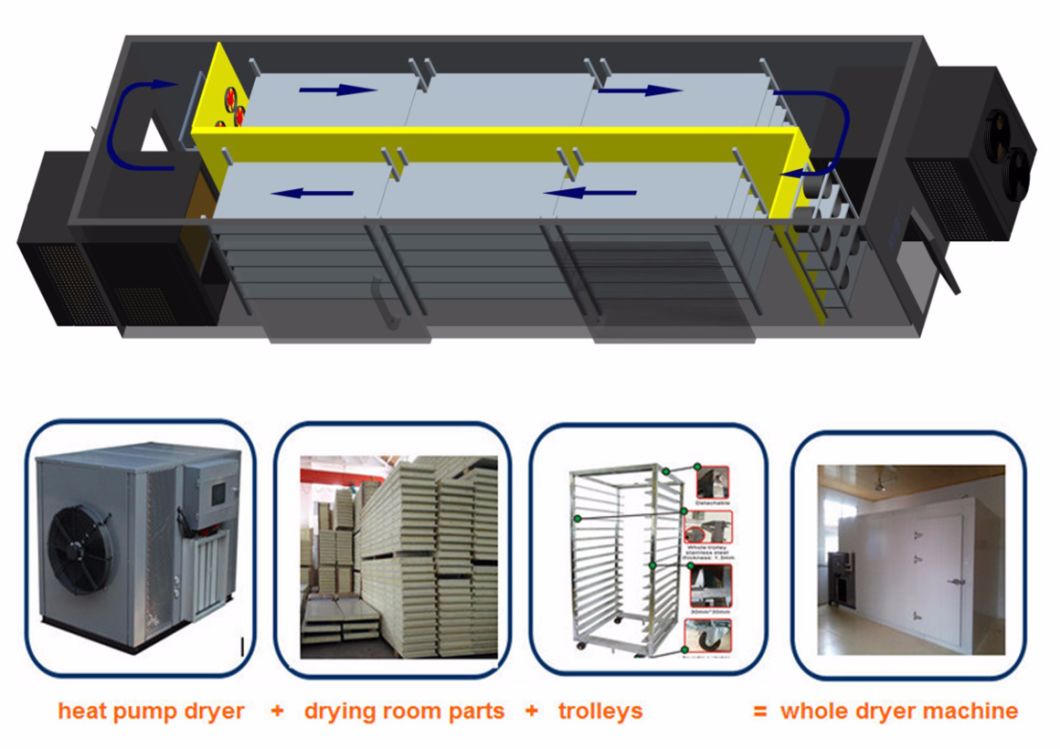

Recommend Dryer + Drying Chamber Size
Item  DescriptionProduct CapacityDrying Chamber size
1One unit JK03RD dryer + drying chamber300KG/batch4000x2000x2200mm
2One unit JK06RD dryer + drying chamber600KG/batch6000x2800x2200mm
3One unit JK12RD dryer + drying chamber1000KG/batch6000x3000x2200mm
4Two units JK03RD dryers + drying chambe1300KG/batch7000x2000x2200mm
5Two units JK06RD dryers + drying chambe1500KG/batch10000x2800x2200mm
6Two units JK12RD dryers + drying chambe3500KG/batch10000x3000x2200mm
 Warm prompt: We can make any drying chamber sizes as your required.

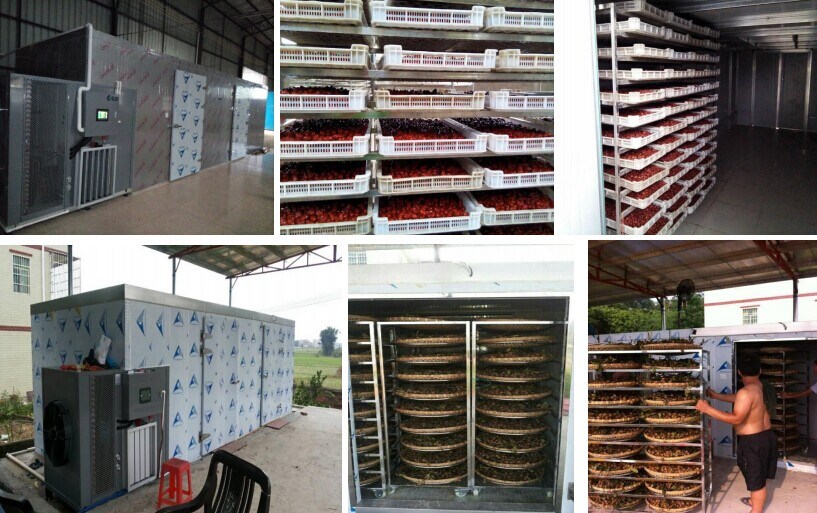

KINKAI Drying Project

Agricultural Machinery Grain Processing Machine/ Maize Dryer
Agricultural Machinery Grain Processing Machine/ Maize Dryer

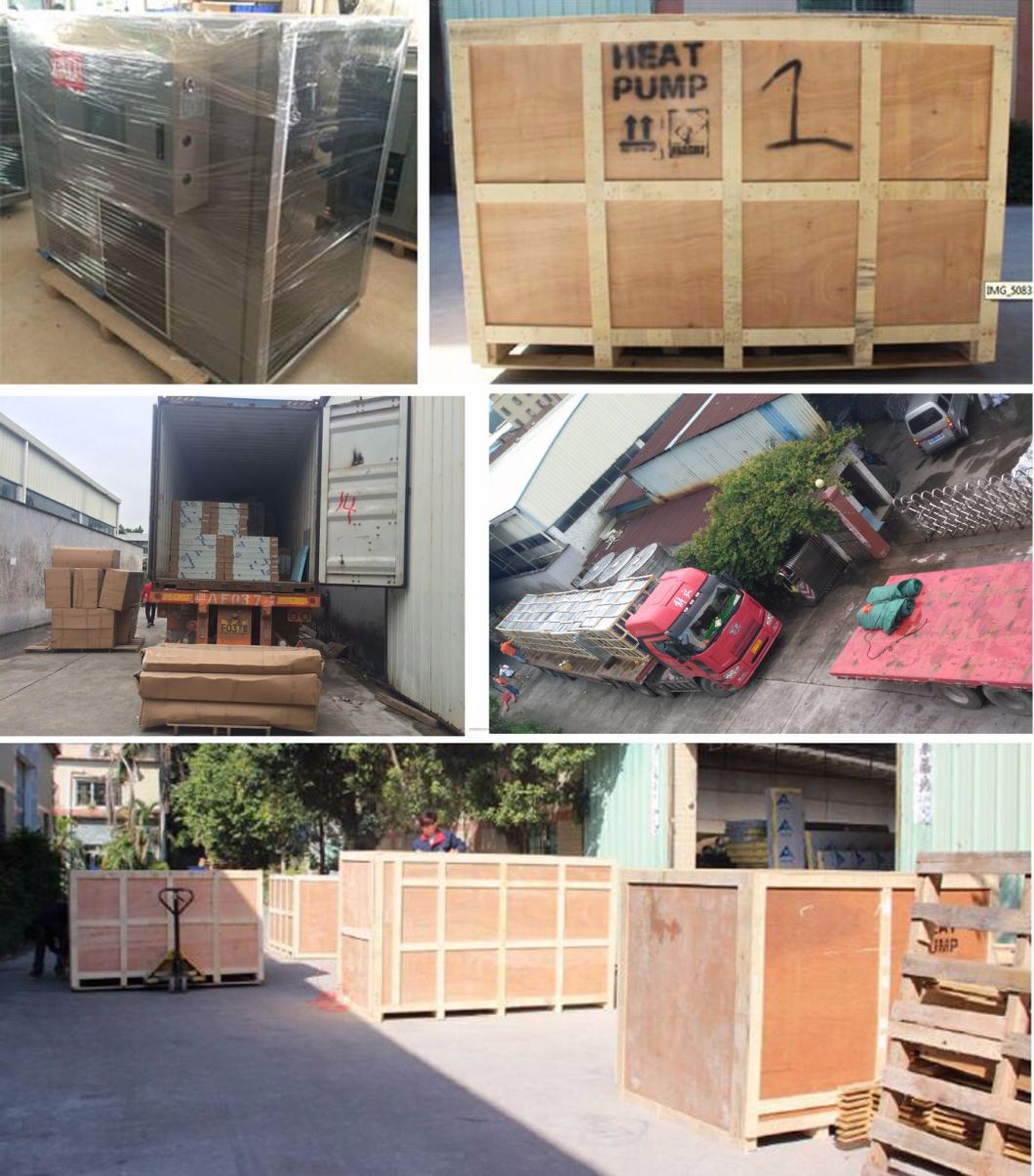

Packing and delivery
1.For heat pump dryer parts with export standred plywood case
2.For whole set dryer machine with 20GP,40GP,40HQ container

Agricultural Machinery Grain Processing Machine/ Maize Dryer

Our Service
A. Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)

B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.

C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.

Any questions about the machine, please feel free to contact.
