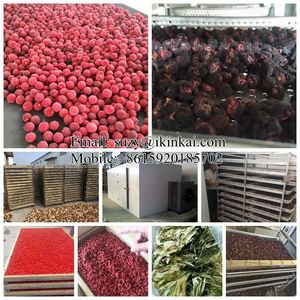

Natural Dehydrated Hot Air Dryer Machine for Drying Potato, Carrot, Tomato, Red Bell Pepper
KINKAI HEAT PUMP fruits &vegetable Food Drying Machine introduction:
KINKAI heat pump food dehydrator is a device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in a refrigerator.

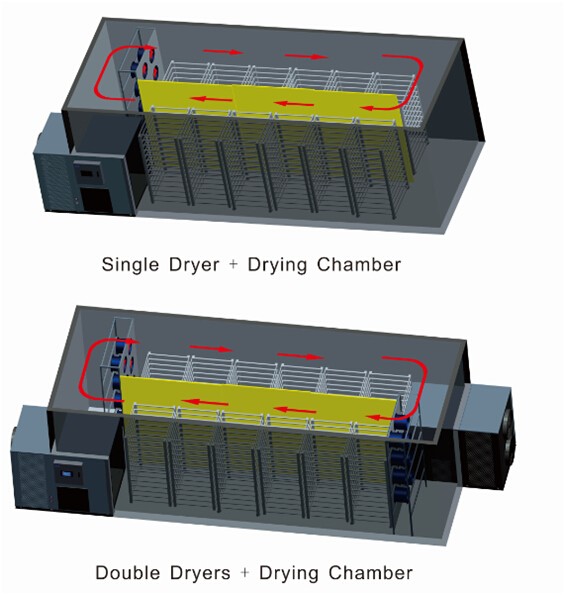

Main parts: HEAT PUMP DRYER+ DRYING CHAMBER +TROLLEYS
Model: JK03RD, JK06RD, JK10RD
Power Supply: 220V/1PH/50HZ or 380V/3PH/50HZ
Type: 75% air source + 25% electric power
Max. Temp: 75C
Working Temp: -10~45C
Functions: Heating / Cooling / Dehumidify
Dryer Type: Batch Type
Agaric (Auricularia auricula-judae) |
Agaric sells very well in the market. Currently, its average price in the market is about RMB 50 yuan per jin (a Chinese unit of weight). It is plenty of nutrients and is very popular with foodies. It can help to cure many diseases such as high blood pressure and urethral calculus. Accordingly, their market demand is quite heavy. China plays an important role of producing agaric in the world. Agaric mainly grows in Jilin, Heilongjiang, Liaoning, Inner Mongolia, Guangxi, Yunnan, Guizhou, Sichuan, Hubei, Shanxi and Zhejiang. Among them, agaric in Heilongjiang are the most famous. For the sake of storage and selling, it is very common to dry up the agaric. Therefore, the agaric dryer is very necessary for production at scale. |
How to dry agaric with KINKAI dryer |
Set the drying temperature to 35°C at the beginning. Agaric will deform if the temperature is too high and moisture is removed insufficiently. Dry agaric at 35-40°C for 4 hours; raise the temperature to 45-50°C (the highest temperature must be lower than 60°C) to dry it up. The entire drying process takes about 10-14 hours. The drying process varies with the actual situations such as the desired dryness, the size of the cabinet, and the ventilation way. |
Model No. | Capacity | Chamber Size | Trolleys qty | remarks |
Single JK03RD | 300KG/Batch | 3160*2070*2200mm |
6 trolleys
| Trolleys size: 810*670*1800mm Default design: Each trolley 16layers, each layer including 1pcs trays Total 16pcs trays for one trolley Tray dimension: 750*660mm
|
Double JK03RD | 800KG/Batch | 7510*2070*2200mm | 16 trolleys | |
Single JK06RD | 600KG/Batch | 5700*2170*2200mm | 12 trolleys | |
Double JK06RD | 1500KG/Batch | 10530*2170*2200mm | 24 trolleys | |
Single JK12RD | 1200KG/Batch | 5810*3230*2200m | 20 trolleys | |
Double JK12RD | 3000KG/Batch | 10750*3230*2200mm | 40 trolleys |
A. Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year’s warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
