Beer Yeast Separation Automatic continuous Discharge decanter centrifuge
Beer Yeast Separation Automatic continuous Discharge decanter centrifuge Beer Yeast Separation Automatic continuous Discharge decanter centrifuge
I. main performance and use
Horizontal spiral discharge settling centrifuge with principle of centrifugal settling slurry continuous solid-liquid separation, solid phase by spiral roll out, this machine is a continuous and efficient solid-liquid separation equipment, has the following features:
1, wide application range, good adaptability for material, can be widely used in pharmaceutical, chemical, light industry, food, papermaking, mining and other industrial sectors, for suspending liquid solid weight concentration of 10% or less (or after 24 hours free settling volume concentration 50% or less), solid phase particle equivalent diameter 0.005 ~ 2 mm or higher liquid-solid severe difference of 0.05 g/cm3 or suspension of the solid-liquid separation,Such as calcium carbonate, calcium sulfate, polyvinyl chloride, lees, bean dregs, soybean protein, paper pulp, vegetable oil, kaolin, white mud, sludge in the environmental protection industry, and is suitable for all kinds of chemical products such as sedimentation centrifugal separation materials can effectively dehydration processing.
2. The machine is capable of continuous production, large production capacity, small energy consumption per unit and high degree of automation, especially suitable for industrial production line.
3. The machine adopts frequency conversion control and stepless speed regulation, so as to achieve the best separation effect.
4. The whole separation process of the machine is conducted in a closed condition, without pollution and odor to the environment.Especially suitable for pipeline production.
5. The machine has compact structure, small footprint, convenient installation, simple maintenance, high content of tungsten carbide sprayed on the vulnerable parts -- spiral outer edge, greatly improving wear resistance and doubling service life.
6. The contact parts of the machine and materials are made of corrosion-resistant stainless steel and polished with mirror.
Product structure: horizontal screw discharge sedimentation centrifuge main machine is made up of column-cone drum, screw discharge device, differential speed system, bearing seat, housing, main and auxiliary motor and electrical system.Main motor driving drum, vice motor drives the planetary gear differential, produce drum and spiral differential, centrifuge rotating at high speed and strong under the action of centrifugal force, continuous separation for 24 hours a day.
Working principle: the drum and the screw rotate at a high speed with a certain differential speed. The material enters the screw feeding chamber continuously from the feeding tube and enters the drum after acceleration under the action of centrifugal field.Heavy solid - phase deposits formed the sediment layer on the drum wall.Spiral pusher will deposit solid content continuously pushed to drum cone end, through dry zone is being exhausted from port discharge closed after drying, lighter liquid of the inner liquid ring is formed, by continuous overflow out of the drum drum big end the overflow mouth, the mouth of produced liquid discharge outside.
Horizontal sedimentation centrifuge technical specifications
1, almost above
1.1 scope of application
This technical specification is only applicable to horizontal spiral discharge settling centrifuge, centrifuge equipment manufacturing, and to guide installation, commissioning, operation and acceptance and other relevant regulations, and as a basis to make the technical proposal of the supplier.
1.2 scope of supply
The scope of supply is horizontal screw sedimentation centrifuge and its accessories
2. Technical standards
2.1 application of national standards
Horizontal spiral sedimentation centrifuge meets the following technical standards:
Serial number standard number name
1 gb19815-2005 centrifuge safety requirements
2 GB13755 centrifuge technical conditions
3 JB/T 502-2004 horizontal spiral sedimentation centrifuge
4 GB/ t10894-2004 test method for mechanical noise separation
5 GB/ t10895-2004 mechanical vibration test method for centrifuges and centrifuges
2.2 equipment description
Horizontal screw sedimentation centrifuge structure is mainly there
(1) power and differential group
(2) drum and screw group
(3) machine seat and shell group
(4) control system
Horizontal screw sedimentation centrifuge is used to separate suspension by centrifugal sedimentation principle.All kinds of suspensions with the equivalent diameter of solid particles of 3 centimetres or more, the difference of liquid-solid density of 0.05 grams /cm, and the volume concentration of 0.5 to 40% are suitable for liquid-solid separation by such centrifuge.The motor drives the drum and the screw to rotate at a high speed with a certain difference in speed. The material enters the screw feeding chamber continuously from the feeding tube and enters the drum after acceleration under the action of centrifugal force field.Heavy solid - phase deposits formed the sediment layer on the drum wall.Spiral pusher will deposit solid content continuously pushed to drum cone end, through dry zone is being exhausted from port discharge closed after drying, lighter liquid of the inner liquid ring is formed, by continuous overflow out of the drum drum big end the overflow mouth, the mouth of produced liquid discharge outside.
3. Equipment structure
It is mainly composed of drum and screw parts, dynamic and differential parts, pedestal (including damping system), shell parts and electric automatic control system.
3.1, motivation and differential group, is mainly composed of motor, transmission belt, planetary differential, spline, bearings and so on, mainly provide motivation of motor, transmission belt and spline main transmission power, differential mainly provide no differential speed ensure the smooth screw pushing the change of different materials.
3.2 drum and screw group -- mainly composed of cylinder with conical cylinder drum, screw feeder, adjustable column liquid device, etc., in which drum is mainly driven by the power provided by motor to rotate at high speed.A strong centrifugal field is generated to provide a separation space for materials.The main function of screw pusher is to discharge the solid slag phase separated by rotating drum at high speed.To complete the automatic slag discharge.
3.3, frame and shell group - the main motor, bearing, drum of equipment protection shell, drainage pipe, and other components of the discharge port, motor, bearing is to give, bearings provide a safe working platform.The main function of the drum protection shell is to isolate the outside world when the drum rotates at high speed to prevent dangerous and strong airflow.The drain pipe and the slag discharge port are designed for the two phases after the separation of the flow guide.
3.4. Control system -- dual electric dual-frequency control system is adopted, which is very suitable for occasions where solid phase dewatering production process is complex and technical requirements are high.It can display a variety of main process parameters, has a variety of equipment abnormal status monitoring alarm and protection functions, so that the whole working system is more secure and reliable.
4. Product features
4.1. Special anti-wear measures are adopted for screw pushing device, and hardmetal wear-resistant pieces are inserted.The main parts such as drum are made of corrosion-resistant stainless steel to ensure the durability and long service life of the equipment.
4.2 according to the user's material characteristics and technological requirements, the structure of the drum's length to diameter ratio, speed and cone parts is optimized.
4.3 planetary gear differential with heavy load and large transmission ratio is selected.
4.4. The main motor and differential auxiliary motor adopt dual electric double frequency control to realize stepless speed regulation.
4.5 small space occupied by centrifuge, simple installation and debugging;The whole machine is fully sealed, safe and hygienic, with good working environment.
4.6 high degree of automation, regular inspection of personnel can be done.Convenient operation and simple maintenance.
Decanter centrifuge is best choice for the soybean sauce separation for the first step. because the water content 40-50% soybean sauce and slid and liquid content. but the decanter centrifuge separated the solid , after thesoybean sauce and disc centrifuge can separated .also
As the severe worldwide water shortage and the implementation of water protection strategy, the demand for sewage purification treatment continue rising. We could foresee more and more sewage & sludge need to be treated in the future.
As the policy of protection environment is more and more strictly, both municipal department and industrial enterprise must choose harmless solution to treat sewage and sludge. We should ensure the sludge treatment solution is long-term and security, we could also choose some high-tech equipment to recover the valuable substance.
No mater what kind of solution, the most economical and the best effect is core link of sludge treatment processing. The choosing of technical equipment and corresponding processing for sludge dewatering determine the economy of dehydration system.
Considering the handling charge of storage, transportation, incineration or landfill, increasing the solid content of dehydration sludge is very important to reduce the cost of sludge treatment system. In order to ensure the sludge treatment system could achieve the best processing requirements, it's necessary to optimize the process of sludge dehydration to get higher dryness, smaller volume sludge.
The decanter centrifuge provided by Guangzhou Fuyi Company could reach high separation acceleration (separation efficiency) and the best differential and torque adjustment to achieve the best dehydration treatment effect.
After efficient dewatering to reduce the sludge volume a minimum, the cost of related sludge treatment processing will be greatly reduced.
Large capacity soybean sauce machine separator decanter centrifuge
Decanter centrifuge is best choice for the soybean sauce separation for the first step. because the water content 40-50% soybean sauce and slid and liquid content. but the decanter centrifuge separated the solid , after thesoybean sauce and disc centrifuge can separated .also
Decanter centrifuge
1.Two motor drive
2.Approximately 80 to 90 % of the oil is recovered
3.Professional After-serive
product description
Decanter centrifuge Specification
The decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.
er, the collecting cover, and frame hood . The feed and liquid discharge system , including the paring disc pump for the heavy phase, also rests on this structure. All parts in contact with the process liquid are made of stainless steel. The bowl is of the solid-ejecting disc type with hydraulic operating system. The electric motor is of the variable
All parts coming into contact with the product are made of stainless steel.
3-phase AC motor for controlled torque starting via frequency converter
Approximately 80 to 90 % of the oil is recovered.
Low personnel costs due to continuous and automatic operation.
Highest g-force for higher solids output
Adjustable bowl speed via VFD
Automatic adjustment of differential speed via VFD
Two motor drive
Belts for both primary motor and secondary motor
Decanter centrifuge main parameters:

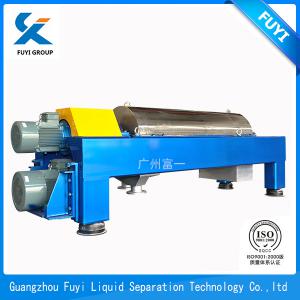

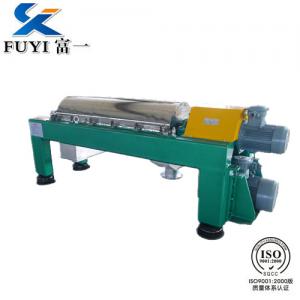

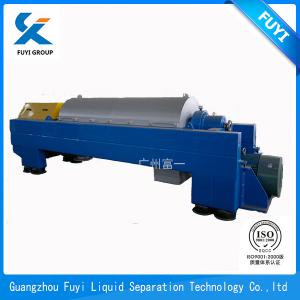

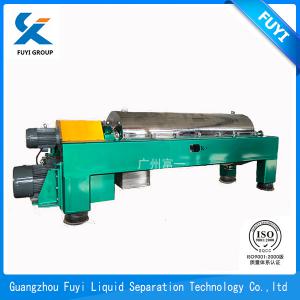

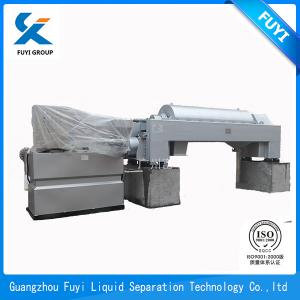

Decanter centrifuge picture
Our company was established in June 2008, formerly known as Guangzhou Fuyi Pharmaceutical Machinery Co., Ltd. Our company is now a technologically advanced and high-tech enterprise integrating R&D, production, and sales. Our company is a member of National separation machinery of Standardization Technical Committees, and also the Council Member of China General Machinery Industry Association. The director of our company is one of the first separation equipment researchers in China who obtained multiple National awards. "Tubular Separator", currently in effect, is the national standard and was drafted by our company. And in the same industry, our company is one of the first batches to pass ISO9001: 2000 quality system certification.

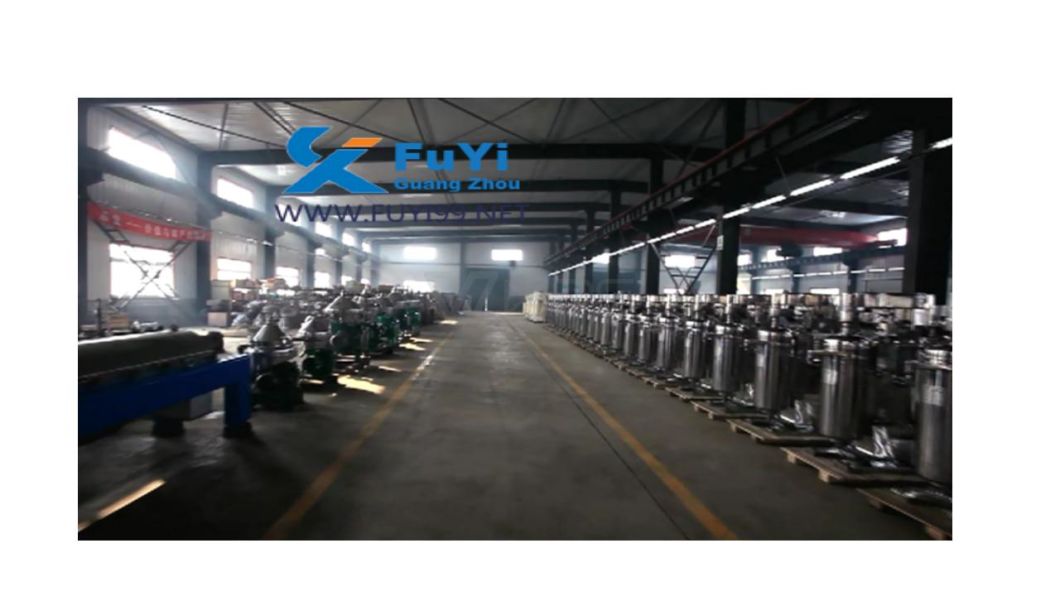

Our comprehensive performance has reached the advanced international level. Our company and branch office cover a total area of 60mu (1mu equals to 666.7m2) and a building area of 13, 000 square meters for equipment design and manufacturing, equipment inspection and test run.
With spare parts library and the material separation lab and the full equipped equipment, our company is one of the biggest manufacturers of separator equipment in domestic market. Our team is consisting of technology developers, PHD, postgraduates and undergraduates. We have close technical exchanges with Chinese Academy of Sciences, Zhejiang University and Tianjin University. We have won lots of national technical patents. Every year our company attends world-class meetings on separator machine and learns frontier technology.
Our equipment is widely used in pharmaceutical, chemical, food, beverage, blood products, material classification, biological diesel oil and other industries for the separation of solid and liquid or the separation of liquid and liquid. At present, there are thousands of equipment with all sizes have been used in lot of well known industries. As a domestic industry leader, we would like to provide our various products, excellence quality and perfect service to meet the market demand in the whole world, win the majority of users' trust and become the pioneer of the machinery manufacturing industry in the new century!fruit juice fruit pulp separation machine mass produciton decanter centrifuge separatorge
Decanter centrifuge is best choice for the fruit juice making and pump lid separation for the first step. because the water content 40-50% solid content. but the decanter centrifuge separated the solid , after the solid powder is easy dry it.
