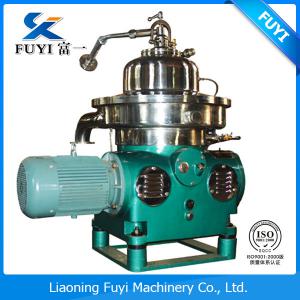

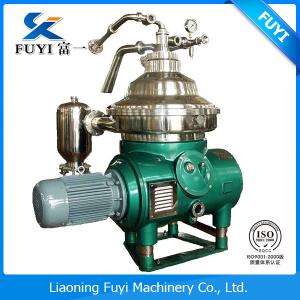

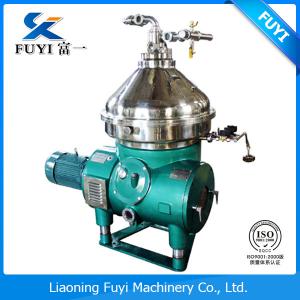

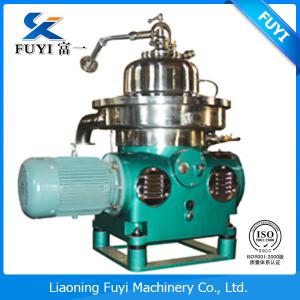

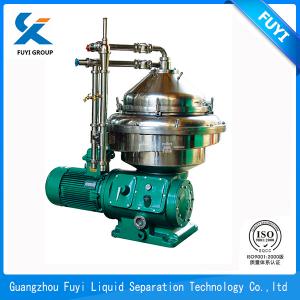

The chemical solvent factory custmised disc centrifuge separator
The chemical solvent factory custmised disc centrifuge separator
The chemical solvent factory custmised disc centrifuge separator
Specifications
Fuyi separator centrifuge were specially and professional designed for extremely demanding separation jobs. Key features of Fuyi separator centrifuge are its ability to handle high flow rates, high solid content and high-termperature process.
These functions make the centrifuge separator as the ideal choice to handle the tough conditions encountered in the animal and fish processing industries.
In addition , the fuyi centrifuge separator combines a high G-force from 6500 to 9800 , high sludge capabilities and automated operation. The centrifuge bowl can be made by Super Duplex stainless or normal Sus304, which makes it possible to combine extremely high erosion resistance with very high bowl speed for demanding separation duty.
Application
The Fuyi Centrifuge separator is designed for intermittent discharge of solids , while separating two intermixed and mutually insoluble liquid phases of different densities. In different optimized executions it is used for a large number of duties, from handing separation of fish press liquid , stick water and extract, and on the other hand purification of fish oil and liver oil , animal fats , peel oil and similar oil products.

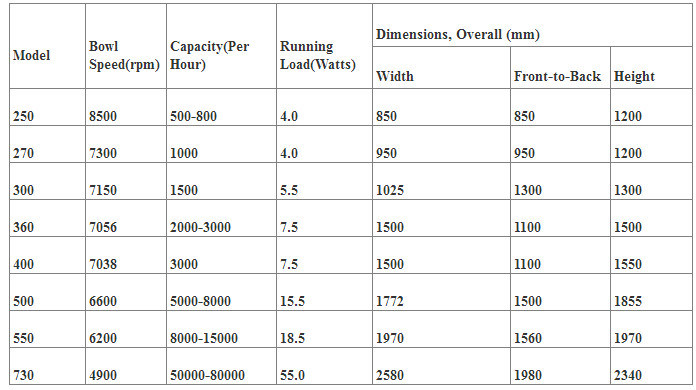

Performance
The actual throughputs depend on variables such as the amount and type of solid , the temperature , viscosity and degree of separation required. The following figures indicate the rate of performance, although no guarantees are given.
Fuyi Centrifuge Separator representatives or sale man will be please to provide you with further information and details.
Standard design
The machine consists of a frame that has a horizontal drive shaft with clutch and brake, worm gear , lubricating oil bath and vertical bowl spindle in the lower part.
The bowl is mounted on top of the spindle in the lower part. The bowl is mounted on top of the spindle , inside the space formed by the upper parts of the frame , the ring solid cover, the collecting cover, and frame hood . The feed and liquid discharge system , including the paring disc pump for the heavy phase, also rests on this structure. All parts in contact with the process liquid are made of stainless steel. The bowl is of the solid-ejecting disc type with hydraulic operating system. The electric motor is of the variable frequency drive type or of controlled-torque type.
Basic equipment
Concentrator or purifier parts, inlet and outlet devices, revolution counter, set of erosion-protective parts ,illuminated sight glass box for light phase outlet , vibration switch , vibration-isolating base plate , flange motor, set of tool and standard set of spare.
Optional extras
Started equipment, frequency converter, discharge control panel, standard set of fittings, set of CIP valves and fittings and serviceability package for online viewing of separator status
Material data
Bowl body , hood and locking ring S.S304
Solids cover and frame hood S.S
Frame bottom parts green cast iron , cald with
In and outlet parts S.S
Gasket and o-ring Nitrile rubber
Operating principles
Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe (1),and is accelerated in the distributor(2),which was specially designed to ensure smooth acceleration of the feed liquid(4). Leaving the distributor, the feed enters the disc stack(3). The separation into liquid-liquid-solid takes place between the discs, with the oil phase moving through the disc stack to the centre. When it reaches the centre, it is discharged through hole (5) and ejected into the collecting frame. The water and heavy solid separated from the oil move to the periphery, and the water flows via channels in the top disc(6) to the paring chamber, where it is pumped out of the rotor by means of a built-in paring disc(7).During purification, hot water is fed into the inlet of the bowl before the process liquid is introduced. The water forms a seal around the outer edge of the top disc. The solid collect in the periphery where they are discharged intermittently via the centrifuge cyclone. The solid are discharged by means of a hydraulic system, which forces the sliding bowl bottom(8)to drop down at preset suitable intervals, thus opening the solid ports at the bowl periphery
Our company introduction:
Our company was established in June 1986, formerly known as Guangzhou Fuyi Pharmaceutical Machinery Co., Ltd. Our company is now a technologically advanced and high-tech enterprise integrating R&D, production, and sales. Our company is a member of National separation machinery of Standardization Technical Committees, and also the Council Member of China General Machinery Industry Association. The director of our company is one of the first separation equipment researchers in China who obtained multiple National awards. "Tubular Separator", currently in effect, is the national standard and was drafted by our company. And in the same industry, our company is one of the first batches to pass ISO9001: 2000 quality system certification.

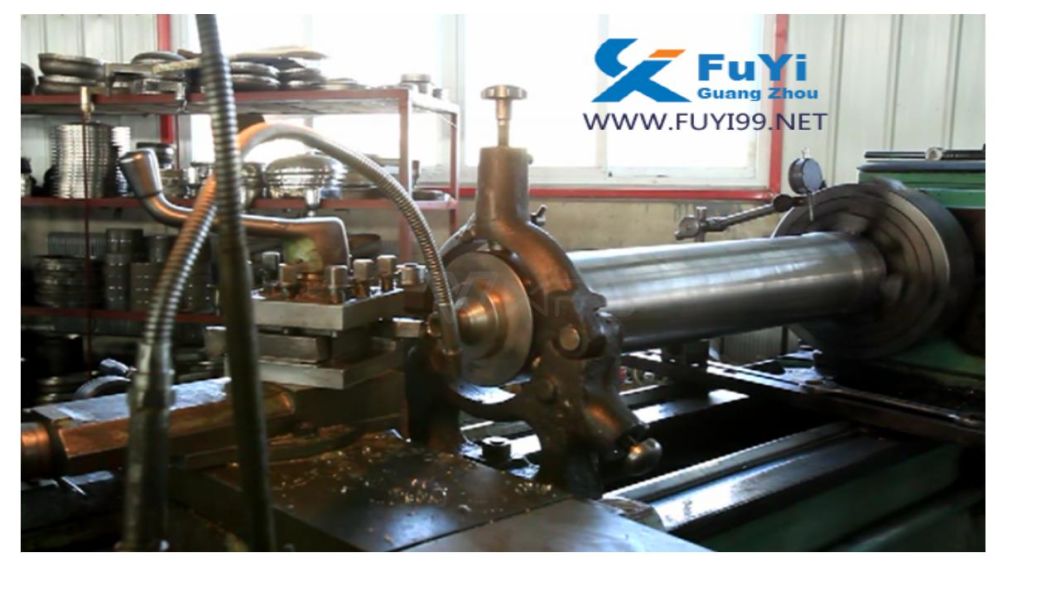

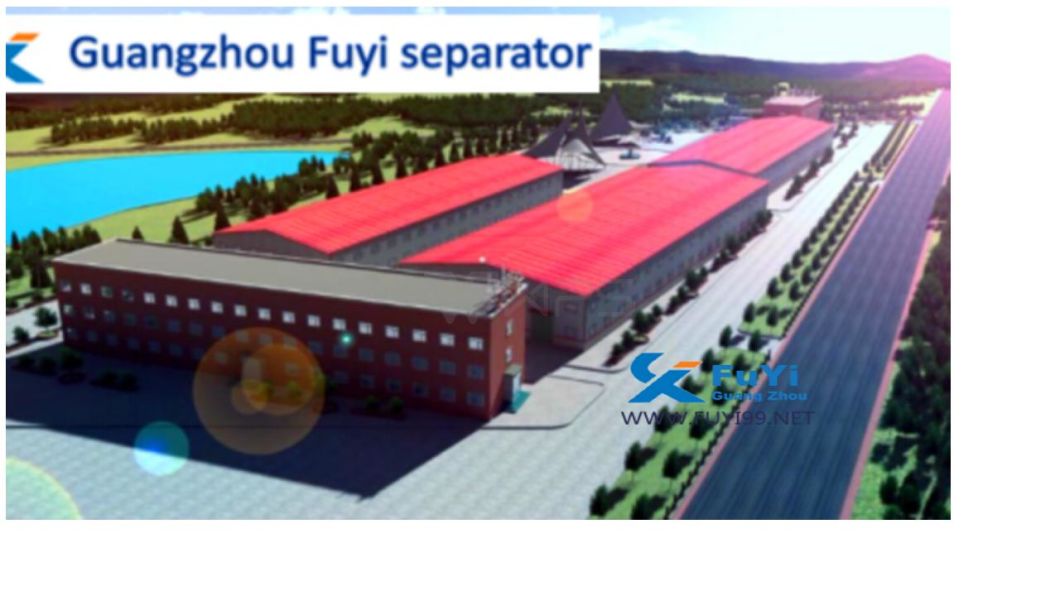

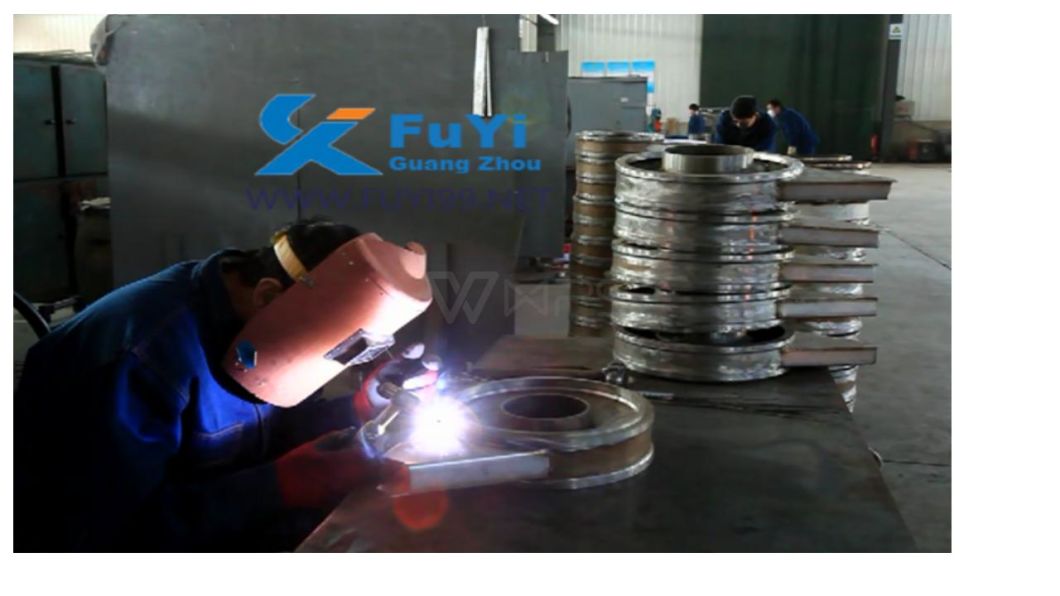

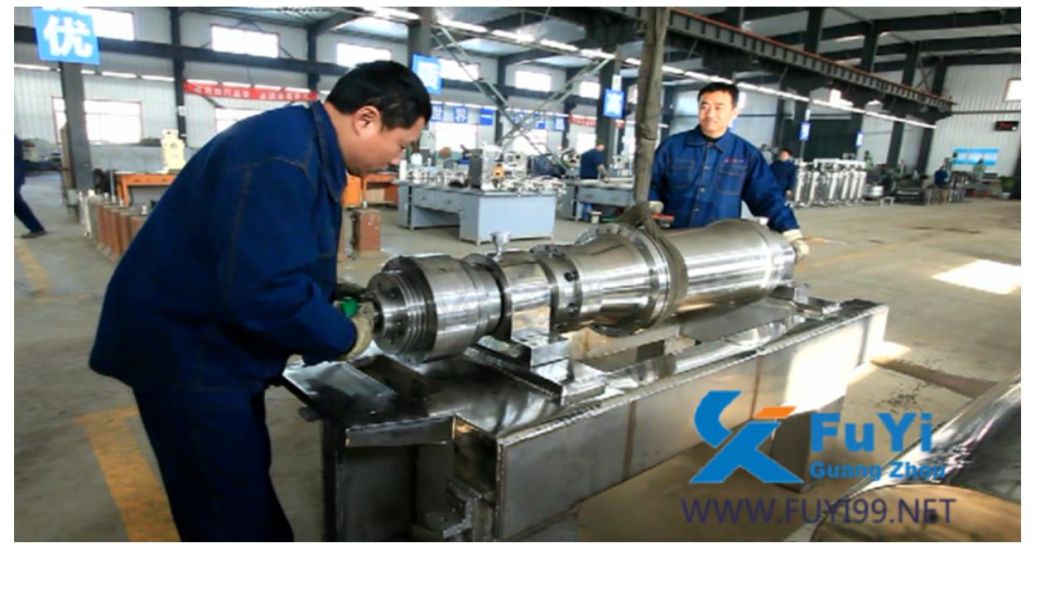

Our comprehensive performance has reached the advanced international level. Our company and branch office cover a total area of 60mu (1mu equals to 666.7m2) and a building area of 13, 000 square meters for equipment design and manufacturing, equipment inspection and test run.
With spare parts library and the material separation lab and the full equipped equipment, our company is one of the biggest manufacturers of separator equipment in domestic market. Our team is consisting of technology developers, PHD, postgraduates and undergraduates. We have close technical exchanges with Chinese Academy of Sciences, Zhejiang University and Tianjin University. We have won lots of national technical patents. Every year our company attends world-class meetings on separator machine and learns frontier technology.
Our equipment is widely used in pharmaceutical, chemical, food, beverage, blood products, material classification, biological diesel oil and other industries for the separation of solid and liquid or the separation of liquid and liquid. At present, there are thousands of equipment with all sizes have been used in lot of well known industries. As a domestic industry leader, we would like to provide our various products, excellence quality and perfect service to meet the market demand in the whole world, win the majority of users' trust and become the pioneer of the machinery manufacturing industry in the new century!
