Industrial Process Stainless Steel Anti Corrosive Chemical Pump

Industrial process stainless steel anti corrosive chemical pumpGeneral:Industrial process stainless steel anti corrosive chemical pump mainly used in factory,the city,the mining,the power station,the farm field,hydraulic project. It is us

Technical Feature

  • Shanghai, China
  • 500
  • L/C, T/T, Western Union, Paypal, Unionpay
  • 110m-150m
  • 18000m3/H
  • Electric Motor or Diesel
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
350S26
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump, Irrigation Pumps
Material
Ci,CS,Di,Ss,Duplex Ss
Voltage
380V/415V/440V/460V/3kv/6kv...
Trademark
San Chang
Transport Package
Standard Export Wooden Packing
Specification
100S32-1400S24A
Origin
Changsha, Hunan, China
HS Code
8413709990

DETAIL DESCRIPTION

Industrial process stainless steel anti corrosive chemical pump

General:
Industrial process stainless steel anti corrosive chemical pump mainly used in factory,the city,the mining,
the power station,the farm field,
hydraulic project. It is used to deliver the clear water or other their chemical
and physical similar to clear water liquid without
solid particles.The temperature of the medium is 0°C~80°C,
 the allowed inlet pressure is
0.6MPa.

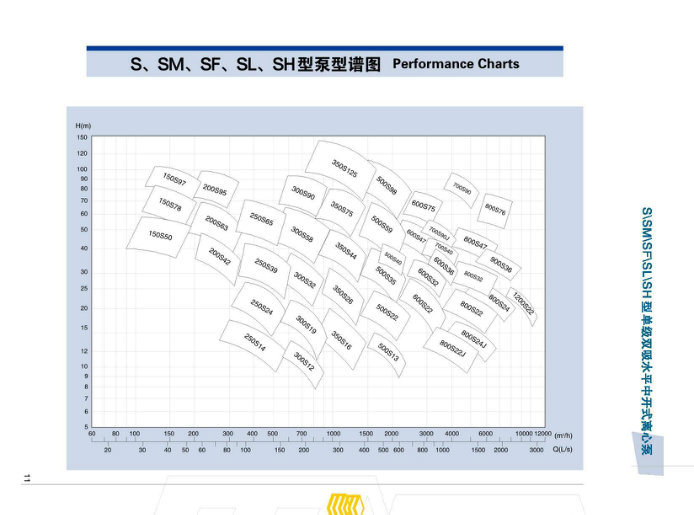

Parameter range:
Q:  72~10800m3/h
H
:  11~140m

Application:
Industrial process stainless steel anti corrosive chemical pump is widely used in the water supply,
the irrigation,the drainage pumping station,the water recycling of power plants,the industrial
water supply systems,the fire safety systems,the ship,building industry and various water
resources projects, and it is also suitable for use in the oil refining industry.

Type description:

300S19
300-the inlet diameter is 300mm
S-single stage double suction split-casing centrifugal pump
19
-the head at design point

Technical data(design point):

Flow Q: 160-18000m3/h
Head H: 12-125m
Max inlet pressure: 6 bar


S Type description :
150S-78A
150
-inlet diameter is 150mm
S-  horizontal single stage double suction clean water split casing centrifugal pump
78- rated head is 78m
A-symbol for impeller cutting


S Type model examples:

Model
Capacity
(m3/h)
Head
(m)
Motor
m3/h
m
Motor model
Motor power
kw
150S-50
160
50
Y200L2-2
37
150S-50A
144
40
Y200L1-2
30
150S-50B
133
36
Y180M-2
22
150S78
160
78
Y250M-2
55
150S78A
144
62
Y225M-2
45
150S97
180
97
Y280S-2
75
150S97A
170
84.5
Y280S-2
75
200S42
280
42
Y225M-2
45
200S42A
270
36
Y200L2-2
37
200S63
280
63
Y280S-2
75
200S63A
270
46
Y250M-2
55

Industrial Process Stainless Steel Anti Corrosive Chemical Pump
Industrial Process Stainless Steel Anti Corrosive Chemical Pump

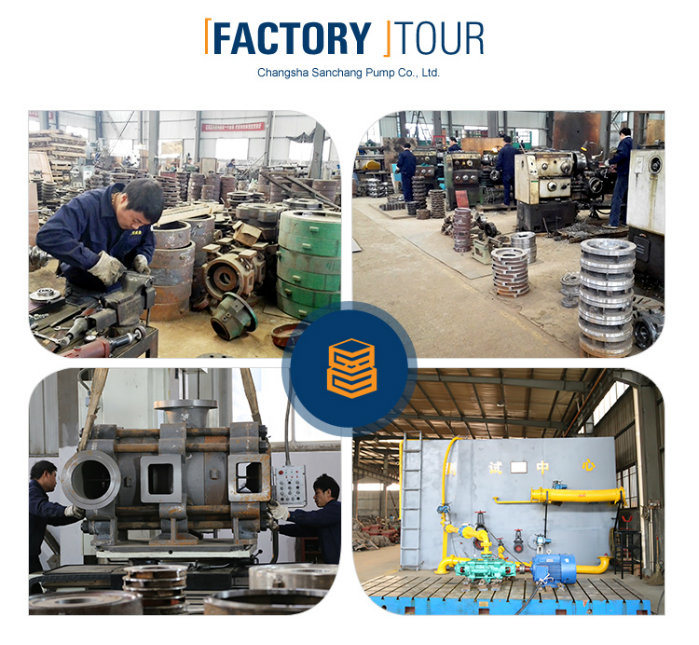

Industrial Process Stainless Steel Anti Corrosive Chemical PumpCompany information:
Industrial Process Stainless Steel Anti Corrosive Chemical Pump
Industrial Process Stainless Steel Anti Corrosive Chemical Pump
