Centrifugal Chemical Pump
Performance
Range of Performance
*Capacity: 6.3-400m3/h
*Head: 5-125m
*Speed: 2900r/min and 1450r/min
*Power of fitted motor: 0.55-90kw
*Inlet diameter: 50-200mm
*The max. working pressure: 1.6Mpa
FAQ
1. What is your product range?
A: centrifugal pump. Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
2. What's your MOQ, payment term and lead time?
A: MOQ for centrifugal pump is 1set, MOQ for conveyor belt is 100cbm.
Payment Term: T/T, L/C, Western Union, Paypal and Trade Assurance.
Lead time: in general 7 working days for slurry pump, 15working days for water pump.
3. What information should I let you know if I want to get a quotation:
A: Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also provide the pump model you are using now, price will be calculated as per the pump model, if not, we will recommend relevant product for reference.
4. If I put a bigger motor on my pump, will it pump more?
A: No. The amount of water and the pressure (head) that a centrifugal pump process is related to the rotational speed, impeller diameter and size of the impeller vanes.
5. Do you impact the finished product?
A: Yes, each batch of production and finished product will be quality checked strickly before delivering, testing report or video can be sent to clients for reference.
6. How do you ship the finished product?
A: By sea, By air, By international express.
Inquiry of Pump
1. Head: _____meter
2. Capacity: _____m3/h
3. Liquid media: ______
4. PH: _____
5. Concentration: ____%
6. Temperature: _____degree
7. Specific density; ______kg/m3
Shirley She
Cell : +0086 13932278621
More Pumps, Please Click Here:
http://deponpump.en.made-in-china.com/

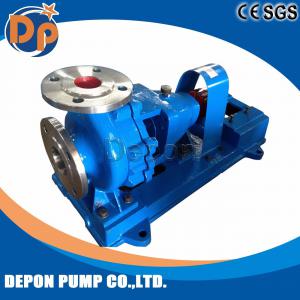

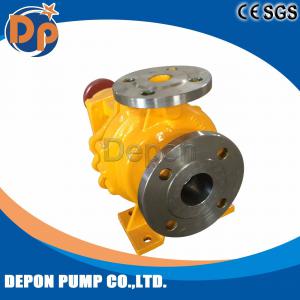

The Depon® IH Serial chemical centrifugal pump is single stage suction cantilever centrifugal pumps. It used to deliver corrosive liquid which not containing solid particles and similar to water in viscidity. It featured by wide range of performance, high efficiency, superior standardzation, easy maintenance etc.
- High efficiency Single-stage
- Durable, low noise, long life bearing
- Premium quality mechanical seal

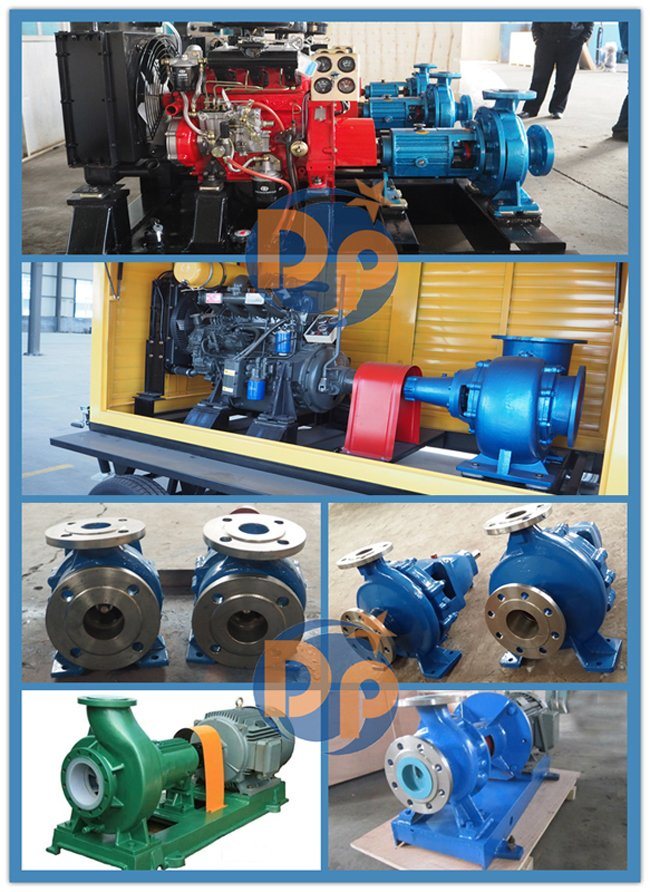

- Electric or diesel drive

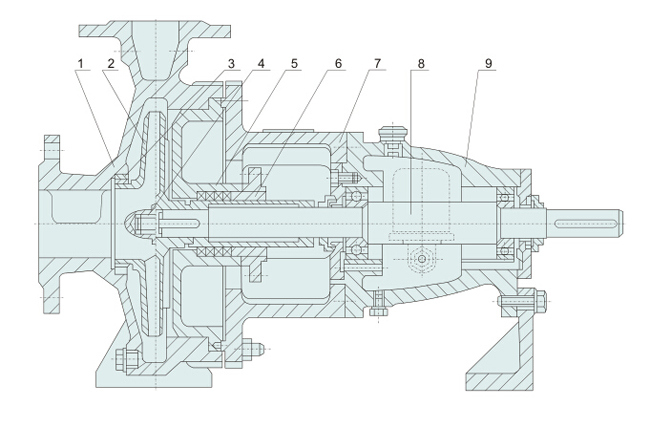

| Structure List | |||||
| 1 | Pump Casing | 4 | Impeller Nut | 7 | Mid Bracket |
| 2 | Impeller | 5 | Pump Cover | 8 | Shaft |
| 3 | Seal-ring | 6 | Seal Part | 9 | Hanging Stand |

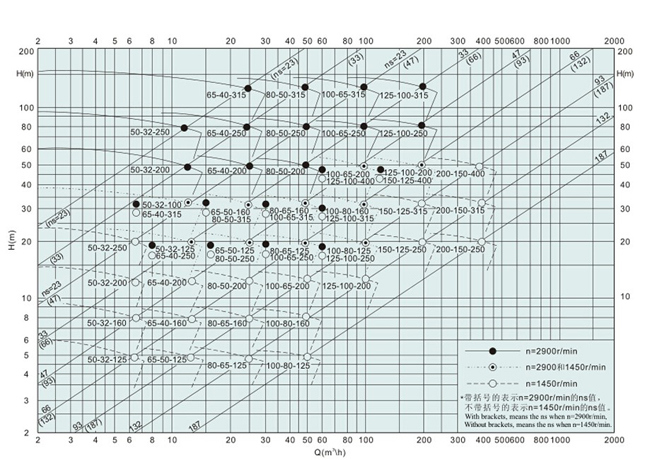

Performance
| IH Type Pump Performance | ||||||
| Type | Capacity(m3/h) | Head(m) | Speed(r/min) | Motor Power(kw) | Eff.(%) | NPSH(m) |
| IH50-32-125 | 7.5-15 | 18-23 | 2900 | 2.2 | 51 | 2 |
| 3.75-7.5 | 4.5-5.75 | 1450 | 0.55 | 45 | 2 | |
| IH65-50-125 | 15-30 | 18.6-21.3 | 2900 | 3 | 62 | 2 |
| 7.5-15 | 4.5-5.4 | 1450 | 0.55 | 55 | 2 | |
| IH65-40-315 | 15-30 | 124-136.8 | 2900 | 30 | 39 | 2 |
| 7.5-15 | 31.7-32.4 | 1450 | 5.5 | 33 | 2 | |
| IH80-65-160 | 30-60 | 28.4-36 | 2900 | 11 | 67 | 2 |
| 15-30 | 7.2-9 | 1450 | 1.5 | 62 | 2 | |
| IH100-65-200 | 60-120 | 44-56 | 2900 | 22 | 72 | 3.9 |
| 30-60 | 11-14 | 1450 | 3 | 68 | 2.5 | |
| IH125-100-250 | 120-240 | 73-90 | 2900 | 75 | 75 | 4.5 |
| 60-120 | 18.25-22.5 | 1450 | 11 | 72 | 2.3 | |
| IH150-125-315 | 120-240 | 28.5-36.3 | 1450 | 30 | 75 | 2.8 |
| IH150-125-400 | 120-240 | 44-57.5 | 1450 | 55 | 70 | 2.5 |
| IH200-150-315 | 240-460 | 29.4-35.6 | 1450 | 55 | 79 | 3.5 |
| IH200-150-400 | 240-460 | 47-55.8 | 1450 | 90 | 78 | 3.5 |
Range of Performance
*Capacity: 6.3-400m3/h
*Head: 5-125m
*Speed: 2900r/min and 1450r/min
*Power of fitted motor: 0.55-90kw
*Inlet diameter: 50-200mm
*The max. working pressure: 1.6Mpa
FAQ
1. What is your product range?
A: centrifugal pump. Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
2. What's your MOQ, payment term and lead time?
A: MOQ for centrifugal pump is 1set, MOQ for conveyor belt is 100cbm.
Payment Term: T/T, L/C, Western Union, Paypal and Trade Assurance.
Lead time: in general 7 working days for slurry pump, 15working days for water pump.
3. What information should I let you know if I want to get a quotation:
A: Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also provide the pump model you are using now, price will be calculated as per the pump model, if not, we will recommend relevant product for reference.
4. If I put a bigger motor on my pump, will it pump more?
A: No. The amount of water and the pressure (head) that a centrifugal pump process is related to the rotational speed, impeller diameter and size of the impeller vanes.
5. Do you impact the finished product?
A: Yes, each batch of production and finished product will be quality checked strickly before delivering, testing report or video can be sent to clients for reference.
6. How do you ship the finished product?
A: By sea, By air, By international express.
Inquiry of Pump
1. Head: _____meter
2. Capacity: _____m3/h
3. Liquid media: ______
4. PH: _____
5. Concentration: ____%
6. Temperature: _____degree
7. Specific density; ______kg/m3
Shirley SheCell : +0086 13932278621
More Pumps, Please Click Here:
http://deponpump.en.made-in-china.com/
