Starch Pump With Low Price

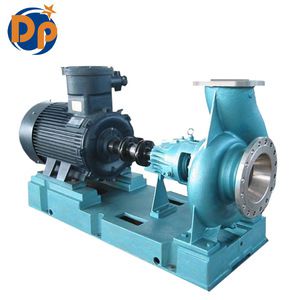

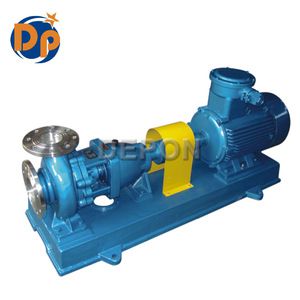

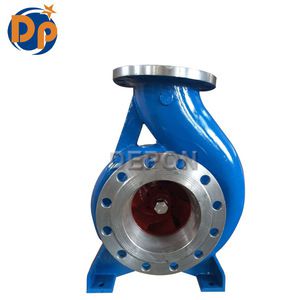

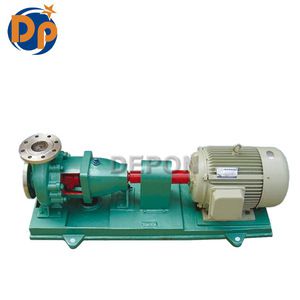

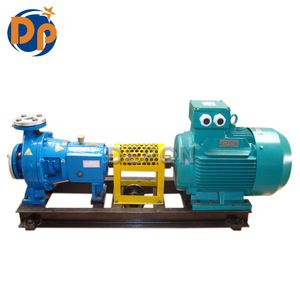

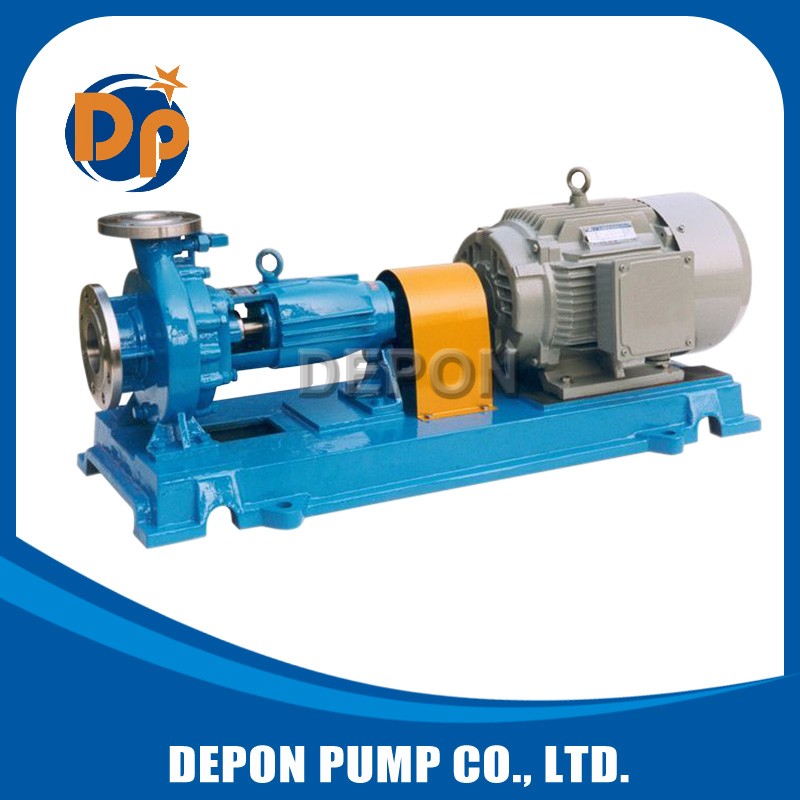

The depon® IH end suction chemical pump is single-stage end-suction(axial suction) cantilever type centrifugal pump,which is used to transport corrosive liquid with viscosity similar to water and without solidparticles.The marked and rated performances and dimensions adopt ISO2858 international standard.It has such characteristice as wide range of perfoumance,highefficiency,high mechanical and physical level andconverient maintenance etc.It is energy saving type product recommended by the nation with its efficiency being 5%greaterthan that of F model pump.
The temperature of transported media of IH model chemincal pump is -20℃~105℃.Through adopting cooling method,it can transport media with higher temperature if necessary,and is applied to transport various corrosive media or media in which pollution is forbidden similar to water in such industries as chemical industry,petroleum,metallurgy,electric power,papermaking,food,pharmacy and synthetic fiber etc.
1 Wide range of performance
2 high efficiency
3 high mechanical,chemical and physical level
4 Convenient maintenance and etc.
1 chemical industry
2 petroleum
3 metallurgy
4 electric power
5 paper making etc.
Model Meaning
Note: The impeller form consists of such five kinds as O, A, B, C and Z, respectively standing for:
O- Impeller prototype
A- Impeller OD cut for the first time
B- Impeller OD cut for the second time
C- Impeller OD cut for the third time

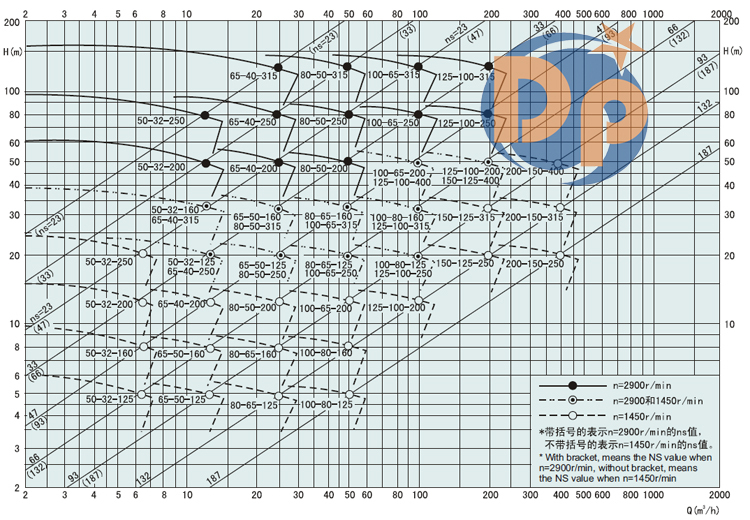

Model | Speed | Capacity Q | Head | Efficiency | Power(N)(KW) | NPSHr | Weight | ||
n(r/min) | m3/h | L/S | H(m) | η (%) | Shaft power | Motor power | r(m) | w(Kg) | |
IH50-32-125 IHF50-32-125 | 2900 | 7.5 | 2.08 | 23 | 43 | 1.09 | 2.2 | 2.0 | 45 |
12.5 | 3.47 | 20 | 51 | 1.33 | 2.0 | ||||
15 | 4.17 | 18 | 49 | 1.50 | 2.5 | ||||
1450 | 3.75 | 1.04 | 5.75 | 36 | 0.16 | 0.55 | 2.0 | ||
6.3 | 1.75 | 5 | 45 | 0.19 | 2.0 | ||||
7.5 | 2.08 | 4.5 | 44 | 0.21 | 2.5 | ||||
IH100-80-160 IHF100-80-160 | 2900 | 60 | 16.67 | 37 | 60 | 10.1 | 15 | 3.8 | 86 |
100 | 27.78 | 32 | 73 | 11.9 | 4.3 | ||||
120 | 33.33 | 28 | 73 | 12.54 | 5.0 | ||||
1450 | 30 | 8.33 | 9.25 | 58 | 1.3 | 2.2 | 3.0 | ||
50 | 13.89 | 8.0 | 69 | 1.58 | 3.4 | ||||
60 | 16.67 | 7.0 | 68 | 1.68 | 3.7 | ||||
*****More pump models please contact us***** |
Company Information
Q: How can I make order online?
A: Send email or skype us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 sets.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, MoneyGram
Q: Which shipping terms are avaliable?
A: By sea, DHL, TNT( express for spare parts)
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money.Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery
Q: Can I buy parts separately?
A: Yes,all of the parts can buy separately.
Packaging
We have the key to deal with the pump!
