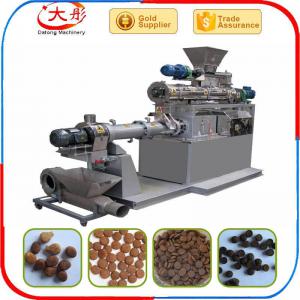

1.pet food pellet extruder machine can produce a premium quality special koi food, goldfish food, tropical fishes food, dog food, cat food, as well as laboratory dog and monkey food. They all are sold at home and abroad and win high praise and favorably commented from customers. This fish feed machinery can do floating and sinking fish feed. fish feed machine, pet food machine, fish feedstuff machine, fish food machine.
2.Raw Material: corn flour,wheat flour,low temperature,soya flakes meal,rice ,wheat bran,annexing agent,etc.
3.Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
4.pet food pellet extruder machine Features:
1.Datong Company pet feed extruder machine is used to produce the food with novel shape, particular taste and color.
2. Scientific nutrition combination catches up the trend of the market.
3. In this line, you will see the advanced technology of JINAN DATONG machinery. With simple operation, accurate parameter control, the products can be finished in the stipulated temperature, pressure, humidity and time.
4. Owing to the reasonable design, special materials ,the stability, repairs can be guaranteed and ensured.
5.The various shape and taste must meet the different requirements.

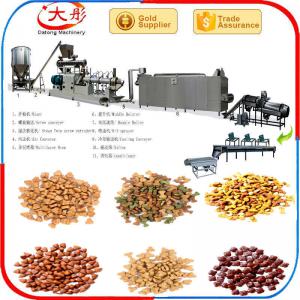

5.Pet food pellet extruder machineProcess chart:
Blender→elevator→Storage→Conditioner→Steam Fish food extruder→Air conveyer→Steam Dryer→Hoister→oil sprayer→Double Drum→Cooling conveyer→Sifter→Packing Machine.
Steam Model | Install power | Consumption | Main Power | Capacity | Diemension |
TSE65 | 30.0kw | 22.0-30.0kw | 22.0kw | 120-200kg | 15*2.5*4.0M |
TSE70 | 35.0kw | 25-40.0KW | 30.0kw | 250-400kg | 27*2.5*4.5M |
TSE75 | 45.0kw | 40-80.0KW | 45.0kw | 300-500kg | 27*2.5*4.5M |
Pet food dryer(electricity,gas,steam types)
1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
Screw material:
Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Bimetallic Screw: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°
Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy)
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°
Cutting System:
1.The blades is made of alloy steel,Very sharp.
2.It can cut the product easily.
3.Hardness material an used long time.
4.it can fix more cutter according require.
Packing: inside plastic bag, outside wooden case for core filling snack food puffed food making machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Transportation: shipping, train, express or upon clients' demands.

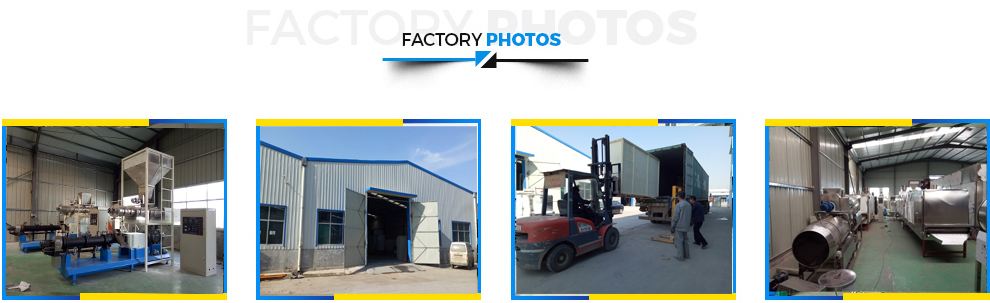

Packing machine with woodcase and plastic flim Loading container in our factory
Company Information
Jinan Datong Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.Our company congregates an exceptional food machine engineering team, personal customer service center and highquality manufacturing capabilities have evolved exponentially,We are working hard on explore constantly not only in the research of extrusion technology, but also in food technics to benefit our clients producing newfangled food in their markets. It making us become one of the preeminent providers of reliable extrusion equipment world-wide.
Our Service:
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Extruded Food Wheat Corn Snack Pellet Making Machine.
1. Are You a manufacturer or a trading company?
We are professional manufacturer of food making machine
2. Where is your factory located?
Our factory is located in Jinan city,No.28,Gaohanji industrial park,Tianqiao Zoon,Shangdong Province,China
3. What's your price of your food making machine?
Please contact us by send inquiry to us directly ,We will reply you as soon as possiable
4. How to support me,if I don't know how to use it?
Free training within the warranty period will be provided by telephone or email or skype.We also can let our technican to customer's company to provided training and support
5. If machines' wearing parts need changing ,what should we do?
We can offer wearing parts all the time ,and offer video to show how to change it.
6. What's the payment term,if we want to buy machines ?
L/C,100%T/T,Alibaba Trade Assurance,T/T30% down payment ,70%balance delivery.
China
