1. Description of Puff corn ball snack food making machine:

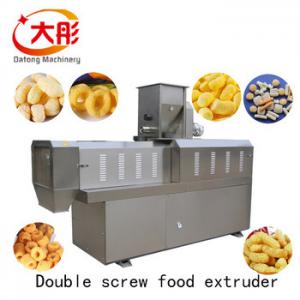

Cheese Curls Food Extruder Machinery adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
2. Snacks Raw materials:
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.
3. Snacks food Products shapes:
Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4. Corn snack food line Capacity:
60-80kg/h, 100-150kg/h, 200-240kg/h, 300-500kg/h
5. Snacks food extruding line Flow chart:

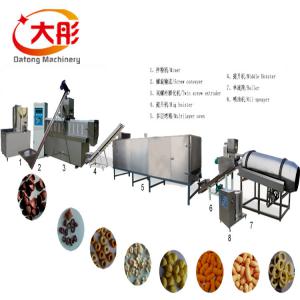

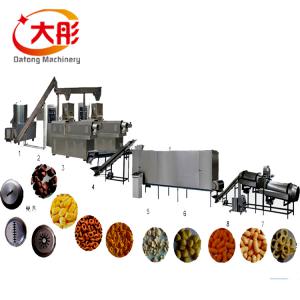

Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
6. China standard industrial Voltage for the machine:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v...).
7. Sancks food Machines Materials:
All the Snacks food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
8. Details & Features of Cheese Balls Plant:
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
9. Service & Turnkey Solution:
a. ) Consultation service before, during, and after sales;
b. ) Project planning and design service;
c. ) Debugging of equipment until everything is functional;
d. ) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e. ) Training of equipment maintenance and operating personally;
f. ) New production techniques and formulas;
g. ) Provide 1 year complete warranty and life-time maintenance service.
10.Machine Parameter:
11.Datong Company Info:
Jinan Datong Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.Our company congregates an exceptional food machine engineering team, personal customer service center and highquality manufacturing capabilities have evolved exponentially,We are working hard on explore constantly not only in the research of extrusion technology, but also in food technics to benefit our clients producing newfangled food in their markets. It making us become one of the preeminent providers of reliable extrusion equipment world-wide.
12.Our Most Popular Snacks Food Production Line :
12.About us & more details:
Cheese Curls Food Extruder Machinery adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
2. Snacks Raw materials:
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.
3. Snacks food Products shapes:
Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4. Corn snack food line Capacity:60-80kg/h, 100-150kg/h, 200-240kg/h, 300-500kg/h
5. Snacks food extruding line Flow chart:
Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
6. China standard industrial Voltage for the machine:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v...).
7. Sancks food Machines Materials:
All the Snacks food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
8. Details & Features of Cheese Balls Plant:
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
9. Service & Turnkey Solution:
a. ) Consultation service before, during, and after sales;
b. ) Project planning and design service;
c. ) Debugging of equipment until everything is functional;
d. ) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e. ) Training of equipment maintenance and operating personally;
f. ) New production techniques and formulas;
g. ) Provide 1 year complete warranty and life-time maintenance service.
10.Machine Parameter:
| Model | Installed power | Real power | Output | Dimension |
| SLG65-III | 70kw | 40kw | 100-150kg/h | 22000x1200x2200mm |
| SLG70-III | 90kw | 50kw | 200-240kg/h | 25000x1500x2200mm |
| SLG85-III | 120kw | 100kw | 400-500kg/h | 30000x3500x4300mm |
| SLG90-III | 135kw | 100kw | 800-1000kg/h | 30000x3500x4300mm |
| SLG65-I | 50kw | 30kw | 60-80kg/h | 15000x1200x2200mm |
Jinan Datong Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.Our company congregates an exceptional food machine engineering team, personal customer service center and highquality manufacturing capabilities have evolved exponentially,We are working hard on explore constantly not only in the research of extrusion technology, but also in food technics to benefit our clients producing newfangled food in their markets. It making us become one of the preeminent providers of reliable extrusion equipment world-wide.
12.Our Most Popular Snacks Food Production Line :| No. | Production Line |
| 1 | Extruded Kurkure / Nik Nak Snacks Food Production Line |
| 2 | Core Filling / Inflating Snacks Production Line |
| 3 | Breakfast Cereals / Corn Flakes Production Line |
| 4 | Extruded Doritos / Tortilla Corn Chips Snacks Food Production Line |
| 5 | Crispy Chips / Sala / Bugles Production Line |

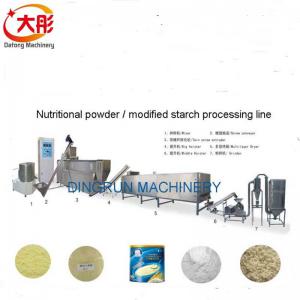

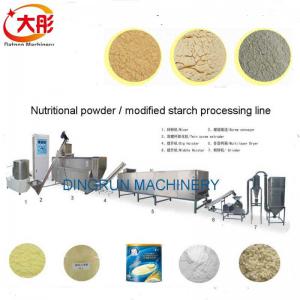

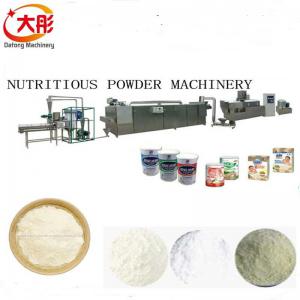

| 6 | Nutrition Powder / Baby Rice Powder Production Line |
| 7 | Nutrition Rice / Artificial Rice Production Line |
| 8 | Bread Crumbs Production Line |
| 9 | Extruded Soya Meat Food Production Line |
| 10 | Extruded Pet / Dog / Cat Food Production Line |
| 11 | Chewing / Jam Center Pet Food Production Line |
| 12 | Extruded Snacks Pellet Food Production Line |
| 13 | Instant Noodles ProductionLine |
| 14 | Fried Wheat Flour Snacks Production Line |
| MOQ | 1 set |
| Supply Ability | 20 sets per Month |
| Shipping port | Qingdao port, Shandong, China |
| Packing details | Fumigation-free wooden case outside, stretch film inner |
| Relevant spare parts | free, delivery with processing line |
| Guarantee | Within 12 months |
| Oversea service | Provide installation and commissioning after machine arrived your factory |
| Payment terms | 30% is paid by T/T as the down payment, 70% is paid by T/T orL/C before shipment. |
| Delivery time | 30 days after receipt the deposit |
| Pre-shipment | When it finished, we will invite you to our company to inspect machines, when no problem, we will arrange the shipment |
