Automatic Twin Screw Dry Dog Feed Pellet Production Line Machine Price

1.Pet and animal food extrusion machine  Description: a. Raw Materials adopts wheat flour, rice flour, corn flour, defatted soy flour, fish meal and bone meal as raw main materials.  b.Pet food making machine Capacity 150kg/h, 240kg/h, 400-500kg

Technical Feature

  • Qingdao, China
  • 100-150kg/H
  • L/C, T/T
  • Electric
  • Thermal Processing
  • Automatic
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
SLG
Raw Material
Corn Starch
Motor Brand
Siemense China Brand..
Electric Parts
LG, FUJI, Omron etc
Stainless Steel Material
201/304
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Product Type
Modified Starch
Machine Type
Extrusion
Material Quality
Stainless Steel
Trademark
Jinan Datong Machinery Company
Transport Package
Woodcase
Origin
Jinan
HS Code
8438800000

DETAIL DESCRIPTION

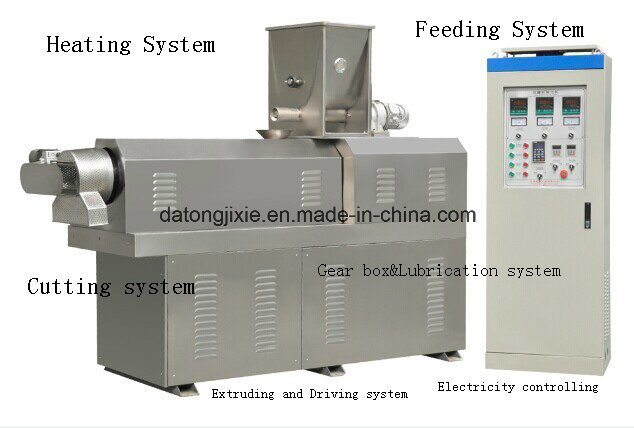

1.Pet and animal food extrusion machine  Description:
a. Raw Materials adopts wheat flour, rice flour, corn flour, defatted soy flour, fish meal and bone meal as raw main materials.
 b.Pet food making machine Capacity 150kg/h, 240kg/h, 400-500kg/h, 1ton/h, 2-3ton/h
 c. Animal feed machine Flow chart:
    Mixing system---Extrusion system----Drying system----Flavoring system---Packing system
Automatic Twin Screw Dry Dog Feed Pellet Production Line Machine Price
 d. Voltage in China three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'      Local voltage according to different countries
e. Machines Materials
   Machine Material: Stainless Steel #304
   Thickness:1.2mmMain  Motor: Siemens China brand
    Main Electric elements: Siemens or CHNT brand
    Inverter: Delta brand
2. Raw materials for Animal food pellet:
    For example,Most of pet food pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder..Animal peotein adopt meat meal, shrimp meal,crab meal, sleeve-fish meal ,bone power,fresh meat paste,chicken paste and so on.you can add other ingredient according to the local fish live require.
Cat food you should add sea animal powder..............
Dog food you should add bone powder, meat powder..
You should change some raw material percent according to the animall require!
3. Pet  food extrusion machine can make the follow Products:
   This Pet food and cat food machine can be used to produce pet food pellets, the pellets size can be changed by adjusting the extruder dies, Meanwhile this line can  used to produce dog food, cat food by change some place. You can buy one whole line to make fish food and dog cat food together.
 4. The Animal food extrusion machine Capacity:
     50-60kg/h  100-150kg/h, 220-260kg/h, 400-500kg/h, 800-1000kg/h 1200-1500kg/h

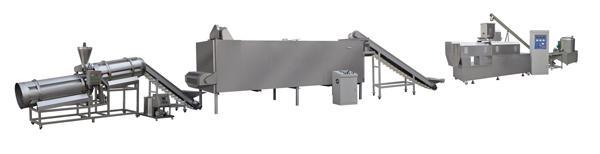

 5. The China pet fish food extruder machine ( 200-250kg/h  )Flow chart:
      Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--  Packing system
Automatic Twin Screw Dry Dog Feed Pellet Production Line Machine Price
Automatic Twin Screw Dry Dog Feed Pellet Production Line Machine Price
6. China standard industrial Voltage for pet food machine:

Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v  480v....).
7. Machines Materials:
All the Animal food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
 8. Datong Animal feed machine Technical Parameters:

ModelInstalled powerReal powerOutputDimension
SLG6570kw40kw100-150kg/h22000x1200x2200mm
SLG7090kw50kw200-240kg/h25000x1500x2200mm
SLG85120kw100kw400-500kg/h30000x3500x4300mm
SLG90135kw100kw800-1000kg/h30000x3500x4300mm
SLG115165kw115kw1000-2000kg/h30000x3500x4300mm

9). dog food production line:
Normally, according to our experience, a space with 24×4×3M is enough for our whole production line. But consideration of raw material and final production warehouse, dressing room, pre-mix preparation room etc. You can design it according to your requirement.
 Operator Needed: 3-5 Normally, one manager, two operator and one technician
Power Consumption: 76.0kw
Guarantee time: one year
We provide Turnkey Project
a. Provide factory layout according to your factory size in advance.
b. Provide the recipe when your esteemed company cooperate with us.
c. Before place the order, we invite you to visit us and make demonstration for you in workshop
d. Before delivery the machines, we invite you to inspect all the machines.
e. Installation and commissioning in your factory for 15days
10). Payment terms: 30% T/T as down payment, 70% by irrevocable L/C at sight or T/T before delivering
11). Delivery time: 20 days after receipt the deposit.
Automatic Twin Screw Dry Dog Feed Pellet Production Line Machine Price

Automatic Twin Screw Dry Dog Feed Pellet Production Line Machine Price
   Jinan Datong  Machinery Co., Ltd. Is a professional supplier of food processing machines.Our company's motto is:"technology makes easy".We offer to cooperate with our customers for mutual and beneficial development.
   We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven,  packaging machines, rice cake machine etc.Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
