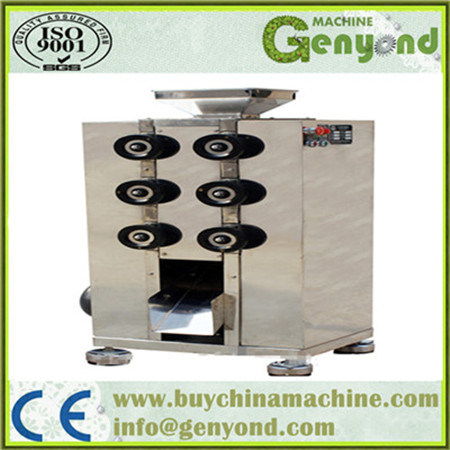

Grain roller flour mill for hot sale
Product description
Main Application
This machine is used to grind the materials which have oil such as sesame,penaut and almod.the machine is well designed and devloped by our company,it filled a gap in the oil mill,which had reached the international advanced level.
Main Application
This machine is used to grind the materials which have oil such as sesame,penaut and almod.the machine is well designed and devloped by our company,it filled a gap in the oil mill,which had reached the international advanced level.
Working Principle
The raw materials are feed into the roller area form hopper,they are milled into powder by the squeezed of the rollers,you can get different sizes of final production by adjusting by the distance of two rollers.the machine is easy to operate with low noise and high capacity which is the best mill for material.
Technical Parameters
| Type | Capacity | Grinding fineness | Motor power | Size (L*W*H) | Weight |
| JY17-1-100 | 20-80 kg/h | 8-20 mesh | 0.75 kw | 500*500*890 mm | 250 kg |
| JY17-2-100 | 20-80 kg/h | 8-40 mesh | 1.5 kw | 500*500*1130 mm | 300 kg |
| JY17-3-100 | 20-80 kg/h | 8-60 mesh | 2.2 kw | 500*500*1370 mm | 350 kg |
| JY17-4-100 | 20-80 kg/h | 8-80 mesh | 3 kw | 500*500*1610 mm | 400 kg |
| JY17-1-150 | 50-200 kg/h | 8-20 mesh | 2.2 kw | 720*520*920 mm | 500 kg |
| JY17-2-150 | 50-200 kg/h | 8-40 mesh | 3 kw | 720*520*1160 mm | 550 kg |
| JY17-3-150 | 50-200 kg/h | 8-60 mesh | 4 kw | 720*520*1160 mm | 600 kg |
| JY17-4-150 | 50-200 kg/h | 8-80 mesh | 5.5 kw | 720*520*1640 mm | 650 kg |
| JY17-1-300 | 100-500 kg/h | 8-20 mesh | 3 kw | 920*700*1200 mm | 720 kg |
| JY17-2-300 | 100-500 kg/h | 8-40 mesh | 4 kw | 920*700*1480 mm | 920 kg |
| JY17-3-300 | 100-500 kg/h | 8-60 mesh | 7.5 kw | 920*700*1760 mm | 1120 kg |
| JY17-4-300 | 100-500 kg/h | 8-80 mesh | 7.5 kw | 900*700*2060 mm | 1300 kg |
| JY17-1-500 | 200-1000 kg/h | 8-20 mesh | 5.5 kw | 1100*730*1220 mm | 950 kg |
| JY17-2-500 | 200-1000 kg/h | 8-40 mesh | 7.5 kw | 1100*730*1480 mm | 1250 kg |
| JY17-3-500 | 200-1000 kg/h | 8-60 mesh | 11 kw | 1100*730*1820 mm | 1550 kg |
| JY17-4-500 | 200-1000 kg/h | 8-80 mesh | 11 kw | 1100*730*2120 mm | 1850 kg |

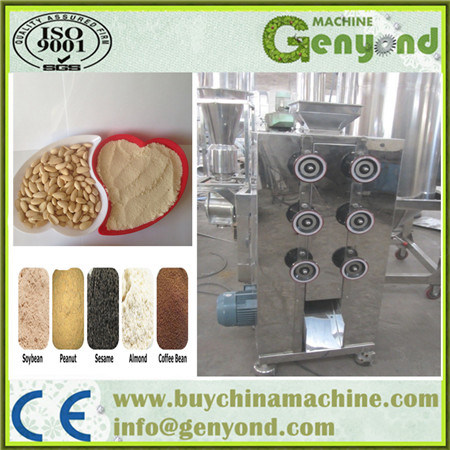

Detaied image
Packaging & Shipping
1.Package: wooden cases for sea transportation
2.Delivery time: 30 working days after receiving the deposit
3.Installation : engineers available for installation and training overseas
4.Guarantee : 12 months after it is sent out
