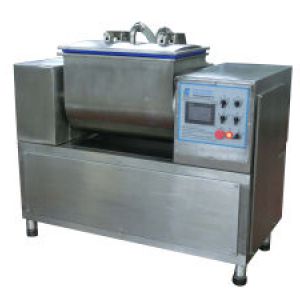

Vacuum Dough Mixer/Flour Mixing Machine 7.55kw CE Certification

Structure: Vacuum Flour Mixer is composed of frame, vessel, cover, power system, vacuum pump and electric system etc. Material: SUS304 stainless steel Control: PLC Touch screen, easy to opera

Technical Feature

  • 1000 Set/Sets Per Year
  • Wooden Case
  • L/C, T/T
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$11~7

PRIMARY PARAMETERS

Model NO.
ZHM75/ZHM150/ZHM300
Working
High Speed Mixer
Application
Powder
Layout Type
Horizontal
Operating type
Continuous Operating
Face Turned Box
95
Volume
75L
External Dimension
1300X680X1100mm
Capacity
25kg/Time
Trademark
CHENGYEJIXIE
Origin
Hebei, China
Mixer Type
Horizontal Ploughshare Mixer
Stirring Type
Spiral
Application Area
Food
Mixing Drum Shape
Disc
Condition
New
Power
7.55kw
(MPa) Vacuum
-0.08
Weight
280kg
Mixing Time
6-8min
Specification
CE
HS Code
843850

DETAIL DESCRIPTION

Structure:

Vacuum Flour Mixer is composed of frame, vessel, cover, power system, vacuum pump and electric system etc.

Material: SUS304 stainless steel

Control:

PLC Touch screen, easy to operate. Mixing time, vacuum degree, water amount could be easily adjusted according to customers' demands.

Feature:
1. Vacuum Flour Mixer imitates human hands, wheat flour and water mixed under vacuum condition, which makes the gluten net come into being in short time, it's very tough so that the dough is flexible and smooth.
2. Water circulated vacuum pump is adopted in the evacuation process.It effectively prevents the cacuum damage made by flour and reduce the pollution to the flour. It is more durable and the highest vacuum degree can reach to -0.09MPa.
3.  The vacuum pump, pump water tank and automatic water tank are all inside the machine body. It only takes small place and easy to carry and set.
4.  In the automatic water system, it uses water level probe to control the water addition and no need of metering pump.


Application:
The ZHM75 Vacuum Flour Mixer can be used to make all kinds of dough, such as noodles and steamed bread.

Technical Data:



Type


Face
Turned
Box
(°)

Power
(kw)


Volume
(L)



Vacuum
(MPa)

External
Dimension
(mm)

Weight
(kg)

Capacity
(kg/time)

Mixing
Time

(min)


ZHM
75

95

7.55

75

-0.08

1300x680x1100

280

25

6~8

ZHM
150

95

15.35

150

-0.08

1685x930x1500

500

50

6~8
