Pin Type Horizontal Bead Mill LDM-30L

General  LDM Horizontal Bead Mill is special designed for high viscosity grinding & dispersionPegs type structure desigh, enhancing the effect of impact and shear of grinding beads on material, handling high viscosity material is possible.With exc

Technical Feature

  • 1 Piece
  • Shekou, China
  • 5000sets/Year
  • L/C, T/T
  • Multi-Use Grinding Machine
  • Wet Grinding/Milling
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
LDM-30L
Disc Diameter
Pin Type
Variable Speed
With Variable Speed
Trademark
Longly
Transport Package
Standard Export Wooden Case
Specification
1400*900*1850
Origin
Shenzhen China
HS Code
8479820090

DETAIL DESCRIPTION

General
 LDM Horizontal Bead Mill is special designed for high viscosity grinding & dispersion

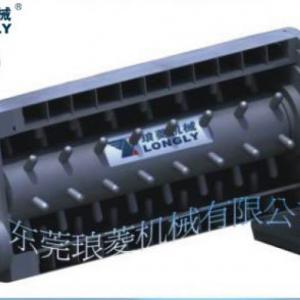

  • Pegs type structure desigh, enhancing the effect of impact and shear of grinding beads on material, handling high viscosity material is possible.
  • With excellent cooling system, ideal for grinding heat-sensitive products.
  • Automatic pressure protection devices, ensuring that the grinding chamber pressure stable. All-electric appliances automatic protection system to use.
  • Stable and Longest service life.

Applications
Longly LDM Pin Type Horizontal Beads Mill are designed for following Applicaton
(Suitable for 10~2micron Grinding)
  • Carbon Black
  • Gravure Printing Ink
  • Printing Inks
  • Industrial Paint, Metal Paint
  • Primer

Technical Date

ModelVolume of Grinding Chamber(L) Motor Power(KW)Output Capacity(L/h)Media Size(mm)Weight(kg)Dimension(mm)
LDM-5L57.530-2000.8-2.0650900*700*1550
LDM-18L202250-6000.8-2.08001350*900*1700
LDM-30L3030100-9000.8-2.010001400*900*1850
LDM-60L6045300-20000.3-2.015001700*950*1850
