The application Area(5um-50nm)
- Nano New Material
- LFP
- Nano Silicon
- Inkjet Inks
- Ceramic Inks
- Magnetic Material
- Pharma/ Biological agents
- Electronical Ceramic
- Alumina Oxide/ Zircon Sand
- Cosmetic
- thermal insulation material
- Pesticide
- MLCC
- ATO
Features
- Peg grinding system with high volume specific power density of 2 kW/dm3
- Small length-/diameter proportion
- Designed for highest product throughputs (passage & circulation)
- Narrow residence time spectrum at lowest specific energy input
- Highly efficient centrifugal separation system
- Use of smallest grinding media (down to 90 µm)
- Exchangeable grinding chamber components of wear and corrosion resistant materials, adapted to your application
- Simple integration into production plants
- Applicable in a very wide viscosity range (from 20 mPas - 7000 mPas)
- Low product temperatures due to intensive cooling of the grinding tank and the agitator shaft
- Easy handling and process control
- Easy access to the separation system
- Grinding tank with lifting device

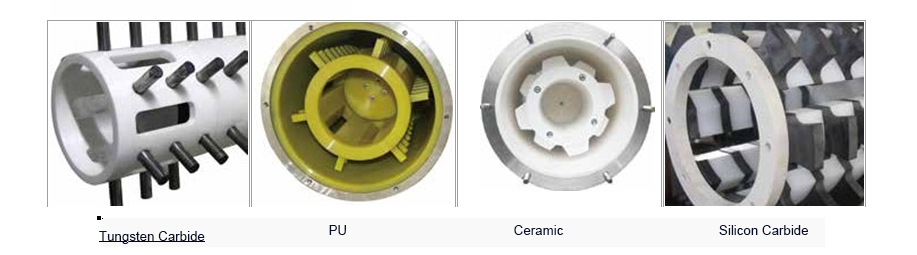

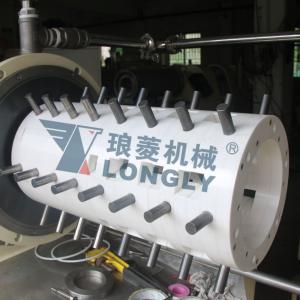

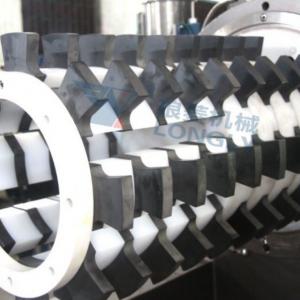

Optional Shaft and Pins:
Technical Date
| Model | Volume of Grinding Chamber(L) | Motor Power(KW) | Output Capacity(L/h) | Media Size(mm) | Weight(kg) | Dimension(mm) |
| NT-V0.6 | 0.6 | 2.2 | 0.5-2 | 0.05-2.0 | 68 | 480*460*550 |
| NT-V1 | 1 | 3.7 | 0.6-4 | 0.1-2.0 | 120 | 520*460*620 |
| NT-V6 | 6 | 15 | 300 | 0.1-2.0 | 500 | 1300*710*1600 |
| NT-V10 | 10 | 22 | 500 | 0.05-2.0 | 1280 | 1430*860*1780 |
| NT-25 | 25 | 37 | 2000 | 0.05-2.0 | 1600 | 1830*950*1800 |
| NT-V30 | 25 | 45 | 2200 | 0.1-2.0 | 1800 | 1830*950*1850 |
| NT-V60 | 60 | 75 | ≥2500 | 0.2-2.0 | 3480 | 2230*1050*2200 |
| NT-V150 | 150 | 160 | ≥4000 | 0.2-2.0 | 6600 | 2900*1400*2600 |
| NT-V300 | 300 | 315 | ≥8000 | 0.2-2.0 | 9500 | 3700*1800*3200 |
| NT-V400 | 400 | 355 | ≥8000 | 0.3-2.0 | 11000 | 3800*1600*2850 |

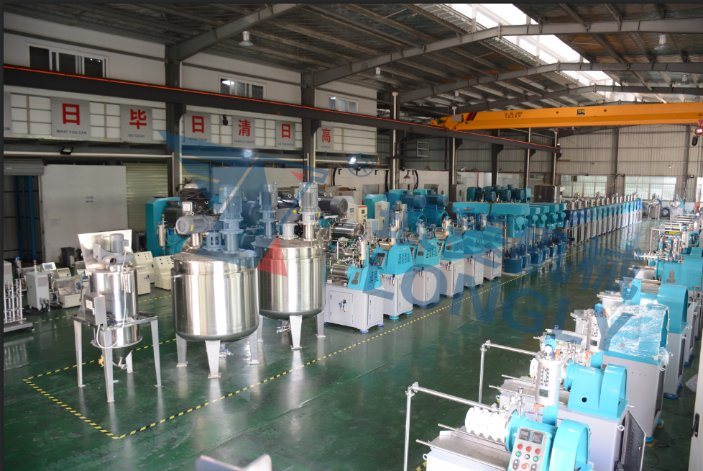

Factory:
