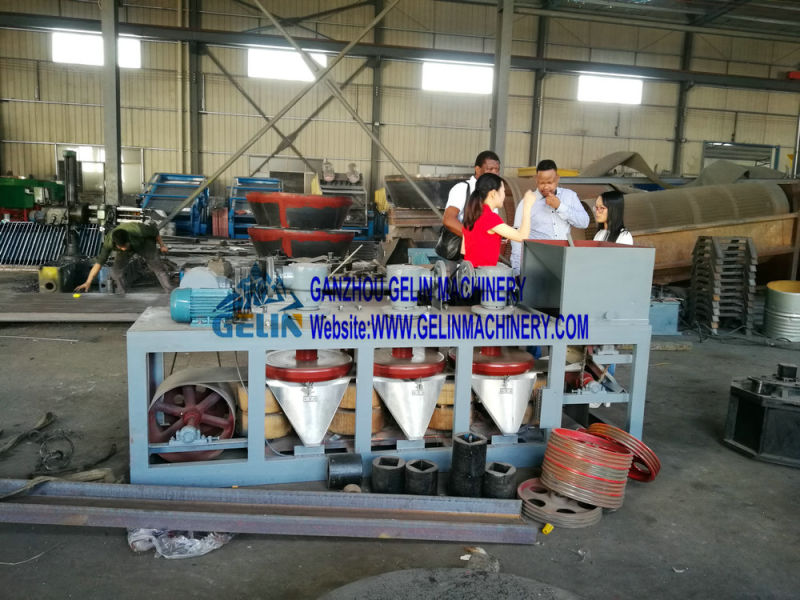

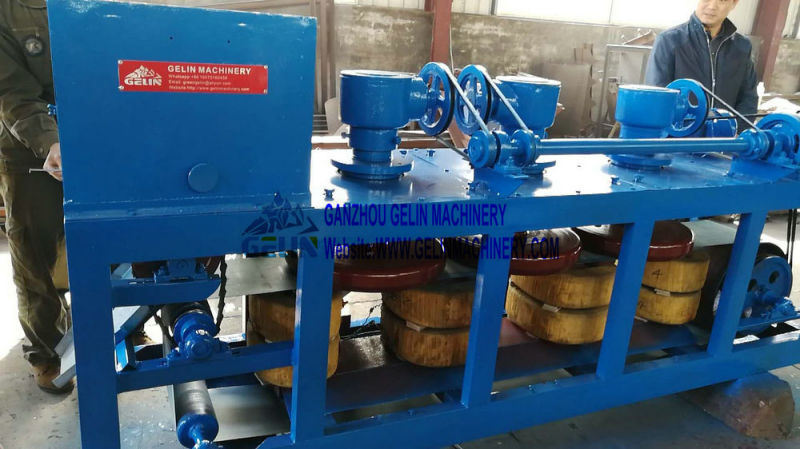

Electromagnetic Single-Disc High-Intensity Electrostatic Magnetic Separator for monazite & tungsten ore separation.
Working Principle
This machine consists of two sections, i. E. Host unit (mechanical) and electrical unit (control cabinet). When the minerals to be separated are loaded into the bin, adjust the clearance between magnetic disc tooth tip and conveying belt to a desirable range (generally about 1mm) and adjust the DC current of control cabinet to appropriate value (generally 4 6 A), depending on the mineral properties, particle size and separation requirements. Feed the materials into the permanent magnetic feeding drum, where the high-conductivity minerals will be removed. Through a feeding plate, the minerals will be uniformly sprayed onto the belt conveyor (The mineral thickness generally between 0.2 0.8mm). When the machine is running, the belt conveyor will send the minerals down below the magnetic disc, where the paramagnetic minerals will be soon absorbed onto the tip of magnetic teeth. When the magnetic disc rotates to the low-intensity magnetic area, they will fall into the concentrate bin under the function of their gravity weight and centrifugal force. The diamagnetic minerals will be conveyed to the tailings bin via belt conveyor and discharged).
Application
This equipment is mainly used for dry separation of weak magnetic minerals, e. G. Ilmenite, Monazite, Tin, Tungsten, titanium, manganese and rare earth elements, which have a specific magnetization strip >40× 10
Technical Specifications
Processing capacity: 1~1.7(t/h)
Particle Size of Processing: <5mm
Magnetic Field Intensity: 18000guass
Diameter of Magnetic Disc: 885mm
Rotating Speed of Magnetic Disc: 38(r/min)
Speed of Belt Conveyor: 19 (m/min)
Exciting Current: 0~9A
Exciting Coil: 8~10 (double glass fiber round copper wire)
Exciting Power: 0~2kw
Coil Temperature: <80° C
Complete Power Consumption: 4 kilowatts
Power Supply: Three-phase four
Working Length: Continuously
Overall Size: 2540× 1380× 2100mm
Weight: 2800kg
Remarks:
In order to find the suitable machine for you, please kindly inform us the following information:
1). What type is your mining? Is it rock stone? Or it is sand?
2). What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to start?
4). What is the ingredient of the raw ore? How much percent % of each minerals?
5). Is there any analysis report? If yes, please send to me.
Q1. Are you a manufacturer or trading company?
A: We are a real manufacturer of mining equipments. Welcome to visit us at any time!
Q2. Where is your factory located? How can I visit there?
A: Our factory located at: Ganzhou city, Jiangxi province, China.
You can take airplane from your country to Guangzhou/Shanghai /Beijing airport, China, then, flight to Ganzhou Huangjin Airport. We will pick you up at Ganzhou airport.
Q3. Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. Etc.
Q4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of GELIN equipments is one year. And of course we will supply te spare parts for you for life-long time at lowest cost.
Q5. If i need the complete mineral processing line. Is GELIN able to help us build it?
Yes, we can help you combine a complete mineral processing line. And give you related professional advices as long as you need. We had already build many mining projects in China & Overseas. GELIN can set a complete processing line just as you require.
