99% Recovery Ratio Centrifugal Separator for Gold Washing and Separating
| Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 |
| Feeding Capacity(t/h) | 0-0.6 | 2-3 | 8-12 | 35-45(solids) | 70-80 |
| Fluidization water Required(m 3 /h) | 2-3 | 3-5 | 7-10 | 30-36 | 55-80 |
| Slurry Water Required(m 3 /h) | 1.5-4 | 5-7 | 8-12 | 35-50 | 70-120 |
| Feeding Density(%) | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 |
| Feeding size(mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-5 |
| Concentration Cleaning Up Cycle | Vein gold 1-3 Hours Placer gold " 2-6 Hours | ||||
| Concentrate weight(kg) | 2 | 10-20 | 30-40 | 60-70 | 80-90 |
| Power Requirements(Kw) | 0.75 | 1.5 | 4 | 11 | 22 |
| Approximate shipping weight(Kg) | 145 | 400 | 1000 | 1500 | 2000 |
| Approximate created shipping Dimensions (mm) | 790*785*790 | 1180*1140*1250 | 1970*1670*1750 | 2300*1800*2200 | 2400*2000*2300 |
1). High recovery ratio 90% above
2). Application: Alluvial gold, river sand gold, rock stone gold, fine sand gold
3). Guarantee 12 months
4). Produced by China biggest gravity mining machine factory.

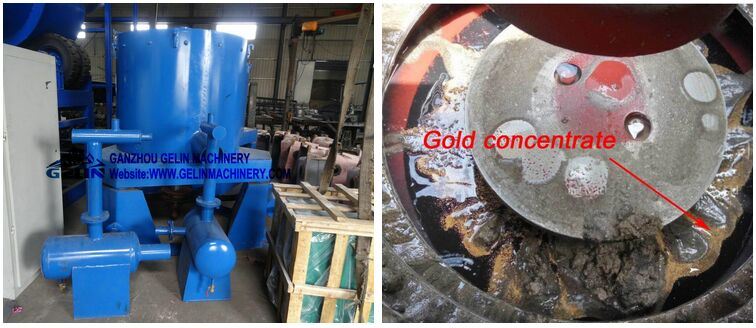

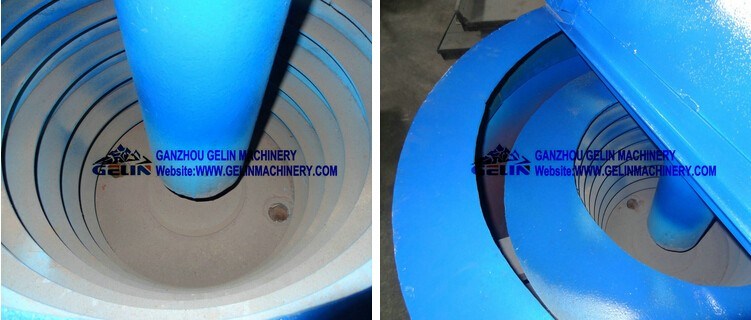

Detail Photos

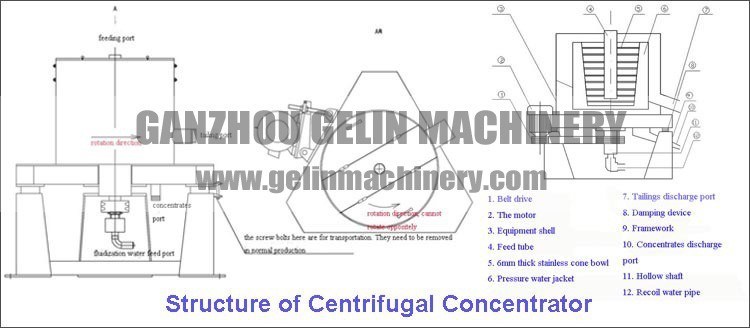

Structure
Centrifuge is kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Four models are available. Application shows that the recovery can be as high as 99%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a milling size of 0.074mm, the recovery for the natural gold is expected up to 98%, For that natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours, and the upgrade ratio is up to 1, 000 times. The equipment is patented in China.

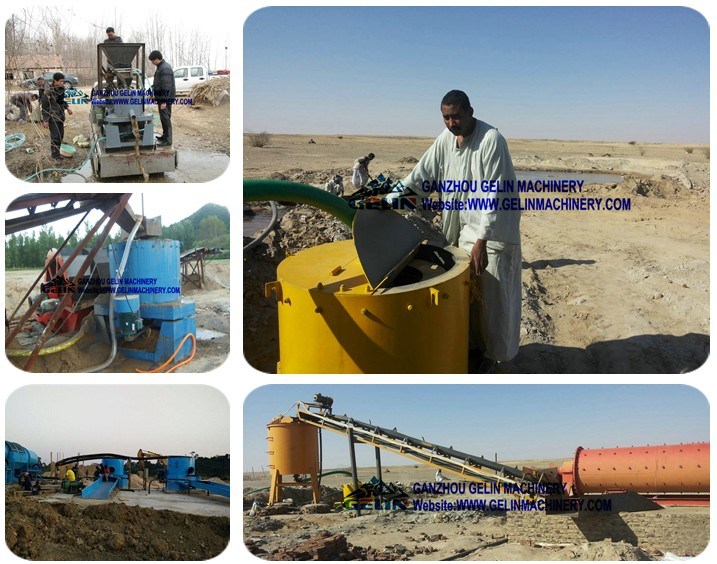

Product Application
The STL Centrifuge will separate any heavy material from any light material so long as there is sufficient difference in the densities of the individual particles in question. The Concentrator can treat particle sizes from below 10 microns up to a maximum of 6mm and is most commonly used for recovery in Gold and Platinum. Other recovery uses include Mercury, Palladium, Tantalum, Copper, Silver and Diamond Indicator Minerals.
Rugged design and a high degree of quality manufacturing ensures that every Concentrator will provide many years of reliable, trouble-free operation in even the most severe operating environments.
