Basket Pipeline Strainer Filter T Type Dn150

Product DescriptionBasket filter is to remove a small amount of solid particles in liquids of small equipment, the normal work of the compressor, pumps, meters and other equipment, when the flow is provided with a certain size filter cartridge, the

Technical Feature

Tianjin, China

20000 Piece/Pieces Per Year

L/C, T/T, D/P, Western Union, Paypal, Money Gram

Oil

Ordinary Temperature

Stainless Steel

Send Standard Inquiry

Add Inquiry List

$1~520

PRIMARY PARAMETERS

Model NO.

strainer

Function

Ddcv Double Lobe

Sealing Form

Bellows Globe Valve

Flow Direction

Reversing

Standard

Application

Industrial Usage

Trademark

HBSR

Transport Package

Wooden Crate

Specification

Customized

Origin

Hebei, China

DETAIL DESCRIPTION

Product Description

Basket filter is to remove a small amount of solid particles in liquids of small equipment, the normal work of the compressor, pumps, meters and other equipment, when the flow is provided with a certain size filter cartridge, the impurities are blocked, and clean filtrate from the filter outlet discharge, when cleaning, as long as can be disassembly of the filter cylinder is removed, you can reload after treatment. Therefore, the use of the maintenance is very convenient.
Division I production of the blue filter with straight through flat and straight through the bottom of the arc.

Main technical parameters
1, Basket filter element material: filter box, filter are stainless steel.
2, flange standard: PN1.0 HG20592-2009 when customers need to use GB, SH, JB, ANSI, DIN, JIS and other standards or change the pressure level, please indicate in the order contract.
3, manufacturing, testing standards: HG/T21637-1991, SH/T3411-1999 standard. Customer specified standard.
4, shell material: carbon steel CS, brass H62, carbon steel /PTFE, stainless steel 304, 304L, 316, 316L, special material Ti.
5, connection: thread connection, threaded, butt welding connection, socket welded connection.
6, flange type: plate welding, welding neck, with a neck butt welding, threaded flange, butt welding ring loose set of flange, weld ring loose set of flange, socket welding flange.
7, the flange seal type: plane, sudden surface, uneven surface, ring joint face, tongue and groove face.

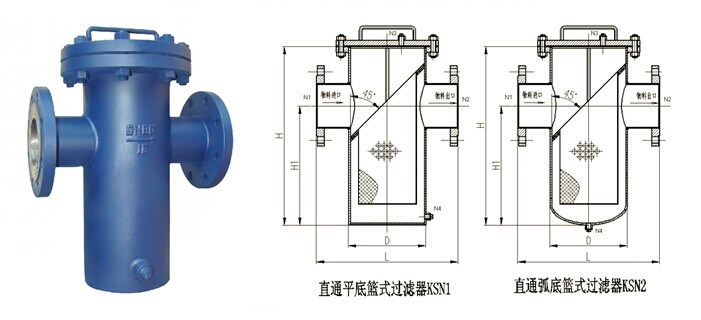

Main dimension

DN	D	L	H1	H	Effective Filtrate Area m²
25	76	180	160	260	0.0162
32	76	200	160	270	0.0162
40	108	260	170	300	0.0315
50	108	260	170	300	0.0315
65	140	330	240	360	0.0461
80	159	340	250	400	0.0590
100	219	400	300	470	0.1077
125	273	480	360	550	0.1759
150	273	500	420	630	0.2910
200	325	560	530	780	0.4076
250	426	660	640	930	0.5016
300	450	750	840	1200	0.6800
350	500	800	1010	1520	0.7200
400	550	840	1150	1720	0.8120
450	600	960	1310	1920	0.8900
500	700	1080	1440	2110	0.9502

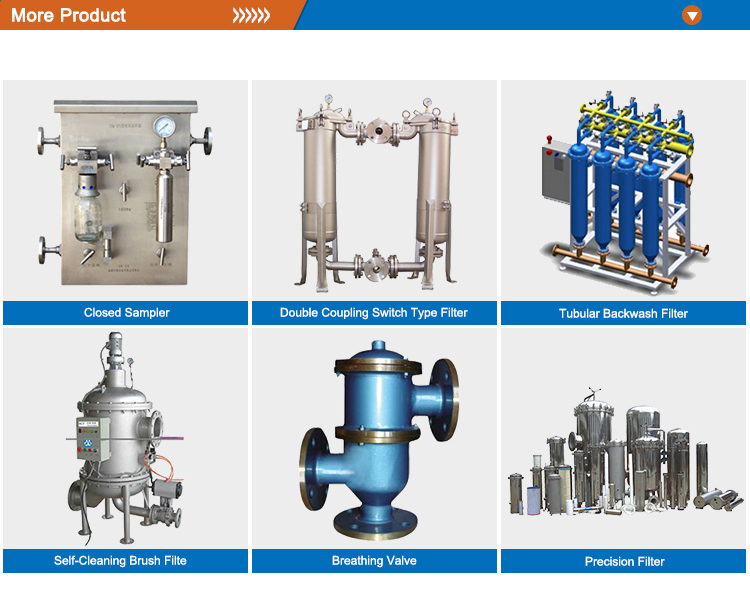

Product Mix

Related Products

Basket Pipeline Strainer Filter T Type Dn150

FAQ
Q1 :What kind of company are you?
A1:We are a professional engaged in a variety of power tools research and development, production, sales and construction services as one of the modern high-tech enterprises.

Q2:Can i get free samples?
A2:We could send you the samples ,most samples are free to you,but transport fee should be paid by you.

Q3:How long is your delivery time?
A3: Normally 10-25 days after deposit made.If you are urgent it can be negotiable.

Q4:What's the MOQ?
A4:Different products the MOQ is different.Please contact with our salesman.If we have stocking,we can make for you small quantity.If you need to make customized,the MOQ should be according to our production.
