ISO2531 /En545 Ductile Cast Iron Pipe Pipe System for Water Supply

1. Deascription: 1). Material: Ductile cast iron2). Size: DN80-DN26003). Standard: ISO2531/EN545/EN5984). Length/pc: 5.7m/6m5). Class: K7/k9/class c6). Joint type: T-type, flange-type, K-type7). Coat: Black bitumen liner / epoxy resin over coat la

Technical Feature

Tianjin, China

10000ton/Month

L/C, T/T, D/P

High Temperature Piping

High Pressure Piping

Carbon Steel

Send Project Inquiry

Add Inquiry List

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.

SR-DUCTILE IRON PIPE

Cross-Section Shape

Round

Connection Type

Welding

Test

100% Water Pressure Test

Trademark

Shangrun

Transport Package

Standard Export Package

Specification

K9 K11 ClassC

Origin

Hebei, China

HS Code

7303009000

DETAIL DESCRIPTION

1. Deascription:
1). Material: Ductile cast iron
2). Size: DN80-DN2600
3). Standard: ISO2531/EN545/EN598
4). Length/pc: 5.7m/6m
5). Class: K7/k9/class c
6). Joint type: T-type, flange-type, K-type

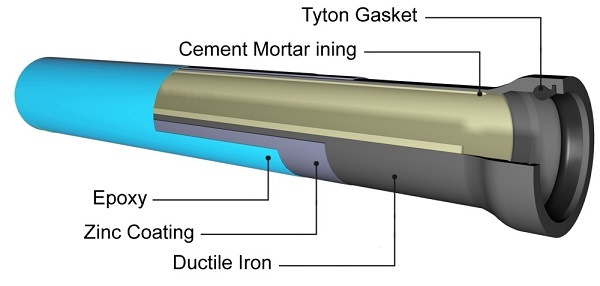

7). Coat: Black bitumen liner / epoxy resin over coat layer.
8). Zinc coat: Outside sprayed with zinc (in accordance with ISO8179, not less than 130 g/m2)
9). Cement lining: Inside with cement mortar lining as per ISO4179.
10). Tensile strength: Above 420 MPA
11). Yield strength: Above 300 MPA
12). Brinell hardness: Within 230HBW
13). Density: Above 7g/cm3
14). Spheroidizing grade: Grade 1-3
15). Rubber gaskets: SBR /EPDM/ Neoprene
16). MOQ: 1X40'GP
17). Delivery time: Below 1000 tons, 3 weeks. Above 1000 tons, depend on your quantity.

	Test pressure (Bar) >=15second
Nominal Diameter	Ductile Iron PIipe (k9)	Ductile Iron PIipe (C class)	Ductile Iron Fitting
80-300	50	C40	25
350-600	40	C30	16
700-1000	32	C25	10
1100-1200	25		10
1400-1600	25		10
1800-2000	25		10
2100-2600	18		10

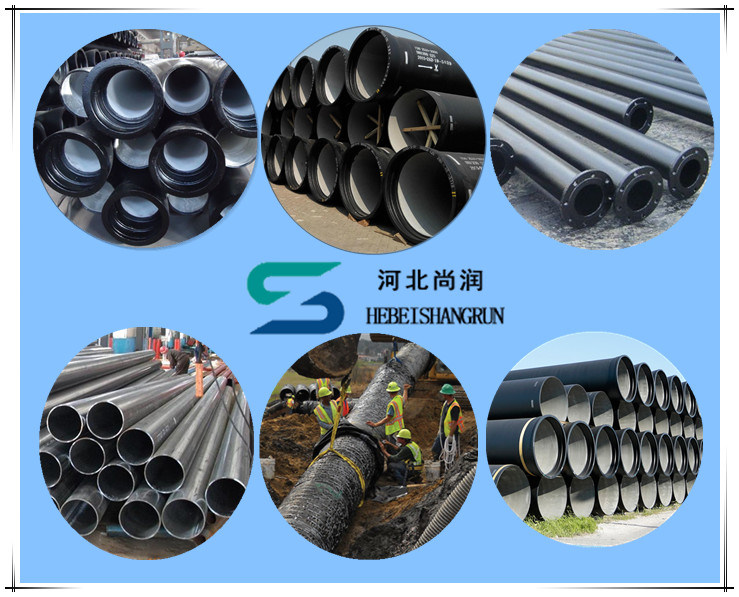

2. Products photo

ISO2531 /En545 Ductile Cast Iron Pipe Pipe System for Water Supply

3. Why choose Shangrun Flange?

) Lloyd's Register of Shipping approved
) Flexible payment with T/T, L/C, Western Union
)Competitive price from our own factory with best quality and service
)Nearest seaport and convenient transportion
)Effective service team online for 24 hours
)More than 10 years export experiences
)Feedback within 24 hours

4. Sales and Marketing

ISO2531 /En545 Ductile Cast Iron Pipe Pipe System for Water Supply

5. FAQ:
1. What kind of material is the product material?
Carbon Steel, Stainless Steel, Alloy Steel
2. What kinds of package can you provide?
Wooden case or iron frame plywood case for FRP flange, GRP flange, fiberglass flange
3. What's you monthly production capacity?
2000MTS/ Month
4. Which is the nearest port?
Tianjin Sea Port
5. Do you accept third party inspection?
We accept.
Please send your message to us if you have any questions or inquiries, we will reply you within 12 hours!
