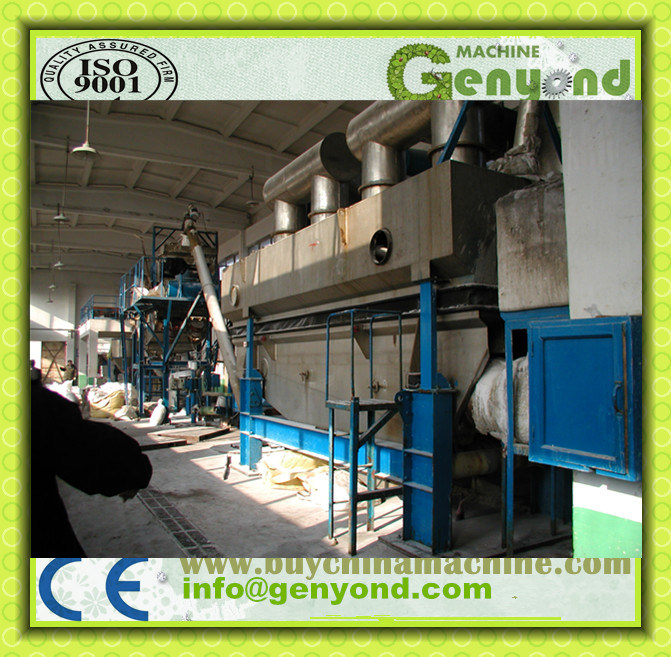

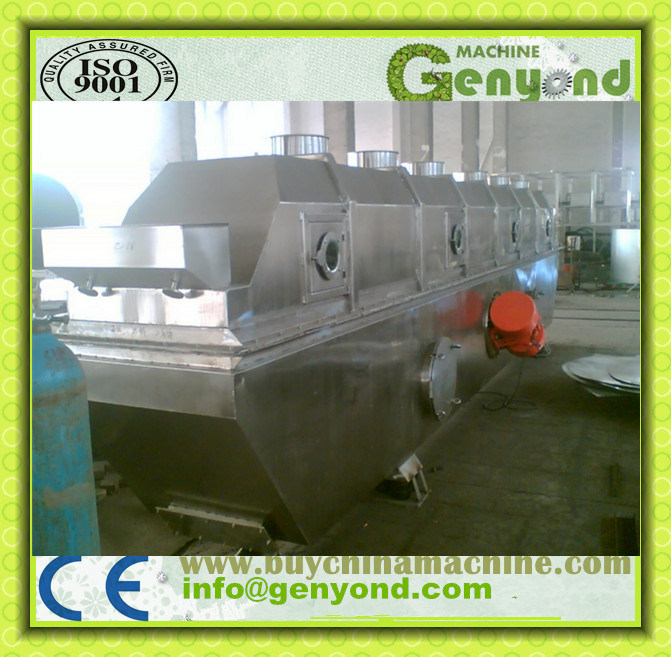

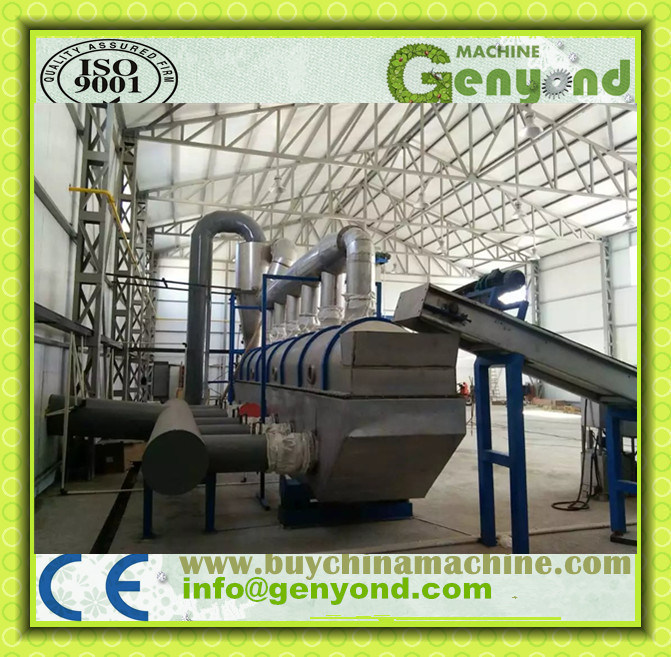

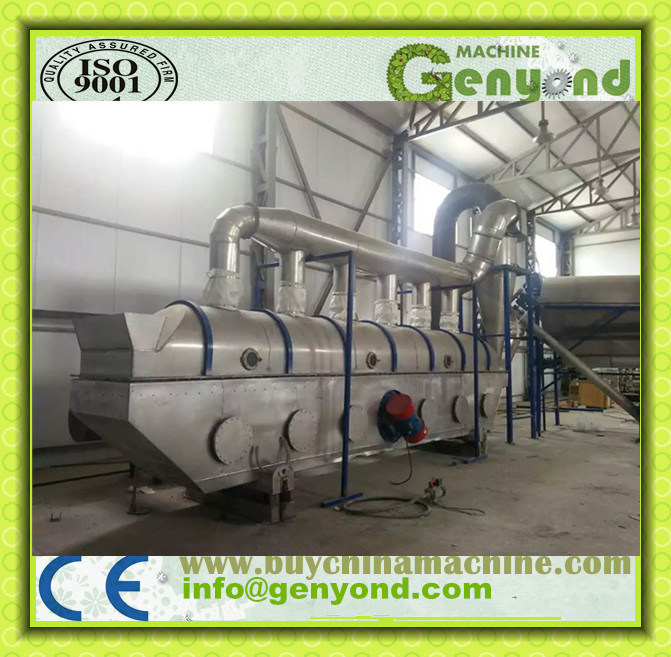

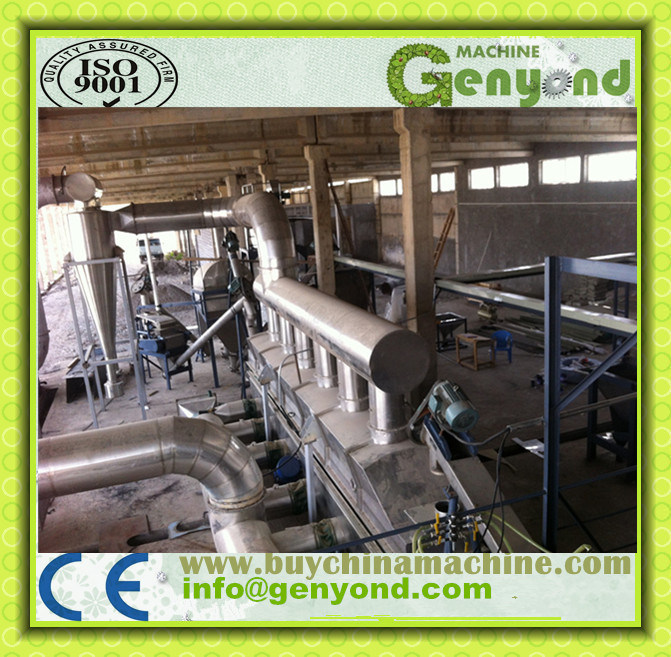

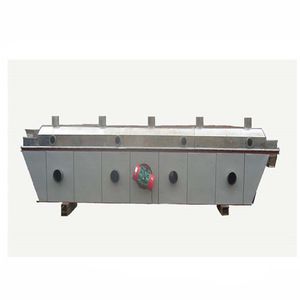

ZLG Vibrating Fluid Bed Dryer
Introduction:
The Vibrating Fluid Bed Dryer is widely used in chemical industry, light industry, medicine, food and beverage, plastics, grain and oil, slag, salt, sugar, and other industries for powder and granular materials' cooling,humidification,drying.
Principle:
Raw material is fed into the fliud bed dryer from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration.The hot air passes through fluidized-bed and carries out heat exchange with damp raw material.Then the damp qir is exhausted out through cyclone separator and duster the dry raw material is discharged through discharge outlet.
Main Technical Parameter:
Other Details:
1.Package: wooden cases for sea transportation
2.Delivery time: 30 working days after receiving the deposit
3.Installation : engineers available for installation and training overseas
4.Guarantee : 12 months after it is sent out
Plz feel free to contact me for any further information.
Introduction:
The Vibrating Fluid Bed Dryer is widely used in chemical industry, light industry, medicine, food and beverage, plastics, grain and oil, slag, salt, sugar, and other industries for powder and granular materials' cooling,humidification,drying.
Principle:
Raw material is fed into the fliud bed dryer from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration.The hot air passes through fluidized-bed and carries out heat exchange with damp raw material.Then the damp qir is exhausted out through cyclone separator and duster the dry raw material is discharged through discharge outlet.
Main Technical Parameter:
| Model(ZLG) | Fluid bed area(m2) | Inlet air temperature (ºC) | Outlet air temperature(ºC) | Capacity of vaporized moisture (kg/h) | Vibration Motor | |
| Model | Power (kw) | |||||
| 3×0.30 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8×2 |
| 4.5×0.30 | 1.35 | 70-140 | 40 | 35-50 | ZDS31-6 | 0.8×2 |
| 4.5×0.45 | 2.025 | 70-140 | 40 | 50-70 | ZDS32-6 | 1.1×2 |
| 4.5×0.60 | 2.7 | 70-140 | 40 | 70-90 | ZDS32-6 | 1.1×2 |
| 6×0.45 | 2.7 | 70-140 | 40 | 80-100 | ZDS41-6 | 1.5×2 |
| 6×0.60 | 3.6 | 70-140 | 40 | 100-130 | ZDS41-6 | 1.5×2 |
| 6×0.75 | 4.5 | 70-140 | 40 | 120-140 | ZDS42-6 | 2.2×2 |
| 6×0.90 | 5.4 | 70-140 | 40 | 140-170 | ZDS42-6 | 2.2×2 |
| 7.5×0.60 | 4.5 | 70-140 | 40 | 130-150 | ZDS42-6 | 2.2×2 |
| 7.5×0.75 | 5.625 | 70-140 | 40 | 150-180 | ZDS51-6 | 3.0×2 |
| 7.5×0.90 | 6.75 | 70-140 | 40 | 160-210 | ZDS51-6 | 3.0×2 |
| 7.5×1.2 | 9 | 70-140 | 40 | 200-260 | ZDS51-6 | 3.0×2 |
Other Details:
1.Package: wooden cases for sea transportation
2.Delivery time: 30 working days after receiving the deposit
3.Installation : engineers available for installation and training overseas
4.Guarantee : 12 months after it is sent out
Plz feel free to contact me for any further information.
