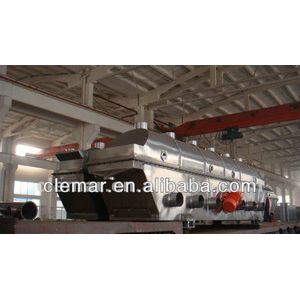

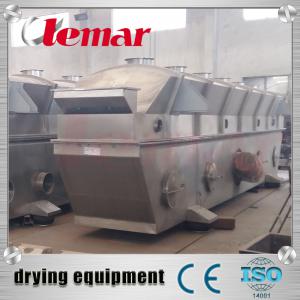

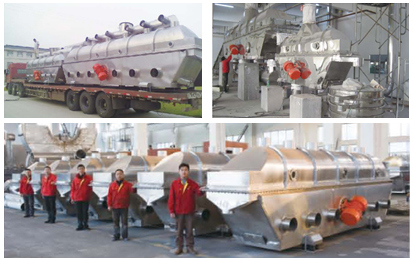

ZLG Vibrating Fluid Bed Dryer
I. Features of ZLG Vibrating Fluid Bed Dryer
Quick-open structure will be adopted in it, the upper bed can be moved easily and it is convenient for cleaning.
The bed board was made with laser punching technology, it effectively avoid deformation by common punching technology.
The lower bed is supported by stainless steel seamless tube. It's more strong.
Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary dryer ,the energy can be saved about 30%.
The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
The fluidized state is stable and no dead angle and phenomenon of broken out.
It is good in regulation and wide in suitability. The thickness and moving speed in the machine and the amplitude change speed of the material can be steeples regulated.
It is small for damaging the surface of raw material. The machine can be used for drying materials that are easy broken. The drying effect can not be affected even materials gave anomalous shape.
It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure. So that keeps the environment clean.
II. Work principle of ZLG Vibrating Fluid Bed Dryer
Raw material is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out heat exchanging with damp raw material. Then the damp air is exhausted out through cyclone separator and duster, and the dry raw material is discharged through discharge outlet.
III. Application
1. Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on.
2. Foodstuff and construction material industries: distiller's grains, monosodium, edible sugar, edible salt, mine residue, bean, seeds and so on.
3. Also can be used for material cooling, humidification etc.
Flow chart
Technical parameters:
| Type | Fluidized-bed (M2) | Inlet air temperature(°C) | Outlet air temperature (°C) | Evaporate capacity (kg/h) | Vibration motor | ||
| Type | Power (kw) | ||||||
| ZLG3×0.30 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8×2 | |
| ZLG4.5×0.30 | 1.35 | 70-140 | 40-70 | 35-50 | ZDS31-6 | 0.8×2 | |
| ZLG4.5×0.45 | 2.025 | 70-140 | 40-70 | 50-70 | ZDS32-6 | 1.1×2 | |
| ZLG4.5×0.60 | 2.7 | 70-140 | 40-70 | 70-90 | ZDS32-6 | 1.1×2 | |
| ZLG6×0.45 | 2.7 | 70-140 | 40-70 | 80-100 | ZDS41-6 | 1.5×2 | |
| ZLG6×0.60 | 3.6 | 70-140 | 40-70 | 100-130 | ZDS41-6 | 1.5×2 | |
| ZLG6×0.75 | 4.5 | 70-140 | 40-70 | 120-140 | ZDS42-6 | 2.2×2 | |
| ZLG6×0.9 | 5.4 | 70-140 | 40-70 | 140-170 | ZDS42-6 | 2.2×2 | |
| ZLG7.5×0.6 | 4.5 | 70-140 | 40-70 | 130-150 | ZDS42-6 | 2.2×2 | |
| ZLG7.5×0.75 | 5.625 | 70-140 | 40-70 | 150-180 | ZDS51-6 | 3.0×2 | |
| ZLG7.5×0.9 | 6.75 | 70-140 | 40-70 | 160-210 | ZDS51-6 | 3.0×2 | |
| ZLG7.5×1.2 | 9 | 70-140 | 40-70 | 200-260 | ZDS51 | 3.0×2 |
FAQ
1.Q:Do you have factories?
A:Yes,we have factories in Changzhou City on drying machine.
2.Q:How is the progress for an new order?
A:1) we will provide pre-sale service, it is free.Just contact us ,and tell us what you want to dry, and capacity you need and some necessary conditions, our sales and technical people will give the best suggestion for you.
2) Once you have confirm,or if you like, welcome to visit our factories.You can sign the contact with us, and pay deposit.
3)After deposit, we will send you the drawing of each part, and confirm with you.If okay, we begin producing.
4)When completed, we will send the picture or video to you for confirmation.Or you can come to check.If all okay,payment of balance will be needed.
5)We send the machine and you will get the machine soon.
1.Q:Do you have factories?
A:Yes,we have factories in Changzhou City on drying machine.
2.Q:How is the progress for an new order?
A:1) we will provide pre-sale service, it is free.Just contact us ,and tell us what you want to dry, and capacity you need and some necessary conditions, our sales and technical people will give the best suggestion for you.
2) Once you have confirm,or if you like, welcome to visit our factories.You can sign the contact with us, and pay deposit.
3)After deposit, we will send you the drawing of each part, and confirm with you.If okay, we begin producing.
4)When completed, we will send the picture or video to you for confirmation.Or you can come to check.If all okay,payment of balance will be needed.
5)We send the machine and you will get the machine soon.
