Citric Acid Vibrating Fluid Bed Dryer

PRIMARY PARAMETERS

Condition

New

Type

Fluid Bed Drying Equipment

Place of Origin

Jiangsu, China (Mainland)

Brand Name

Lemar

Model Number

ZLG

Voltage

as cusomer's demand

Power(W)

bsed on design

Dimension(L*W*H)

10mx1mx2m

Weight

1200kg

Certification

ISO9001/ISO14001/CE/BV

Warranty

3 YEARS

After-sales Service Provided

Engineers available to service machinery overseas

Material

SUS304

Control system

PLC Touch screen

Heating source

Steam, oil, gas,coal,wood

Working type

continuous work

DETAIL DESCRIPTION

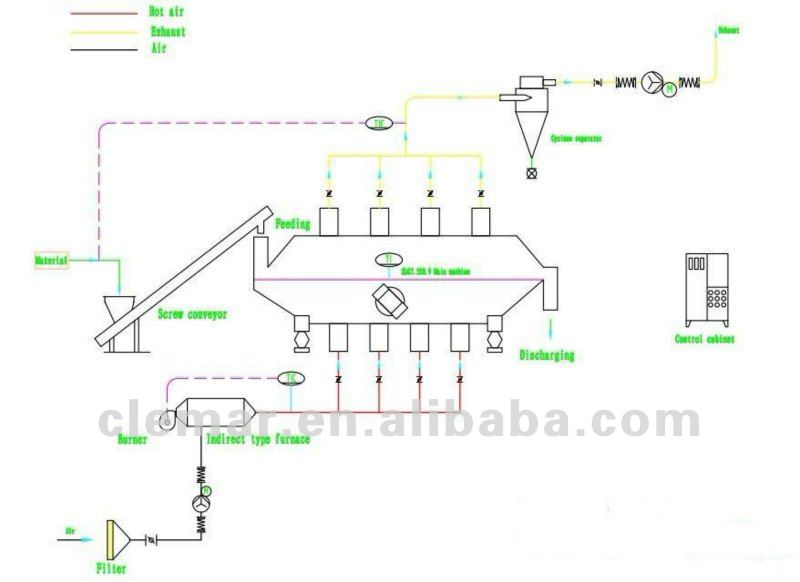

In chicken essence production line, ZLG vibrating fluid bed dryer is widely used for drying. Working process of vibrating fluid bed dryer is as follows:

General description of ZLG Vibrating Fluid Bed Dryer:

Vibrating fluid bed dryer is widely used for operation of drying, cooling and damp increasing (or carry out at the same time) for powder or granule materials. Material is fed into the machine from feeding inlet, and moves forward continuously along with the level of fluid bed under the action of vibration force. Hot air passes through fluid bed and carries out heat exchanging with damp material. Then the damp air is exhausted out by exhaust fan, some fine powder is collected by cyclone separator and dust remover, and dried product is discharged from discharging outlet.

2. Features of ZLG Vibrating Fluid Bed Dryer

Adopts new type quick-open structure for upper bed and bottom bed. Upper bed can be moved easily. So it is very convenient to clean and wash the drying system.
Bed plate adopts laser punching, it can avoid the deformation in common punching process effectively.
Bottom bed adopts stainless steel seamless tube for supporting, the structure of bed is more stronger and make the life of equipment longer.
Material is heated uniformly, heat exchanging is full and drying intensity is high. Energy can be saved about 30%.
Vibration source is vibrating motor. It features constant operation, convenient maintenance, low noise and long life.
Fluid state is stable, there is no phenomenon of gap or blowing out.
There is less damage to the surface of material. It can be used for drying material that is easy to broken. The work efficiency is not affected even if the granule of material is irregular.
Adopts full sealed structure. It effectively avoids cross infection between and air, the operation environment is clean.

3. Application of ZLG Vibrating Fluid Bed Dryer:

Pharmaceutical and chemical industries: All kinds of press tablet and granules, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on.

Foodstuff industry: Distiller’s grains, monosodium, edible salt, mine residue, bean seed, mushroom essence, chicken essence, desiccated coconut and so on.

4. Technical parameters of ZLG Vibrating Fluid Bed Dryer:

Model
Fluid bed(M²)
Inlet air temperature(°C)
Outlet air temperature (°C)
Evaporate capacity
(kg/h)
Vibration motor
Model
Power (kw)
ZLG3×0.30
0.9
70-140
40-70
20-35
ZDS31-6
0.8×2
ZLG4.5×0.30
1.35
70-140
40-70
35-50
ZDS31-6
0.8×2
ZLG4.5×0.45
2.025
70-140
40-70
50-70
ZDS32-6
1.1×2
ZLG4.5×0.60
2.7
70-140
40-70
70-90
ZDS32-6
1.1×2
ZLG6×0.45
2.7
70-140
40-70
80-100
ZDS41-6
1.5×2
ZLG6×0.60
3.6
70-140
40-70
100-130
ZDS41-6
1.5×2
ZLG6×0.75
4.5
70-140
40-70
120-140
ZDS42-6
2.2×2
ZLG6×0.9
5.4
70-140
40-70
140-170
ZDS42-6
2.2×2
ZLG7.5×0.6
4.5
70-140
40-70
130-150
ZDS42-6
2.2×2
ZLG7.5×0.75
5.625
70-140
40-70
150-180
ZDS51-6
3.0×2
ZLG7.5×0.9
6.75
70-140
40-70
160-210
ZDS51-6
3.0×2
ZLG7.5×1.2
9
70-140
40-70
200-260
ZDS51
3.0×2

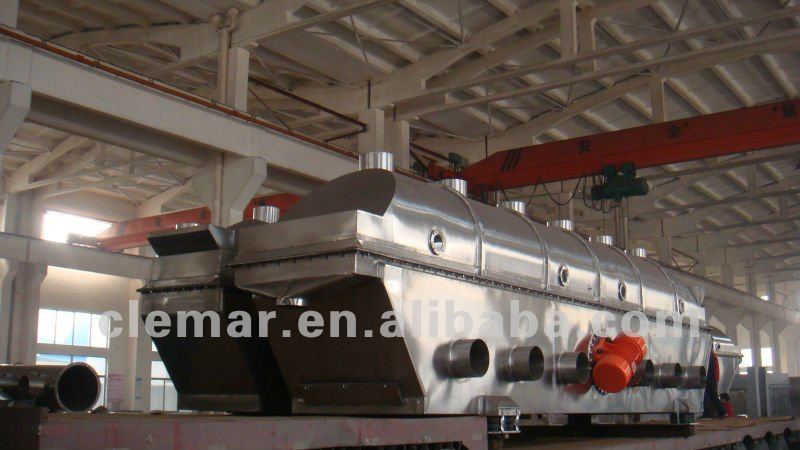

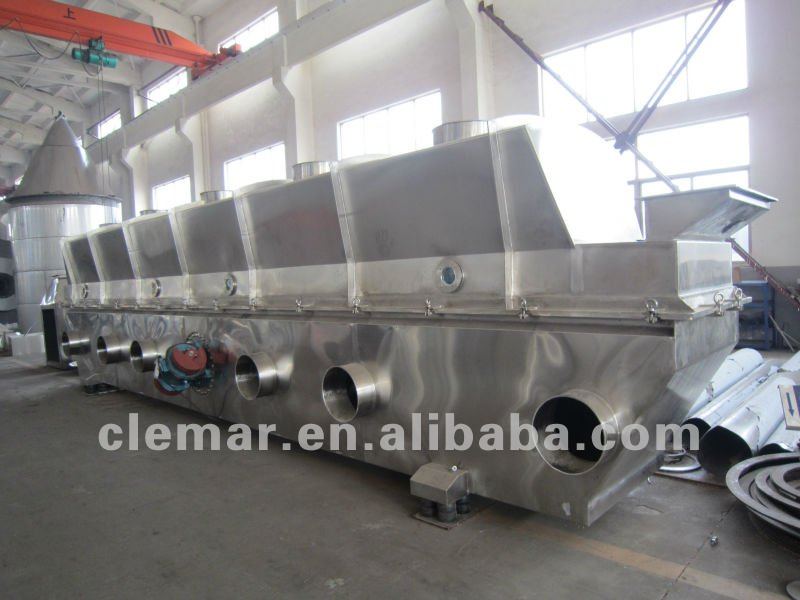

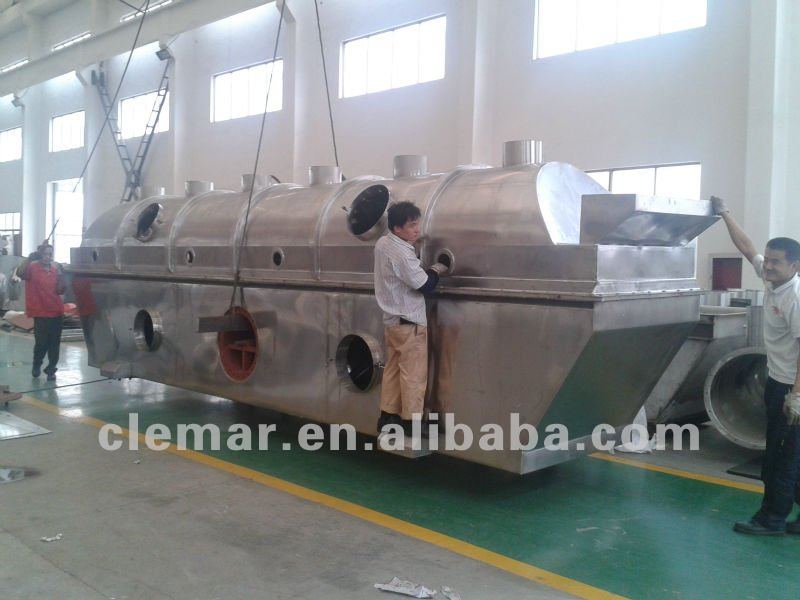

5. Pictures of ZLG Vibrating Fluid Bed Dryer:

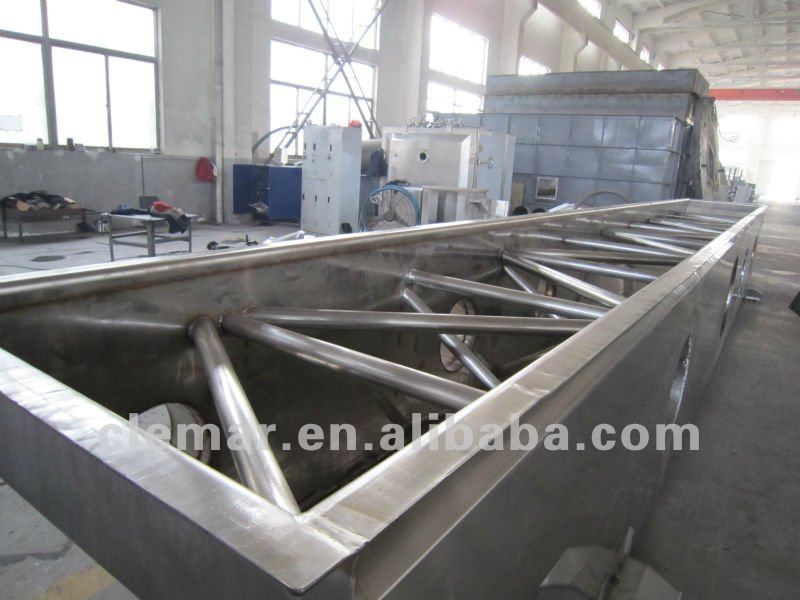

Bottom Bed

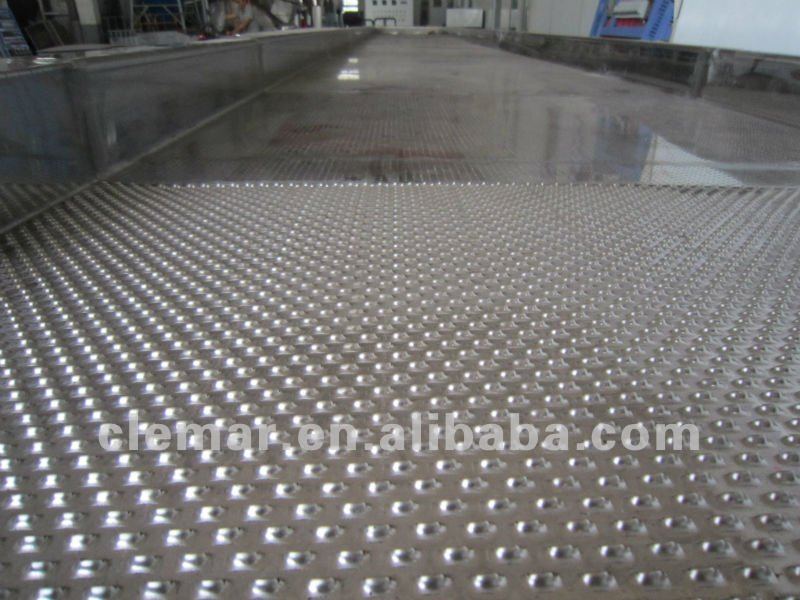

Bed plate
