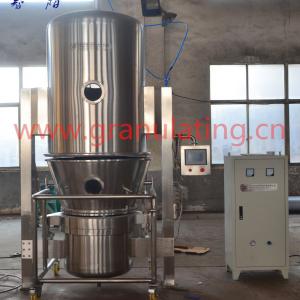

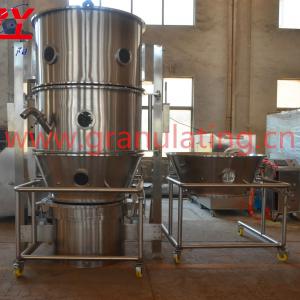

FG Fluid-bed dryer
★ General of applications
FG The machine is suitable for drying powder or granule. In
general, its speed is 10 ~ 20 times of oven.
★ Features of equipment
The mixing and drying of the equipment can be finished in same equipment. The transfer of mass and heat is quick. Because of operation at negative pressure, there is no flying dust. The equipment has no dead corner. It can clean is fully and without cross pollution. Its heating may use steam, or electric heater. It adopts anti-static filtering material. The lift of filtering bag adopts pneumatic operation. So the operation is safe. It meets the requirements of GMP
★Technical Data
★ General of applications
FG The machine is suitable for drying powder or granule. In
general, its speed is 10 ~ 20 times of oven.
★ Features of equipment
The mixing and drying of the equipment can be finished in same equipment. The transfer of mass and heat is quick. Because of operation at negative pressure, there is no flying dust. The equipment has no dead corner. It can clean is fully and without cross pollution. Its heating may use steam, or electric heater. It adopts anti-static filtering material. The lift of filtering bag adopts pneumatic operation. So the operation is safe. It meets the requirements of GMP
★Technical Data
| Specification | 30 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | 800-1000 |
| Volume of container( L ) | 100 | 220 | 300 | 420 | 500 | 670 | 1000 | 1500 | By URS |
| capacity( kg/ batch ) | 30 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | |
| pressure Mpa | 0.4-0.6 | ||||||||
| Consumption of steam( kg/h ) | 70 | 140 | 169 | 211 | 241 | 282 | 366 | 465 | |
| pressure Mpa | 0.6 | ||||||||
| Consumption of compressive air( m 3 /min ) | 0.3 | 0.6 | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 1.1 | |
| Power of fan( KW ) | 5.5 | 11 | 15 | 18.5 | 22 | 22 | 30 | 45 | |
| Temperature( °C ) | normal temperature ~ 120 °C automatism adjust | ||||||||
| Yield of material( % ) | >99 | ||||||||
| Content of final moisture( % ) | 0.2 can dry to 0.2 | ||||||||
| dB Noise | No more than 75dB Separated of fan | ||||||||
| Installation size for reference | The same as FL model |
