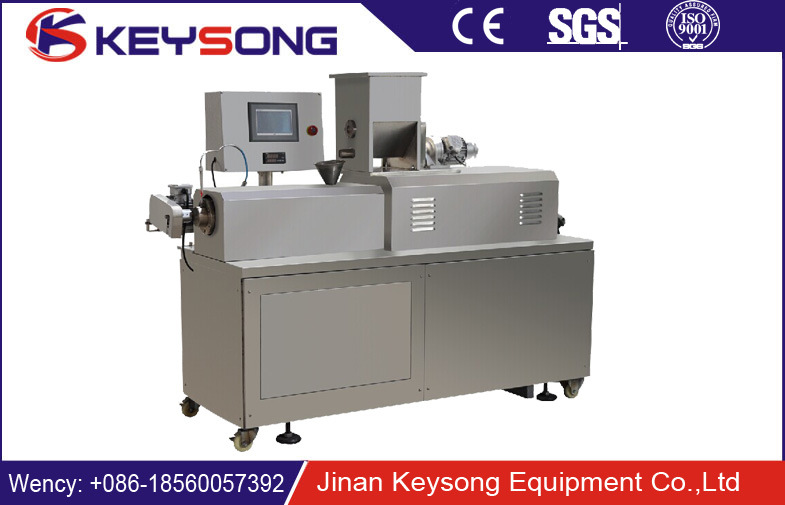

1.The brief introduction of Double screw food extruder:
1)Twin Screw Extruder can use corn flour, wheat flour, rice flour, soya bean meal, peanutmeal, foodstuff, meat powder, fishmeal, and beans etc to produce pet food, fish food, puff snacks food, core filling snacks, TSP, TVP, artificial rice, corn flakes, bread brumb, brealfast cereals etcwith many shapes, like round, ring, tube, bone, flake, etc
2)The Twin Screw Extruder consists of feeding system, extruding system, cutting system, heating system, driving system, lubricating system, water-cooling system and controlling system which has high-perfomance, powerful drive and electricity saving.
3)Automatic lubricating and forced cooling make sure that extruder performs safely and extends using life.
4)Feeding system, extruding system and cutting system all adopt frequency conversation timing to gain powerful drive, stable perform and electricity saving.
5)Screws are made of alloy and processed by special technique to possess high intensity, abrasion and longer using life.
6)By means of designing different structures and slenderness ratios according to needs of products, screw extruding system can meet different technology demands.
Extrusion food samples:

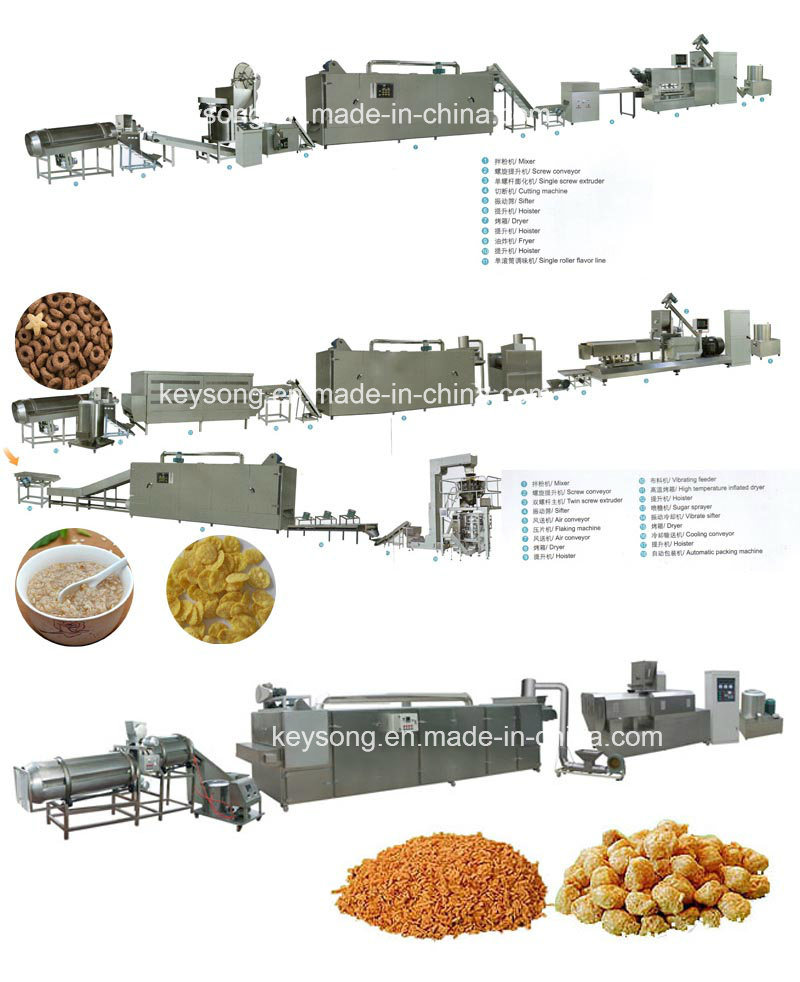

2.The food extruder flow chart:
Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system(optional)
3. Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
Features of machine parts:
1). Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2). Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3). Gearbox with automatic lubrication function, extending gear life.
4). Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely. 5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
5). Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
4.Machines Materials:
All the machines are made by stainless steel
5.Specification of food extruder:
Model | Installed Capacity | Actual Consumption | Main Power | Throughput | Dimension |
| KS65 | 34kw | 28kw | 22kw | 120-150kg/h | 2400*1200*1800 |
| KS70 | 42kw | 30kw | 30kw | 160-200kg/h | 2600*1200*1800 |
| KS85 | 115kw | 65kw | 90kw | 400-500kg/h | 4500*1600*2000 |
| KS90 | 135kw | 91kw | 75kw | 600-900kg/h | 4500*2000*2000 |
| KS100 | 55kw | 30kw | 38kw | 80-100kg/h | 3200*1500*2000 |
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.Double screw extruder
7.FAQ:
1. How about the documents after shipment?Double screw extruder
After shipment, we'll send all original documents to you by DHL/TNT, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2. How long is the delivery time?
For standard machines, it would be20-30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 30-45 days.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4. How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container loading.
