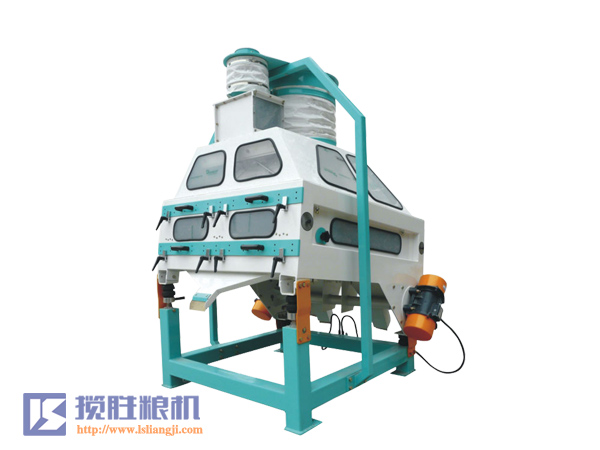

TQSF series stone remover

The TQSF series of stone remover are mainly used for grading, de-sparing, and seed selection of wheat, rice, peanuts, corn, soybeans, etc. The machine has the characteristics of graded sand and gravel, good mud performance, low energy consumption, no dust

Technical Feature

  • The four corners are supported by imported "Austria" rubber springs, and the structure is stable and reasonable.
  • The vibration motor uses the famous brand "Baofei Motor".
  • Use stainless steel to screen and manganese plate to remove debris screen.
  • The lo
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5000~50000

PRIMARY PARAMETERS

Brand name
Lansheng
Application
Removing stone
Process input material
Wheat/paddy/corn
Process output material
-
Place of origin
China
Equipment material
SS & CS
Power (kW)
Depends on the requirement
Weight (kg)
Depends on the requirement
Outer dimension (mm)
Depends on the requirement
Warranty
One year
Delivery
30 days
Main spare parts
-

MODEL SPECIFICATIONS

Model TQSF100a TQSF125a TQSF150a TQSF180a TQSF200a TQSF250a
Screen width(cm) 100 125 150 180 100*2 125*2
Weight(kg) 630 690 750 900 1120 1250
Wind pressure(Pa) 1800 1800 1800 1800 1800 1800
Vibrating frequency(s-1) 15.65-1 15.65-1 15.65-1 15.65-1 15.65-1 15.65-1
Capacity(t/h)(wheat/paddy/corn) 13-15/9-11/8-10 15-18/11-13/10-12 17-22/13-15/12-14 22-28/16-18/15-17 22-28/16-18/15-17 30-36/22-26/20-24
Dimension(mm) 1660*1426*2156 1660*1676*2156 1660*1926*2156 1660*2226*2156 1660*2226*2156 1660*3120*2156
Power(kw) 2*0.55 2*0.55 2*0.55 2*0.55 2*0.75 2*0.75
Wind suction capacity(m3/h) 8100 12000 16000 20000 8100*2 12000*2
Vibrating amplitude(mm) 3-5 3-5 3-5 3-5 3-5 3-5
Sieve angle(°) 5-9 5-9 5-9 5-9 5-9 5-9

DETAIL DESCRIPTION


TQSF series stone remover


Application

The TQSF series of stone remover are mainly used for grading, de-sparing, and seed selection of wheat, rice, peanuts, corn, soybeans, etc. The machine has the characteristics of graded sand and gravel, good mud performance, low energy consumption, no dust and dust, low noise, convenient operation and maintenance. It is best to use an independent wind network when using this machine.


Material

  1. The four corners are supported by imported "Austria" rubber springs, and the structure is stable and reasonable.

  2. The vibration motor uses the famous brand "Baofei Motor".

  3. Use stainless steel to screen and manganese plate to remove debris screen.

  4. The lower screen surface is made of aluminum plate punching and reinforcing net to make the screen surface smoother and the stone removal effect is better.


Appearance treatment

  1. All racks are pickled, phosphatized, and rust-proof.

  2. Spray anti-rust primer, topcoat with brand-name high-grade anti-fading paint.

  3. The surface gloss is good, firm and not easy to fade, paint off, and scratch resistant.
