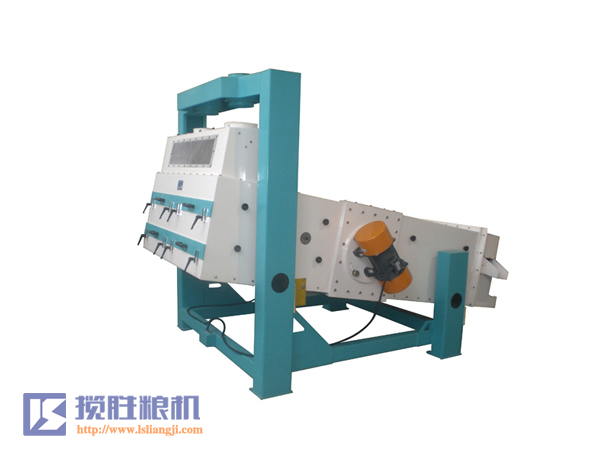

TQL-B type vibrating screen

TQL-B high-efficiency vibrating screen is mainly used for sieving and separating large, medium, small and light debris in grain. Its unique breaking and refining mechanism ensures uniform material entry into the screen surface. It can be connected to TFDZ

Technical Feature

  • Low noise
  • Stably running
  • Large capacity
  • Low consumption
  • Good cleaning effect
  • The whole machine is sealed without dust and external
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2000~10000

PRIMARY PARAMETERS

Brand name
Lansheng
Application
Grain
Process input material
-
Process output material
-
Place of origin
China
Equipment material
CS
Power (kW)
Depends on the requirement
Weight (kg)
Depends on the requirement
Outer dimension (mm)
Depends on the requirement
Warranty
One year
Delivery
30 days
Main spare parts
-

MODEL SPECIFICATIONS

Model TQL-B150*230 TQL-B150*270 TQL-B180*230 TQL-B180*230
Dimension of screen(mm) 1500*2300 1500*2700 1800*2300 1800*2300
Primary clean(t/h) 70 110 90 100
Clean capacity(t/h) 22.5 27 30 35
Power(kw) 2*0.75 2*1.5 2*0.75 2*1.5
Motor model YZU-12-6A YZU-20-6B2 YZU15-6A YZU-20-6B2
Weight(kg) 1280 1720 1420 1550
Dimension(mm) 2768*1980*2050 3160*2260*2280 2768*2320*2050 2768*2520*2050

DETAIL DESCRIPTION


TQL-B type vibrating screen


TQL-B high-efficiency vibrating screen is mainly used for sieving and separating large, medium, small and light debris in grain. Its unique breaking and refining mechanism ensures uniform material entry into the screen surface. It can be connected to TFDZ unpowered vertical suction duct or TFXH series circulating air selector. It is widely used in the separation of granular materials in the fields of rice milling, milling, oil processing, feed, food and chemical industries.


Character

The whole machine has the characteristics of low noise, stable operation, large processing capacity, low energy consumption, good cleaning effect, and the whole machine is closed without dust and external lifting.
