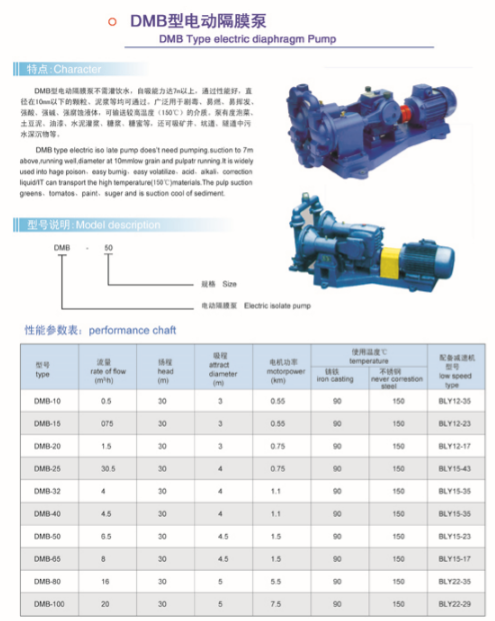

DMB type electric diaphragm pump
DMB type electric diaphragm pump
DMB type electric diaphragm pump doesn't need fill water, the suction capacity is higher than 7m, passing capacity is well, granules, sludge lower than 10mm can pass, widely used in hage poison, easy volatilizaion, easy burning, acid, alkali, strong corre
Technical Feature
- Good passing
- Wide usage
- -
- -
- -
- -
$500~5000
PRIMARY PARAMETERS
Brand name
Longyuan
Application
Pickles, potato slurry, paint, sugar, etc.
Process input material
-
Process output material
-
Place of origin
China
Equipment material
Iron casting, SS
Power (kW)
Depends
Weight (kg)
Depends
Outer dimension (mm)
Depends
Warranty
One year
Delivery
15 days
Main spare parts
-
MODEL SPECIFICATIONS
| Model | DMB-10 | DMB-15 | DMB-20 | DMB-25 | DMB-32 | DMB-40 | DMB-50 | DMB-65 | DMB-80 | DMB-100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Rate of flow(m3/h) | 0.5 | 0.75 | 1.5 | 3.5 | 4 | 4.5 | 6.5 | 8 | 16 | 20 |
| Head(m) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Suction head(m) | 3 | 3 | 3 | 4 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Motor power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 5.5 | 7.5 |
| Temperature of iron casting | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Temperature of stainless steel | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Reducer model | BLY12-35 | BLY12-23 | BLY12-17 | BLY15-43 | BLY15-35 | BLY15-35 | BLY15-23 | BLY15-17 | BLY22-35 | BLY22-29 |
