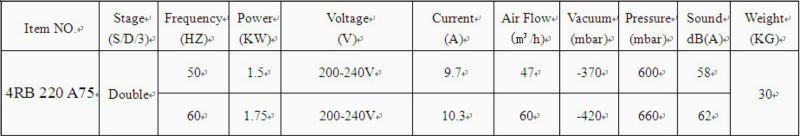

PARAMETERS:

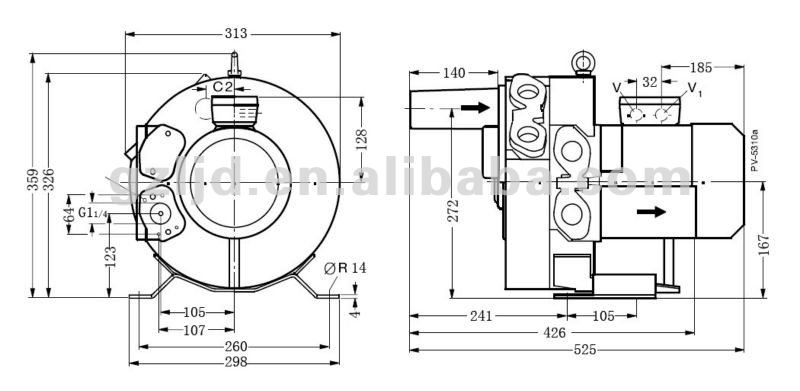

Size:
Composion:
Ex stock for use world-wide
The G-series side channel blower feature voltage rang motors for 50HZ and 60HZ in protection class IP55(insulation class F) are UL,CE,CCCapproved.this makes them the ideal solution for wide use.they can be used without any modifications or tests in Europe,America and Asia.They are mostly available ex stock.they are available for your requirements anytime.

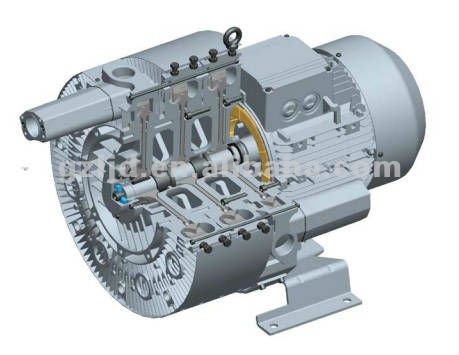

G-series operating principle
The impellers in the G-series machines are mounted directly on the motor shaft for noncontact compression entirly without friction.Maximum operational reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.

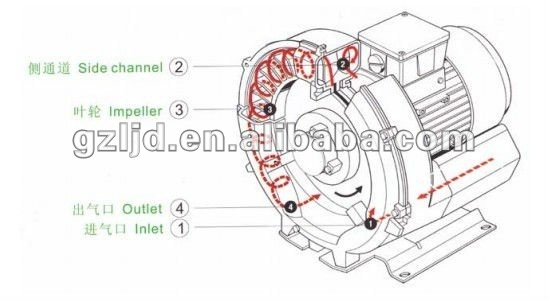

The gas it taken in through the inlet 1 .As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase.Everyrotation adds kinetic energy.resulting in the further increase of the pressure along the side channel.The side channel narrow at the rotor,sweeping the gas off the impeller blades and dis-charging it through the outlet silencer 4 where it exits the side channel blower.
Features:
1. Beautiful surface
2. Easy installation
3. Low noise level
4. No vibration, and therefore complete dynamic stability
5. Pulsation-free discharge
6. Minimal maintenance
7. Higher pressure ratio
8. Cooler running bearings
9. Longer grease life
10. Simple maintenance
11. 100%oil-free air
12. Suitable for environmental protection
13. Small dimensions
14 continuous duty

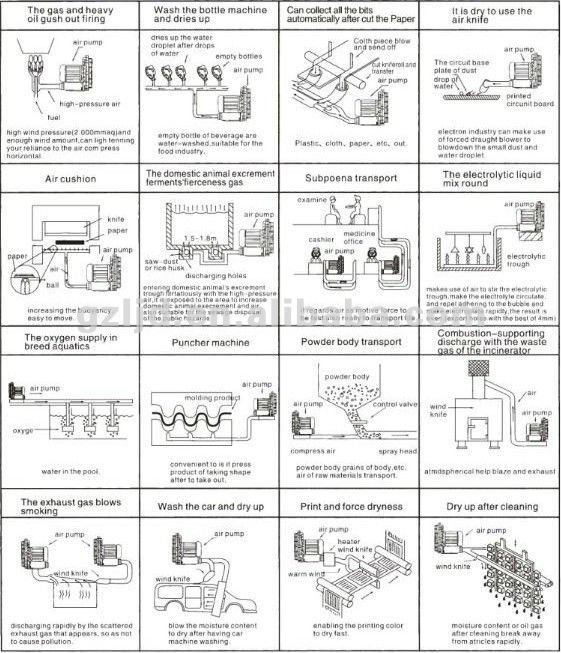

Applications
1.Pneumatic conveying systems
2.Lifting and holding of parts by vacuum
3.Packing machines
4.Aeration of sewage-treatment plants
5.Filling of bags/bottles/hoppers
6.Soil remediation
7.Thermoforming
8.Sorting/enveloping of letters
9.Food-processing
10.Laser printers
11.Dental suction equipments
12.Paper processing
13.Printers/copiers
14.Textile machines
15.Aeration of fish ponds
16.Gas analysis
17.Wsimming pool equipment/whirlpool

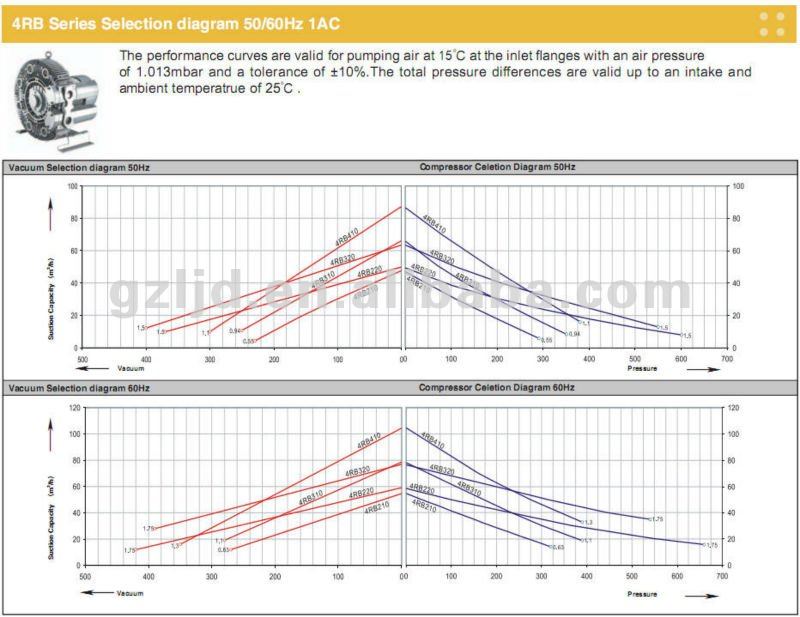

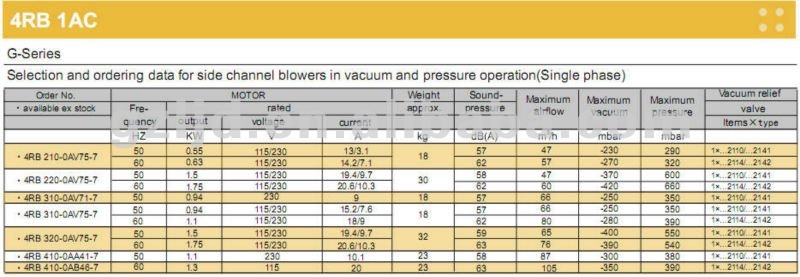

Catalogue:
Our company are mostly available ex stock.both the quality and price are best.if you are interested in our products,no hestation to contact us.
Certificate
Production LIne:
