2RB720-7HH47 industrial vacuum pump for grain conveying suction system

Sample set order is available,freight is under customers responsibility.

Technical Feature

  • Jiangsu, China (Mainland)
  • GZLing
  • 2RB&4RB
  • Vacuum Pump
  • Screw Pump
  • Air Pump, industrial pump
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$50~960

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
GZLing
Model Number
2RB&4RB
Theory
Vacuum Pump
Structure
Screw Pump
Usage
Air Pump, industrial pump
Power
Electric
Standard or Nonstandard
Standard
Fuel
gas
Pressure
High Pressure
Application
conveying suction
Bearing
SKF
Type
electric pump
Metrial
die-casting aluminium alloy
Color
sliver

DETAIL DESCRIPTION

Specification:

1.IP55 Insulations class H

2.Bearing continuously works 130000 hours without maintenance 18-month warranty

3.Famous Brand (OEM Allowed)

4.Certificates:CE,UL,RoHS,CCC

5.German technology

6.Ex stock



2RB720-7HH47 industrial vacuum pump for grain conveying suction system

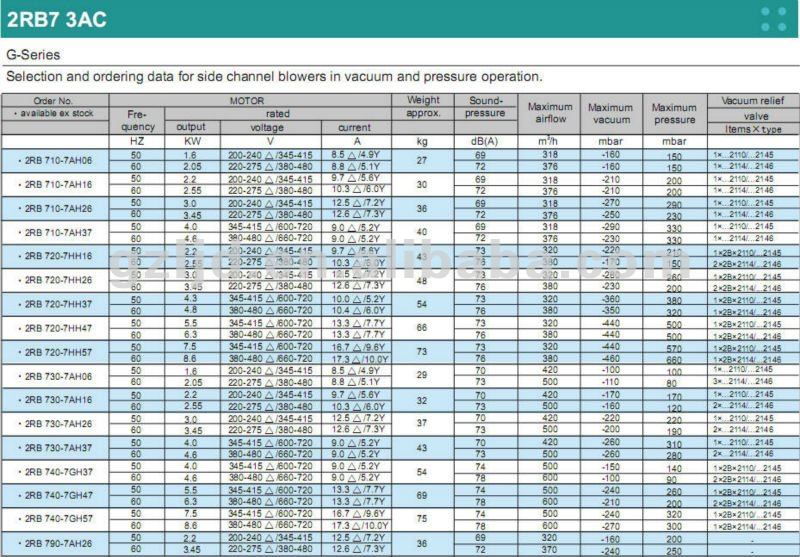

Product Description



Item NO.

Stage

(S/D/3)

Frequency

(HZ)

Power

(KW)

Voltage

(V)

Current

(A)

Air Flow

(m³/h)

Vacuum

(mbar)

Pressure

(mbar)

Sound

dB(A)

Weight

(KG)

2RB 720 H47

Double

50

5.5

345-415/600-720Y

13.3/7.7Y

320

-440

500

73

70

60

6.3

380-480/660-720Y

13.3/7.7Y

385

-440

500

76





Feature:



1. Beautiful surface
2. Easy installation
3. Low noise level
4. No vibration, and therefore complete dynamic stability
5. Pulsation-free discharge
6. Minimal maintenance
7. Higher pressure ratio
8. Cooler running bearings
9. Longer grease life
10. Simple maintenance
11. 100%oil-free air
12. Suitable for environmental protection
13. Small dimensions
14 continuous duty

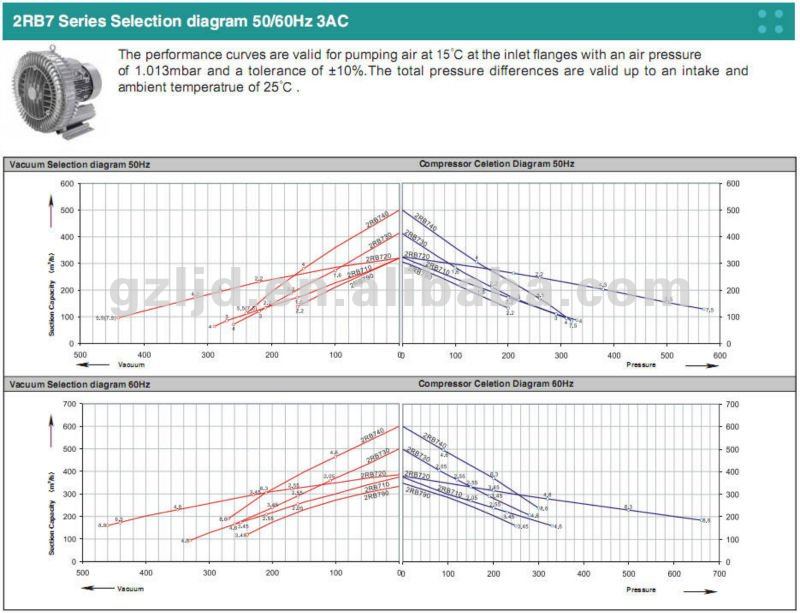

Performance curves:

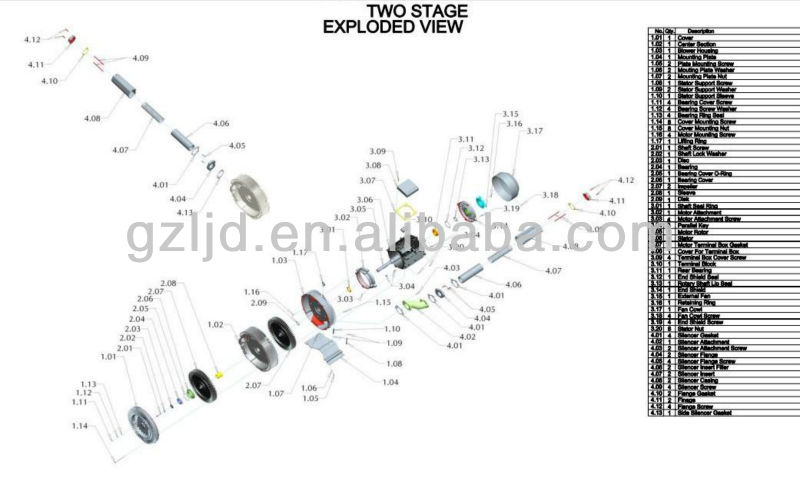

Explosion view:



Application:





Packaging & Shipping

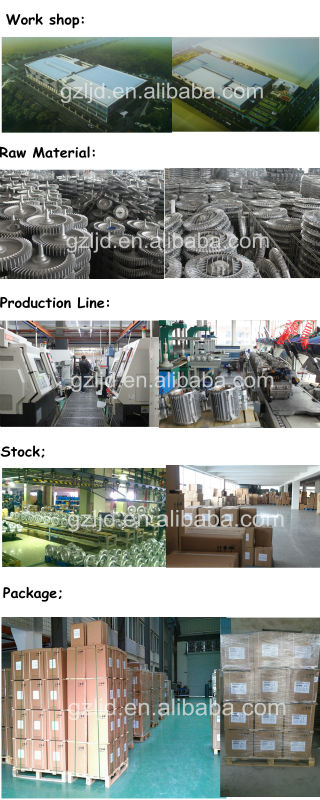

Company Information

 Wuxi Gezhiling Mechanical & Electrical Co., Ltd. is professional manufurer of side channel vacuum pump in Jiangsu. Our company has powerful technologies, precise testing equipment and advanced processing equipment and production lines, introducing and absorbing advanced technologies and techniques. A high level management team and engineers will help to carry out orderly, scientific and comprehensive production activities.

Our products are widely used in: environmental protection water treatment, central dust protection, automatic feeding machines, liquid filling machines, powder filling machines, foods, packaging, bottling, glass, paper cutters, oxygen-burning machines, filter tip forming machines, roll machines, dust collectors, environmental machinery, woodworking machinery, Hot Air Machines, Powder Conveyors, kitchens, mechanical machines, dryers, incinerators, incubators, mechanical cooling and other industries.
We can provide better services for you. Our company is very pleased to cooperate with you to provide you with good quality after-sales services. We always believe that customers are the sources for the continued success of our company. Looking ahead, we would like to cooperate sincerely with domestic and overseas friends to create brilliance hand in hand


Our Services

 Sample:Sample set order is available,freight is under customers responsibility.

Sample payment:By TT,Pay Pal,Western Union,Money Gram or other way to your convenient.

Sample selivery:has stock for regular models;7-10 days for customized models.





FAQ



Price Term:FOB,CFR,CIF.

Port of Loading:Qingdao,Rizhao,Lianyungang,Ningbo,Shanghai.

Payment Term:50%T/T in advance,50% balance against before shipping

Delivery Time:7-10 days after receiving your deposit
