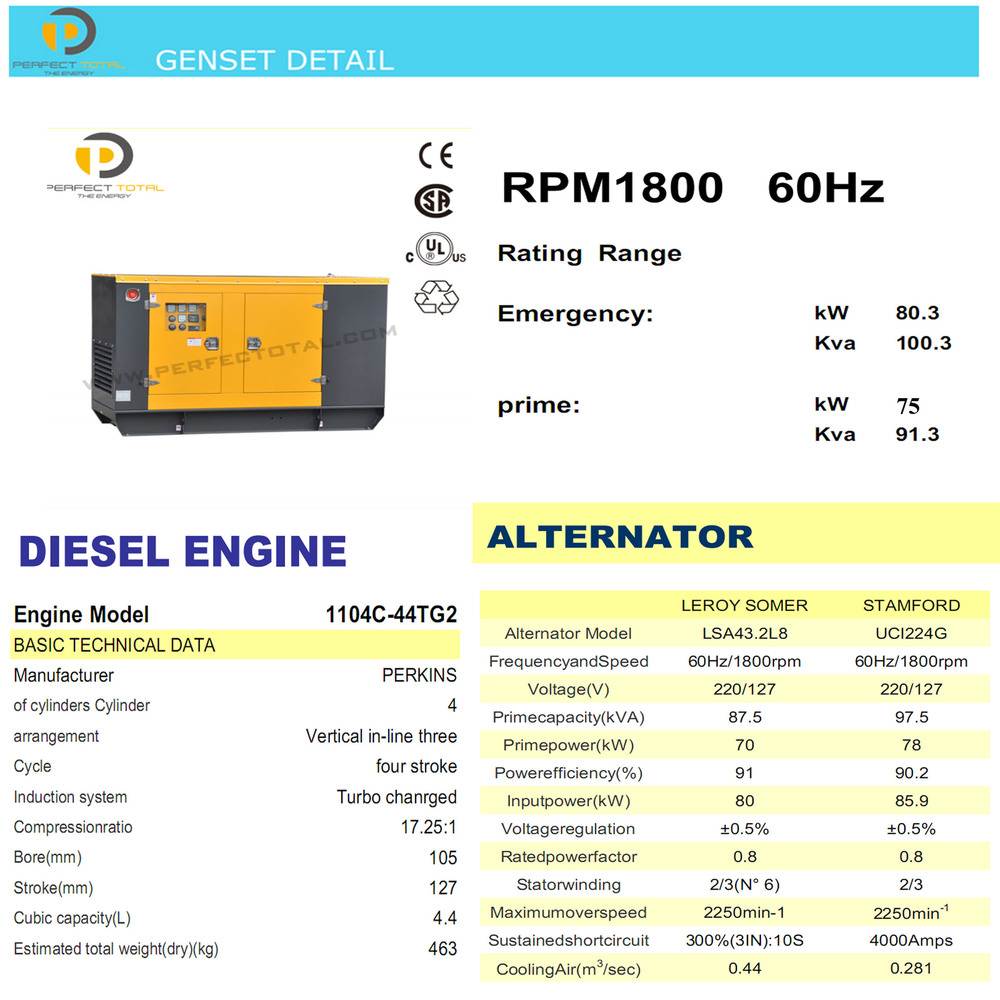

91.3kva Silent Diesel electric power generator with PERKINS engine
genset Model Soundproof diesel generator set | 70EPTP | |
SET | Rated power(Kw/kva) Prime power | 75KW |
Frequency(Hz) | 60 | |
Phase | 3 | |
Voltage(V) | 220/380 | |
Current(A) | 160 | |
Fuel capacity(L) | 244 | |
Fuel consumption(L/Hour) 100% Prime power
| 22.3 | |
Dimension (mm) | L | 3000 |
W | 1050 | |
H | 1750 | |
Weight(kg) | 1560 | |
Noice level for silent type (Db/7m) | 65 | |
ENGINE | Model | 1104C-44TG2 , PERKINS BRAND |
Prime power(kw/kva) | 75kw | |
Cylinders | 4 | |
Bore×stroke(mm) | 105×127 | |
Intake Method | Natural intake | |
Displacement(L) | 4.4 | |
Speed governing | Mechanical governor | |
Cooling starting method | Water cooling | |
ALTERNATOR | Model | UCI224G |
Rated power(kw/kva) | 75/91.3 | |
Insulation class | H | |
Alternator enclosure | IP23 | |
THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION. |
Control Panel Area
