Factory direct supplier high energy efficiency low noise stainless steel water chiller

PRIMARY PARAMETERS

DETAIL DESCRIPTION

Product Description

Product Description:

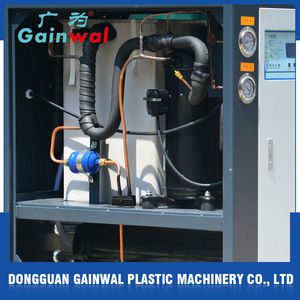

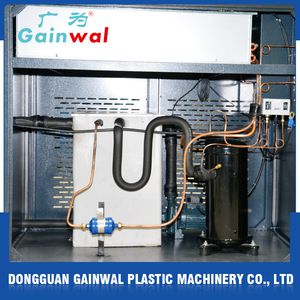

The GIC-A series of air-cooled water chillers use a closed-loop design for pressurised
refrigerant. All models are equipped with compressor and motor overload protection,
phase shortage and reversal alarms, antifreeze thermostat, pressure gauges, etc. They
feature excellent performance and a long lifespan. The series of working flow is based on the basic principle of heat exchange. It is applicable to the industry that requires flow of precisely controlled chilled water.

Feature:
1. Cooling range 5~35℃.
2. Stainless steel insulate water tank.
3. Equipped with anti-freeze thermostat.
4. Refrigerant loop controlled by high and low pressure switches to ensure stable operation.
5. All adopt quality compressors, low noise, high energy efficiency, long life.
6. Compressor and pump overload protection.

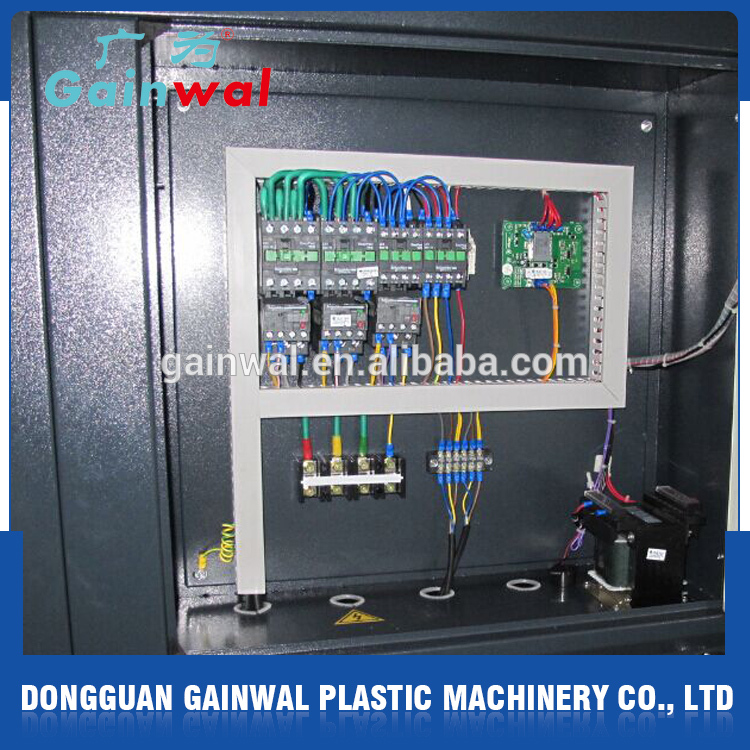

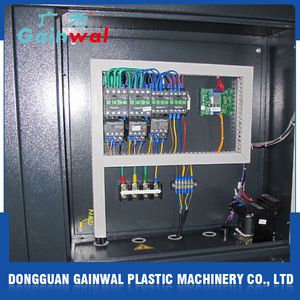

7. Adopt microcomputer control.
8. Adopt imported electronic components.
9. Good design of heat exchanger so that the cooling content. Very long flow path
to take out most of its heat content.
10. Adopt fin style condenser design. Without any need of cooling water for excellent

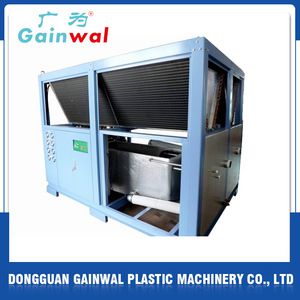

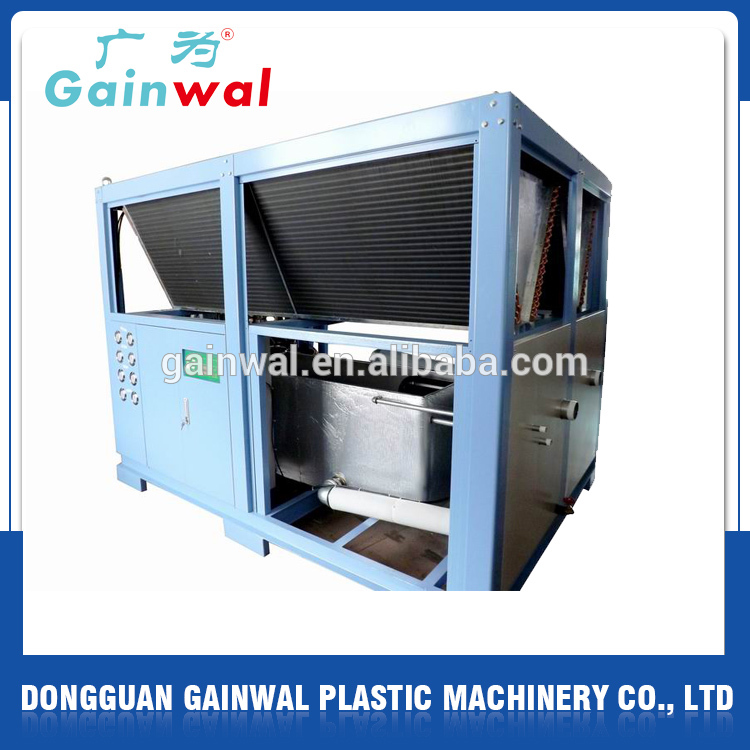

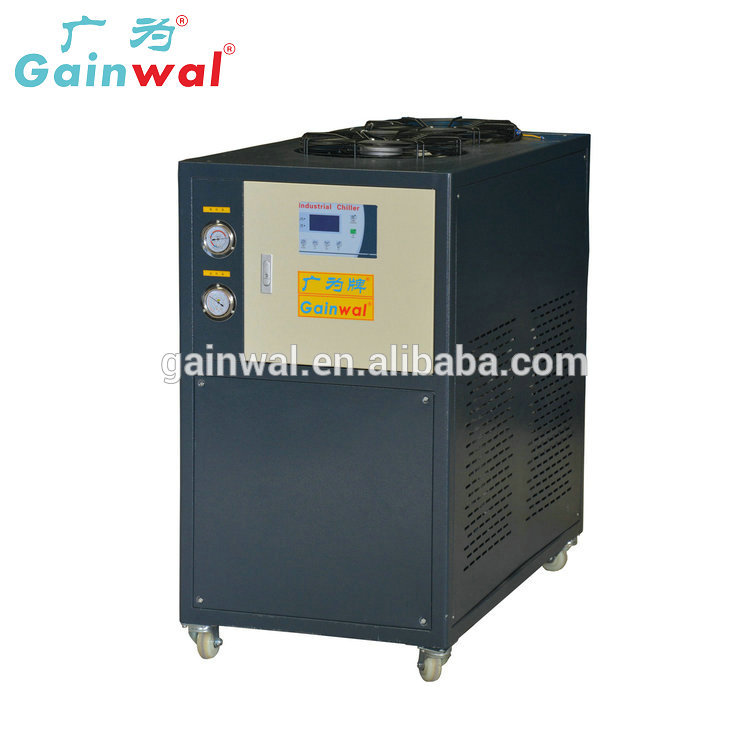

Air-cooled Water Chillers:

MODEL	UNIT	GIC-05A	GIC-08A	GIC -10A	GIC -15A	GIC -20A	GIC -30A
Cooling Capacity	KW	11324	20540	28400	43100	58600	86200
BTU/HR	38650	77300	97000	147200	199850	294400
KCAL/HR	9739.8	19479.6	24444	37094.4	50362.2	74188.8
Refrigerant Type	R22
Compressor Motor	KW	3.75	6	7.5	11.25	15	22.5
HP	5	8	10	15	20	30
Condenser Fan Flow Rate(A)	CHM	3900	7800	9200	12600	18900	23400
Fan Dia.	MM	400*2	450*2	500*2	500*3	500*4	Φ500*8
Voltage	380V-400V/3PHASE(50Hz-60Hz)
Water Tank capacity	LITER	65	140	220	380	500	520
Water Pump	HP	0.5	1	1	2	2	2.2
KW	0.37	0.75	0.75	1.5	1.5	3
Flow Rate	L/MIN	50-100	100-200	100-200	160-320	160-320	250-500
Running Cuttent (AMP)	AMP	9	13	15	27	38	58
Insulation Material	POLY-FOAM TAPE RUBBERIZED TUBU INSULATION
L	MM	1100	1380	1480	1700	1800	1980
W	MM	615	750	750	1100	1100	860
H	MM	1080	1450	1450	1750	1750	1950
Net Weight	KG	155	320	420	600	730	920

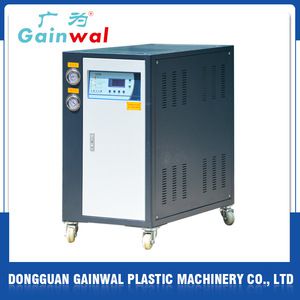

Water-cooled Water Chillers:

MODEL	UNIT	GIC-05W	GIC -08W	GIC -10W	GIC -15W	GIC -20W	GIC -30W
Item
Cooling capacity	WATTS	11324	20540	28400	43100	58600	86200
BIU/HR	38650	77300	97000	147200	199850	294400
KCAL/HR	9740	19480	24444	37094	50362	74189
Refrigerant Type	R22
Compressor Motor	KW	3.75	6	7.5	11.25	15	22.5
HP	5	8	10	15	20	30
Condenser water flow rate	L/MIN	58	100	120	200	250	360
Voltage	Phrase/Hz	380V-400V/3PHASE(50Hz-60Hz)
Water lank capacity	Liter	65	140	220	380	500	520
Water Pump	KW	0.37	0.75	0.75	1.5	1.5	3.75
HP	0.5	1	1	2	2	5
Flow rate	L/MIN	50-100	100-200	100-200	160-320	160-320	400-800
Running current	AMP	7	13	15	27	39	55
Insulation material	POLY-FOAM TAPE RUBBERIZED TUBU INSULATION
L	MM	865	1070	1270	1530	1680	1980
W	MM	530	685	710	710	810	860
H	MM	1010	1210	1270	1780	1930	1950
Net Weight	KG	125	240	320	570	680	920
