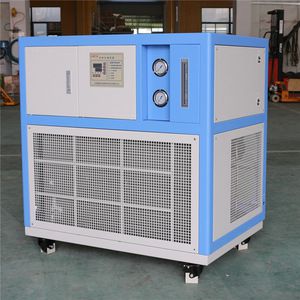

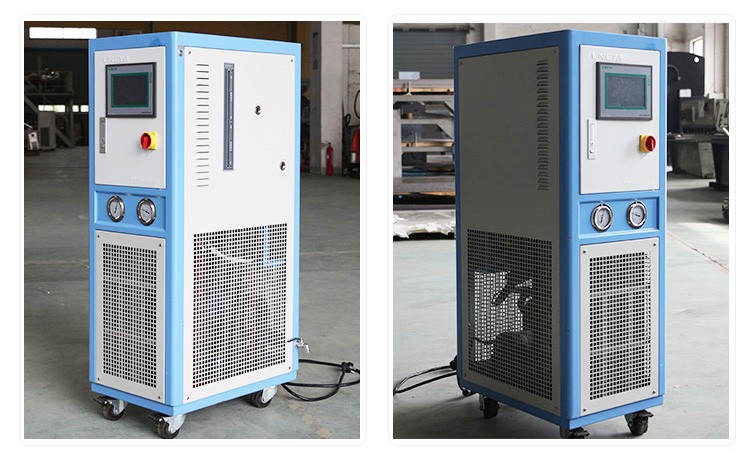

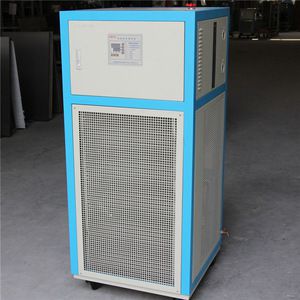

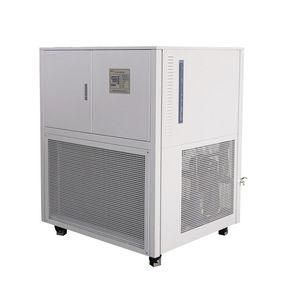

5~35 degree water cooling mini absorption chiller
Model | FL-0250 FL-0250H | FL-0500 FL-0500H | FL-0700 FL-0700H | FL-1000 FL-1000H | FL-1500 FL-1500H | FL-2000 FL-2000H | |
Medium Temperature Range | Standard FL-series temperature range 5℃~35℃ (only with cooling function) | ||||||
FL with H-series temperature range 5℃~50℃ (both with cooling function and heating performance) | |||||||
Temp. control | ASET multifunctional controller | ||||||
Temp. control optional | Heat-conducting medium outlet temp. control | ||||||
communication protocol | MODBUS RTU Protocol, RS 485 Interface | ||||||
Temp. feedback | Heat-conducting medium temperature feedback PT100 | ||||||
Cooling capacity | 20℃ | 2.5kW | 5kW | 7kW | 10kW | 15kW | 20kW |
10℃ | 1.8kW | 3.6kW | 5kW | 7.2kW | 11kW | 14.5kW | |
Cooling capacity (H series) | 10℃ | 2.5kW | 5kW | 7kW | 10kW | 15kW | 20kW |
20℃ | 2kW | 4kW | 5.6kW | 8kW | 12kW | 16kW | |
45℃ | 1kW | 2kW | 2.8kW | 4kW | 6kW | 8kW | |
Circulation pump | Max25L/min 2BAR | Max35L/min 2.5BAR | Max35L/min 2.5BAR | Max50L/min 2.5BAR | Max75L/min 2.5BAR | Max75L/min 2.5BAR | |
capacity of liquid storage | 15L | 25L | 30L | 35L | 50L | 75L | |
Compressor | Tecumseh | Copeland | Copeland | Copeland | Copeland | Copeland | |
Evaporator | Plate heat exchanger | ||||||

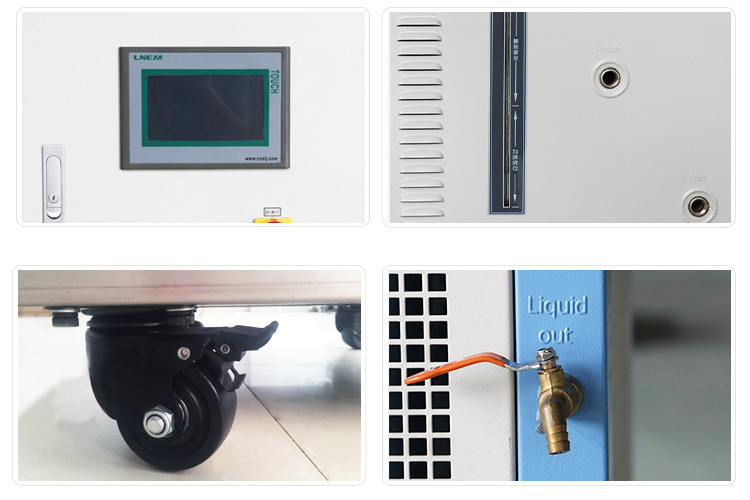

Operation panel | Display setting temperature and testing temperature; Touch key display | ||||||
Security protection | Self-diagnosis function; freezer overload protection; high pressure switch; overload relay, thermal protection device etc. security protection function. | ||||||
Refrigerants | R-410A | ||||||
Connection size | DN-15 | DN20 | DN20 | DN20 | DN20 | DN-20 | |
Product size (air-cooled) | 400*600*1050 | 500*680*1350 | 550*680*1450 | 550*680*1450 | 620*680*1650 | 750*750*1750 | |
Weight (air-cooled) | 115kg | 145kg | 180kg | 225kg | 290kg | 340kg | |
Power | AC220V 50HZ 1.5kW (max) | AC220V 50HZ 2.5kW (max) | AC220V50HZ 3.5kW (max) | AC380V 50HZ 4kW (max) | AC380V 50HZ 5kW (max) | AC380V50HZ 6.5kW (max) | |
Material | Cold rolled steel | ||||||
Optional | Optional 7-inch color touch screen controller, temperature curve record, data export to excel format. | ||||||
Optional | SUS304 material | ||||||
Optional | Pressure max.10 bar circulating pump | ||||||
Optional Power | 220V 60HZ three-phases, 440V~480V 60HZ three-phases | ||||||
Remark | Can make the bigger capacity of water storage as required. |
LNEYA's all products series
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems, indicating that LNEYA can provide the customers with the expected and satisfactory qualified products continuously and steadily.
The products of LNEYA, which is added to the CE mark, has passed the corresponding conformity assessment procedures and the manufacturer's Qualification Statement, are in conformity with the EU Directive.CE is used as a permit for the product to enter the European market.
So far, YNEYA has11 patents of utility model authorized certificate.
Foreign cooperative customers
Domestic cooperative customers
LNEYA has established long-term and stable cooperation with customers at home and abroad.
Many customers are enjoying our high quality after-sales service, sending us all kinds of thank-you letters and expressing our desire to continue to establish long-term and solid cooperative relations.
We make oriented products that can meet the demand of the market and users, focusing on science and technology applying international advanced technology, endlessly get rid of the stale and bring forward the fresh following the market step & meet. We always insist on standardized management in accordance with the ISO9001-2008 international quality certification requirement not only product design, purchase and selection of components, but also production process flow, packaging, and transportation etc. We always make all our efforts to keep improving products, and keep providing reasonable price and satisfactory service.
LNEYA make market and user need oriented products,focusing on science and technology applying international advanced technology, endlessly get rid of the stale and bring forward the fresh following the market step and meet market demand.
Exhibition at home and abroad
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
After sale service
Quality assurance
Guarantee that the goods are sold to be conform to the provisions of the contract and qualified new products by factory inspection, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract.
Installation and debugging
After the arrival of the goods, my company or my company agent is responsible for installation and debugging of equipment need on-site installation and debugging.
Inspection and acceptance
After installation and debugging, acceptance by the customer to confirm the goods to be conform to the provisions of the contract and qualified new products, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract, and after the confirmation of a full set of technical documents, sign the installation acceptance report and confirm acceptance.
Training
At the same time of installation and debugging of equipment, my company’s after-sales service engineer is responsible for technical training for user until user can be skilled of operation. In the process of using equipment by customer, customer can consult relevant technical issues to after-sales service personal of our company at any time, according to the situation, my company will arrange training on site or remote.
After sale service commitment
A full free one year warranty since the date of acceptance, during the warranty period, all repairs and spare parts are free of charge(instrukent malfunction caused bu human factors will be charged of cost price of spare parts); After the warranty period, we will be responsible for maintenance of equipment for lifetime, according to the actual maintenance fees, appropriate fee will be charged.
