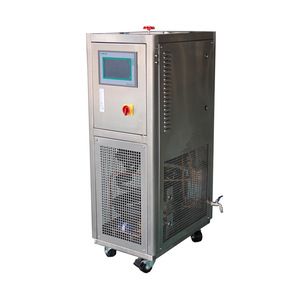

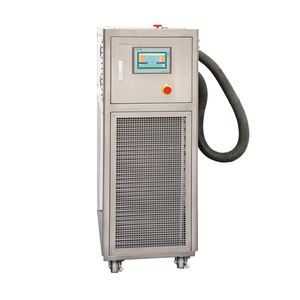

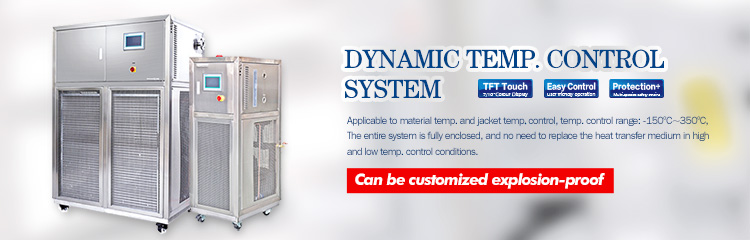

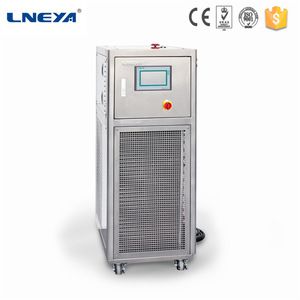

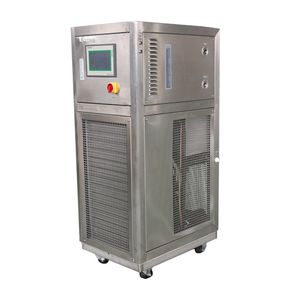

-15 to 50 degree Cooling and Heating temperature control system refrigerated heating circulator chiller
The parameters in the table are standard data.
We support custom services
| Temp range | Heating power(kw) | circulation pump L/min bar | Dimension(mm) | Weight(kg) | Power(kw) |
| -30~180 | 2 | 10/0.8 | 400*600*800 | 55 | 2.9 |
| -40~180 | 2 | 20/2~150/2.5 | 400*600*800 | 60 | 3.3 |
| -10~200 | 2.5~25 | 20/2~150/2.5 | 400*600*1150 | 100~700 | 3.6~32 |
| -25~200 | 2.5~200 | 20/2~600/3 | 400*600*1150 | 100~1850 | 4~260 |
| -25~300 | 2.5~200 | 20/2~600/3 | 400*600*1150 | 100~1850 | 4~260 |
| -45~250 | 2.5~200 | 20/2~600/3 | 500*680*1250 | 160~2100 | 4.5~280 |
| -45~300 | 5.5~25 | 50/2~150/2.5 | 550*680*1450 | 245~420 | 9~36 |
| -60~250 | 2.5~200 | 20/2~600/3 | 550*680*1450 | 170~2580 | 5~315 |
| -60~300 | 5.5~25 | 50/2~150/2.5 | 550*680*1450 | 265~980 | 10~40 |
| -70~250 | 2.5~15 | 20/2~110/2.5 | 550*680*1450 | 190~420 | 5.2~28 |
| -80~250 | 2.5~80 | 20/1~400/2.5 | 550*680*1450 | 240~2600 | 6.5~145 |
| -90~250 | 2.5~80 | 20/1~400/2.5 | 550*680*1450 | 240~2550 | 7.5~165 |
| -100~135 | 2.5~80 | 35/2~400/2.5 | 750*800*1850 | 435~2650 | 12~200 |
| -25~200 | 15~95 | 110/2.5~250/2.5 | 680~1880 | 40~230 | |
| -40~200 | 2.5~10 | 25/1~75/1.5 | 220~495 | 7.6~29.5 | |
| -50~300 | 3.5~200 | 35/2~600/3 | 400*600*1150 | 70~850 | 5~212 |
Main product accessories:
Compressor | Embraco | Embraco | France |
Expansion valve | Danfoss | Danfoss | Danfoss |
Evaporator | KAORI Plate heat exchanger | ||

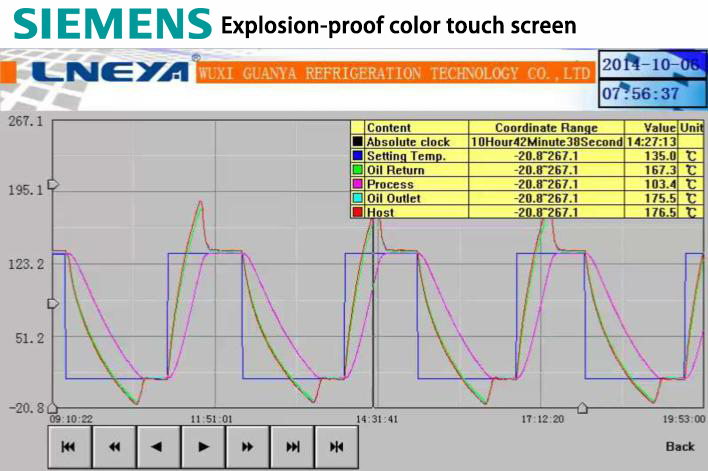

Operation Panel | 7-inch color touch screen controller, temperature curve record, data export to excel format. | ||
Safety protection | Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection. | ||
Closed | The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature. | ||
Refrigerant | R-404A | ||
Case material | SUS 304 | ||
Optional | Optional Ethernet interface, configure PC operating software | ||
Optional | Optional outside touch screen display controller (separated), the communication line distance is 10 meter. | ||
Optional power | 100V 50HZsingle-phase, 110V 60HZ single-phase, 230V 60HZ single-phase,220V 60HZ three-phase, 440V~480V 60HZ three-phase |
High quality core, more reassuring

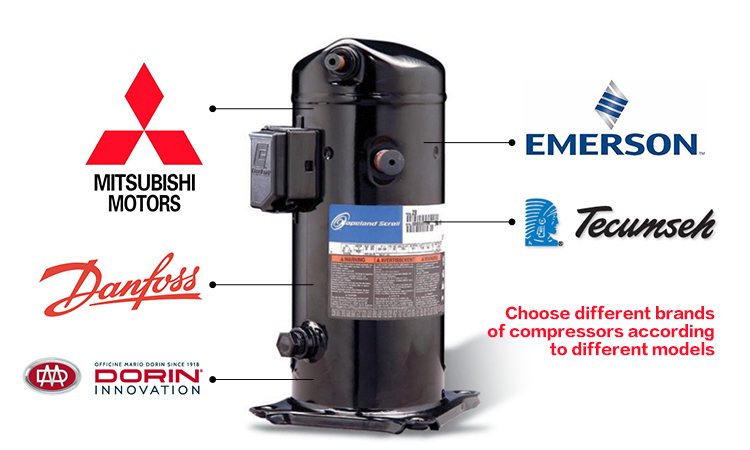

LNEYA adopts the world famous brand compressor, which can extend the service life of industrial water chiller, enhance the refrigeration effect, reduce the energy consumption and noise of industrial water chiller.
High repeatability of results control
Every curve temperature control, the inlet temperature of heat conduction oil and the temperature of material can set temperature difference independently and control it.

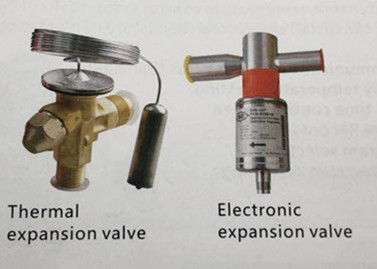

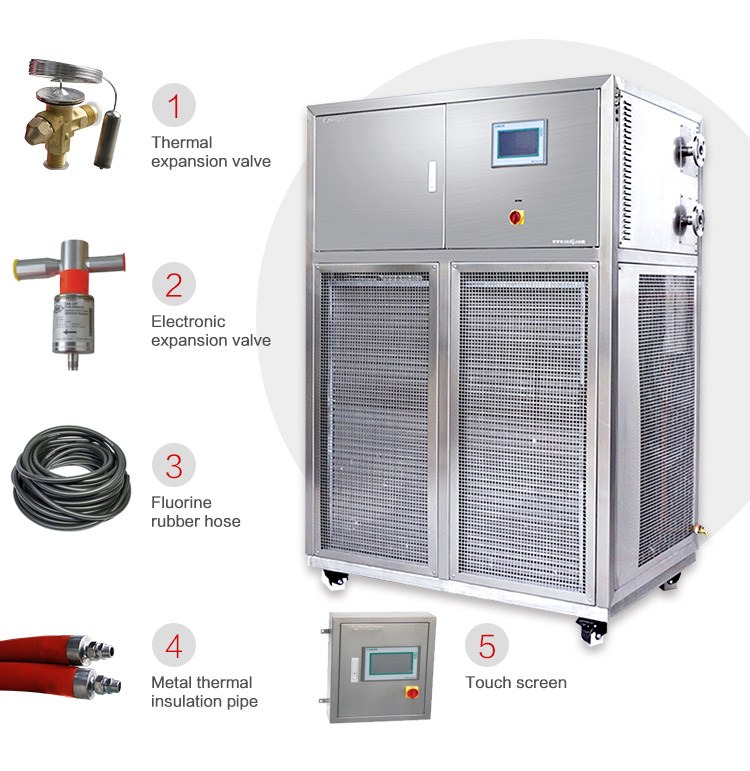

Electronic expansion valve/Thermal expansion valve
Emerson electronic expansion valve with wide temp.range, it can monitor steps into motor, precise control refrigerant amout from the refrigerant, improve control accuracy.
Thermal expansion valve:Use famous brands like Danfoss,Copeland and so on.
Logistics and packaging
LNEYA's all products series
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems, indicating that LNEYA can provide the customers with the expected and satisfactory qualified industrial water chiller continuously and steadily.
Thechillerof LNEYA, which is added to the CE mark, has passed the corresponding conformity assessment procedures and the manufacturer's Qualification Statement, are in conformity with the EU Directive.CE is used as a permit for industrial water chiller to enter the European market.
So far, YNEYA has11 patents of utility model authorized certificate.
Foreign cooperative customers
Domestic cooperative customers
LNEYA has established long-term and stable cooperation with customers at home and abroad.
Many customers are enjoying our high quality after-sales service, sending us all kinds of thank-you letters and expressing our desire to continue to establish long-term and solid cooperative relations.
We make oriented products that can meet the demand of the market and users, focusing on science and technology applying international advanced technology, endlessly get rid of the stale and bring forward the fresh following the market step & meet. We always insist on standardized management in accordance with the ISO9001-2008 international quality certification requirement not only product design, purchase and selection of components, but also production process flow, packaging, and transportation etc. We always make all our efforts to keep improving products, and keep providing reasonable price and satisfactory service.
LNEYA make market and user need oriented products,focusing on science and technology applying international advanced technology, endlessly get rid of the stale and bring forward the fresh following the market step and meet market demand.
Exhibition at home and abroad
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
After sale service
Quality assurance
Guarantee that the chiller are sold to be conform to the provisions of the contract and qualified industrial water chiller by factory inspection, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract.
Installation and debugging
After the arrival of the industrial water chiller, my company or my company agent is responsible for installation and debugging of equipment need on-site installation and debugging.
Inspection and acceptance
After installation and debugging, acceptance by the customer to confirm the goods to be conform to the provisions of the contract and qualified new products, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract, and after the confirmation of a full set of technical documents, sign the installation acceptance report and confirm acceptance.
Training
At the same time of installation and debugging of equipment, my company's after-sales service engineer is responsible for technical training for user until user can be skilled of operation. In the process of using equipment by customer, customer can consult relevant technical issues to after-sales service personal of our company at any time, according to the situation, my company will arrange training on site or remote.
After sale service commitment
A full free one year warranty since the date of acceptance, during the warranty period, all repairs and spare parts are free of charge(instrukent malfunction caused bu human factors will be charged of cost price of spare parts); After the warranty period, we will be responsible for maintenance of equipment for lifetime, according to the actual maintenance fees, appropriate fee will be charged.
