No MOQ 2 ton water tank chiller

ideal for domestic use, including refreshing shower, washing and cleaning during all the year.

Technical Feature

  • Brandnew
  • Air-Cooled, Air-cooled/water chiller/unit
  • Guangdong, China (Mainland)
  • Altaqua
  • ACL-024/T
  • 7 kw/h
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
Brandnew
Type
Air-Cooled, Air-cooled/water chiller/unit
Place of Origin
Guangdong, China (Mainland)
Brand Name
Altaqua
Model Number
ACL-024/T
Cooling Capability(kw)
7 kw/h
Voltage
230V/1P/50HZ & others
Dimension(L*W*H)
870x320x650 mm
Weight
70 kg
Certification
CE, ROHS, ISO9001
Warranty
12~36 months
After-sales Service Provided
Overseas service center available
Refrigerant
R22/R407c/R410a
Evaporator
coil
Compressor Brand
Panasonic/Hitachi/Others
Tank Capacity
750~1000 Gallon
Power Input
3.5 kw/hour
Current
15.5 Amp
Suctionline
9.52 mm ,3/8 lnch
Liquidline
9.52 mm ,3/8 lnch
Ambient Temperature
24u2103 ~ 54u2103

DETAIL DESCRIPTION

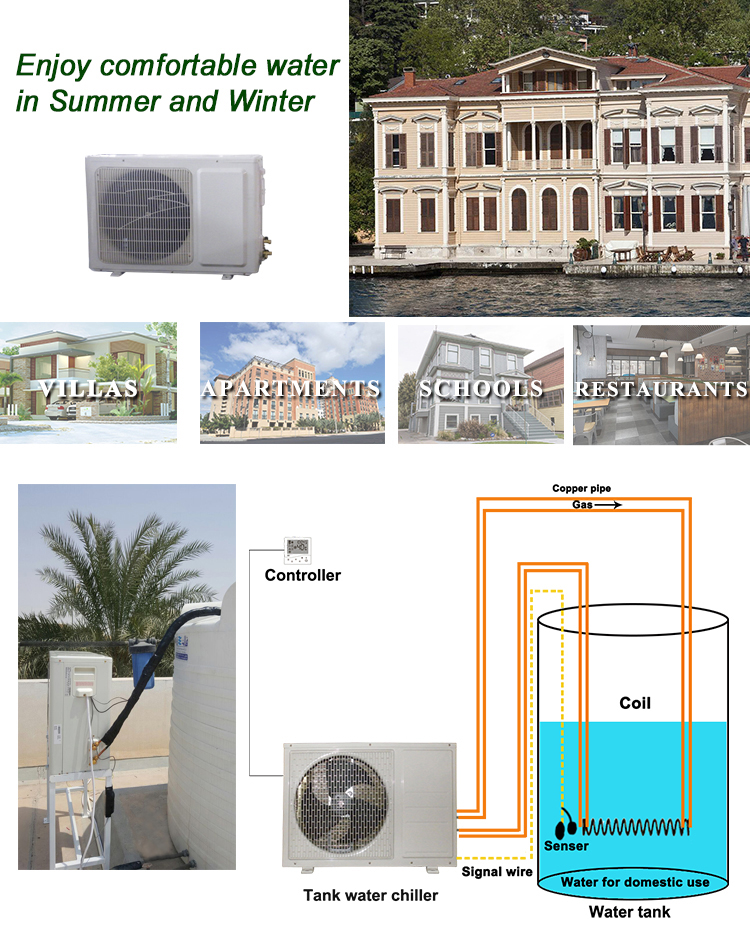

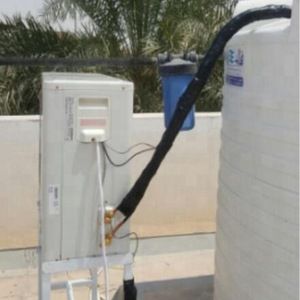

Top-rated tank water chiller supply cooling water for hot summer and hot water for cold winter. It help your water in the roof-top tank to a comfortable temperature ideal for domestic use, including refreshing shower, washing and cleaning during all the year.

 U1



• Compact energy saving design

• Strong capacity from best compressors

• Available water tank from 200 to 1000 gallons

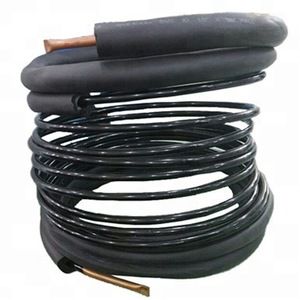

• Copper tube & wire insulated and protected well

• Simple installation & most economic maintenance cost

• Intelligent microelectronics controller with reliable protection






Cooling capacity

3.5kw/hour ~ 7kw/hour & customized available

Power supply220V/1p/50Hz& customized available
Refrigerant

R22, R407c, R410a & customized available

Outlet water temperature

20 ~ 30 ℃ & customized available
