High quality with low noise water cooling tower

High quality with low noise water cooling towerXIECHENG XC-ST80 Fiberglass Cooling TowerFEATURE1,Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, al

Technical Feature

  • New
  • Counter Flow
  • FRP, fiberglass
  • Guangdong, China (Mainland)
  • XIECHENG
  • 380V/50HZ/3Phase or customized
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Cooling Type
Counter Flow
Material
FRP, fiberglass
Place of Origin
Guangdong, China (Mainland)
Brand Name
XIECHENG
Voltage
380V/50HZ/3Phase or customized
Power(W)
180
Dimension(L*W*H)
1060*1060*1660mm
Weight
50KG
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Usage
mould cooling
Motor
double pole
Radiating fin
PVC/PP material
Flow
7.2m3/h
Air Volume
4300m3/h
Lifetime
more than 5 years

DETAIL DESCRIPTION

High quality with low noise water cooling tower

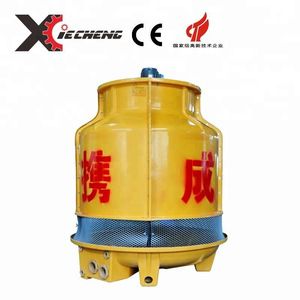

XIECHENG XC-ST80 Fiberglass Cooling Tower

FEATURE

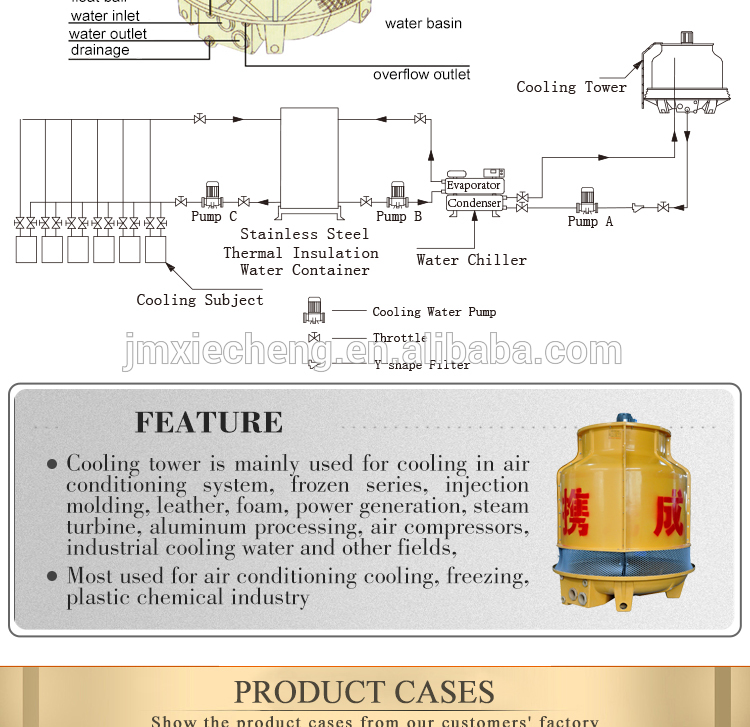

1,Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields,

2,most used for air conditioning cooling, freezing, plastic chemical industry

10-1000T_0110-1000T_0210-1000T_0310-1000T_0410-1000T_0510-1000T_0610-1000T_0710-1000T_0810-1000T_09

10-1000T_10

ADVANTAGE

1,Light structure compact
2,convenient assembly, durable, good cooling effect.
3,Resistance to irradiation of ultraviolet



Specifications

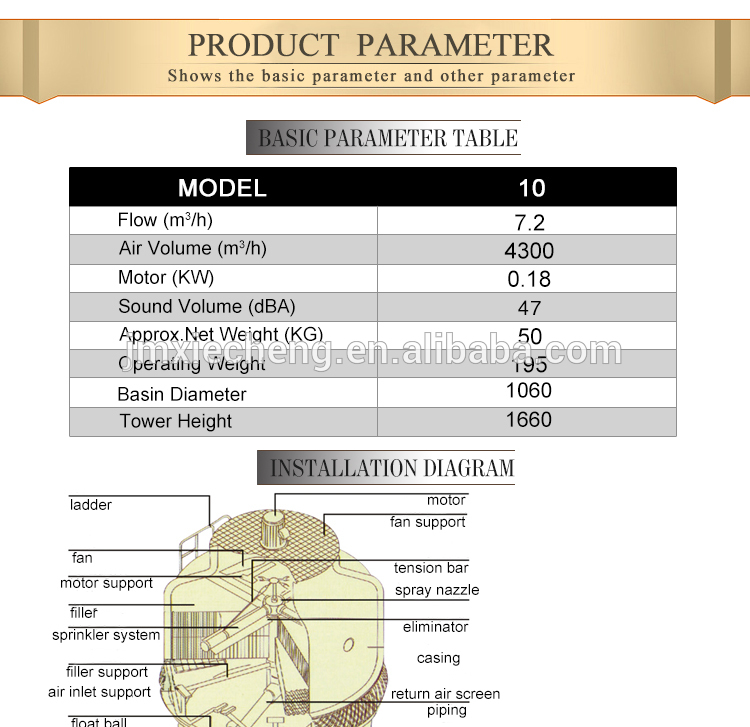

ModelFlow rateBlowing rateMotorNoiseNet weightOperating weightDiameterHeight
XC-ST86.23700.1845.5421809451385
XC-ST107.81850.1847461909451535
XC-ST1511.71400.37485429011951420
XC-ST2015.61600.56506730011951595
XC-ST2519.52000.75529850014001825
XC-ST3023.42300.755411653016501710
XC-ST4031.22801.556.513055016501780
XC-ST5039.23301.557.519097518301840
XC-ST6046.84201.557240125021001960
XC-ST8062.64501.559260128021002040
XC-ST10078.17002.2560500160029002375
XC-ST12597.68302.2560540164029002555
XC-ST1501179502.2560580168029002555
XC-ST17513711503.7560810191033103165
XC-ST20015612503.7560830193033103165
XC-ST22517615005.5541050277041203580
XC-ST25019517505.5551080280041203580
XC-ST30023420007.5561760393047303680



For more details, welcome to visit our website: http://www.jmxiecheng.com/en/introduce.html
