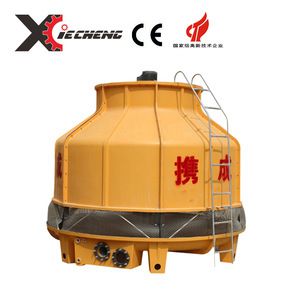

High Temperature Industrial Cooling Tower 100T Cooling Tower
FEATURE
1,Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
2,most used for air conditioning cooling, freezing, plastic chemical industry;
3, Closed circuit cooling tower have Attractive shape: Small dimension of shape, low height of tower, light weight of tower, and multiform layout in covering area.
WORKING PRINCIPLE
1,Working fluid (water, oil o other liquid) flowing inside of the coils, which is enwrapped by spray water on the outside. The heat of water is transferred by coil and become the saturated vapor when meet the water and air.
2, the heat is exhausted out of the tower by the tower by the top fan; water is collected back to the bottom tank and circulates continuously. The spray water is cooled down via PVC radiation fin in the process of circulation, and flow is the same direction with the fresh wind. The coil mainly takes sensible heat travel style.
3, the most benefit of this style is can avoid scale formation on the outside of the coil. And this will apply especially to dealing with high temperature fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 32°C).
Product Parameter
Model | Flow rate | Fan Diameter | Motor | Noise | Net weight | Operating weight | Diameter | Height |
m3/h | mm | kw | kba | kg | kg | mm | mm | |
XC-ST100 | 78.1 | 1450 | 2.2-8P | 64.5 | 450 | 1500 | 2700 | 2600 |
Model | Flow rate | Fan Diameter | Motor | Noise | Net weight | Operating weight | Diameter | Height |
m3/h | mm | kw | kba | kg | kg | mm | mm | |
XC-ST10 | 7.2 | 600 | 0.18-6P | 62 | 50 | 195 | 1080 | 1760 |
XC-ST15 | 11.7 | 600 | 0.18-6P | 62.5 | 54 | 290 | 1080 | 1860 |
XC-ST20 | 14.4 | 600 | 0.37-6P | 63 | 67 | 300 | 1200 | 1860 |
XC-ST25 | 18.5 | 770 | 0.55-6P | 63 | 98 | 500 | 1430 | 2050 |
XC-ST30 | 23.4 | 770 | 0.55-6P | 63 | 116 | 530 | 1620 | 1900 |
XC-ST40 | 31.2 | 770 | 0.75-6P | 63 | 130 | 550 | 1620 | 2050 |
XC-ST50 | 39.2 | 930 | 1.5-6P | 63.5 | 200 | 975 | 1810 | 2100 |
XC-ST60 | 46.8 | 1180 | 1.5-8P | 63.5 | 255 | 1250 | 2100 | 2200 |
XC-ST80 | 62.6 | 1180 | 1.5-8P | 64 | 280 | 1280 | 2100 | 2410 |
XC-ST100 | 78.1 | 1450 | 2.2-8P | 64.5 | 450 | 1500 | 2700 | 2600 |
XC-ST125 | 97.5 | 1450 | 2.2-8P | 65.5 | 540 | 1740 | 2700 | 2600 |
XC-ST150 | 117 | 1450 | 2.2-8P | 66 | 580 | 1780 | 3000 | 2700 |
XC-ST175 | 136.8 | 1750 | 4-10P | 66 | 760 | 1860 | 3300 | 2780 |
XC-ST200 | 156.2 | 1750 | 4-10P | 66 | 790 | 1880 | 3300 | 2780 |
XC-ST225 | 175.5 | 2100 | 5.5-4P | 66.5 | 1050 | 2770 | 4100 | 3850 |
XC-ST250 | 195.1 | 2100 | 5.5-4P | 67 | 1080 | 2800 | 4100 | 3850 |
XC-ST300 | 234 | 2400 | 7.5-4P | 67.5 | 1760 | 3790 | 4700 | 4030 |
XC-ST350 | 273.2 | 2400 | 7.5-4P | 68 | 1800 | 3930 | 4700 | 4030 |
XC-ST400 | 312.2 | 2700 | 11-4P | 68 | 2840 | 5740 | 5600 | 4100 |
XC-ST500 | 392.4 | 2700 | 15-4P | 68.5 | 2900 | 5800 | 5600 | 4100 |
XC-ST600 | 468 | 3400 | 15-4P | 68.5 | 3950 | 9350 | 6600 | 4470 |
XC-ST700 | 547.2 | 3400 | 18.5-4P | 69 | 4050 | 9450 | 6600 | 4470 |
XC-ST800 | 626.4 | 3700 | 22-4P | 70 | 4700 | 11900 | 7600 | 4720 |
XC-ST1000 | 781.2 | 3700 | 22-4P | 71 | 4900 | 12100 | 7600 | 4720 |
