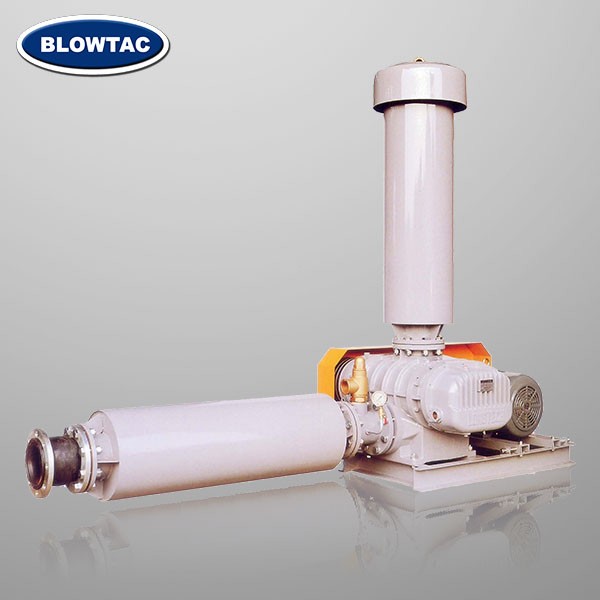

MRT-400 with CE 3 phase AC power high capacity roots air blower machinery for wastewater treatment
Features
- Stable air flow and fewer pressure variations
- Clean air; with no oil dirty particles
- Construction is simple and easy to maintain
- Bearings and gears are lubricated with oil on end side of the blower
- All of product can be used for OEM
- Proven design, backed by a 1-year warranty
Adnentage

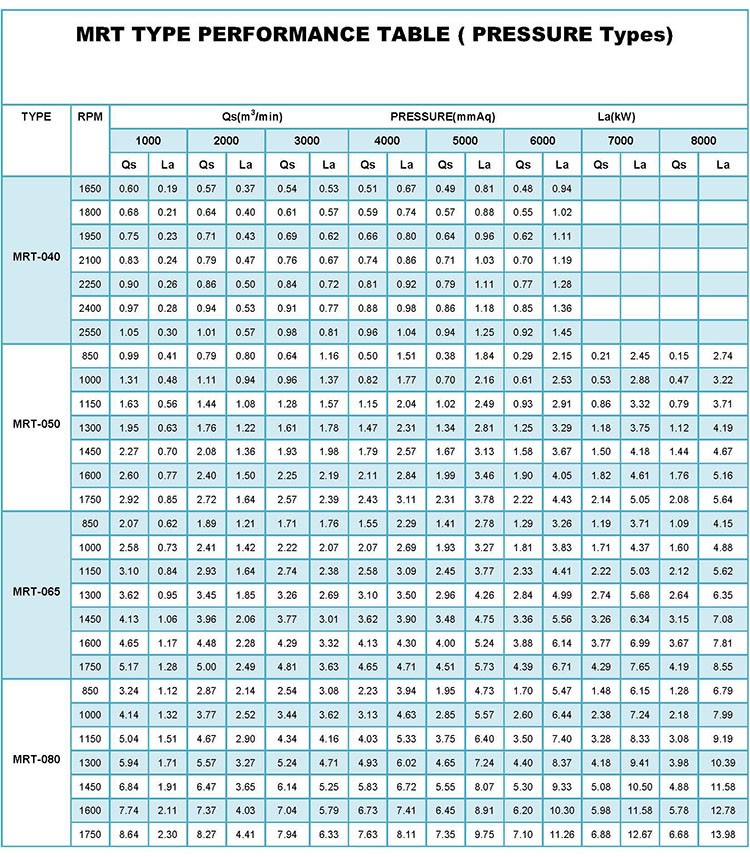

Wider range for volume,pressure and horse power.
- Bore 40mm to 400mm(1.5” to 16”)
- Pressure:1000 to 8000 mmAq (Air cooled)
- 8000 to 10000 mmAq (Water cooled and the type model is LT-#W)
- Horse power:0.5 to 700 Hp
- Capacity:0.5 to 360 m3 /min
Why select Three Lobes Roots Blower
LOWER ENERGY CONSUMPTION
Three lobes’ design control backflow pressure to rotor so reduce energy consumption.
LOWER NOISE
Pressure pluses are the major noise source of blower.
Three lobes’ design can efficiently reduce noise by approximately 5dB.
LONGER BEARING LIFE
Less vibration transmitted through the lobe results approximately 20% longer bearing life.
Conventional blowers result pressure pluses and vibration rob power and shorten the life of every bearing, gear and other drive train components.

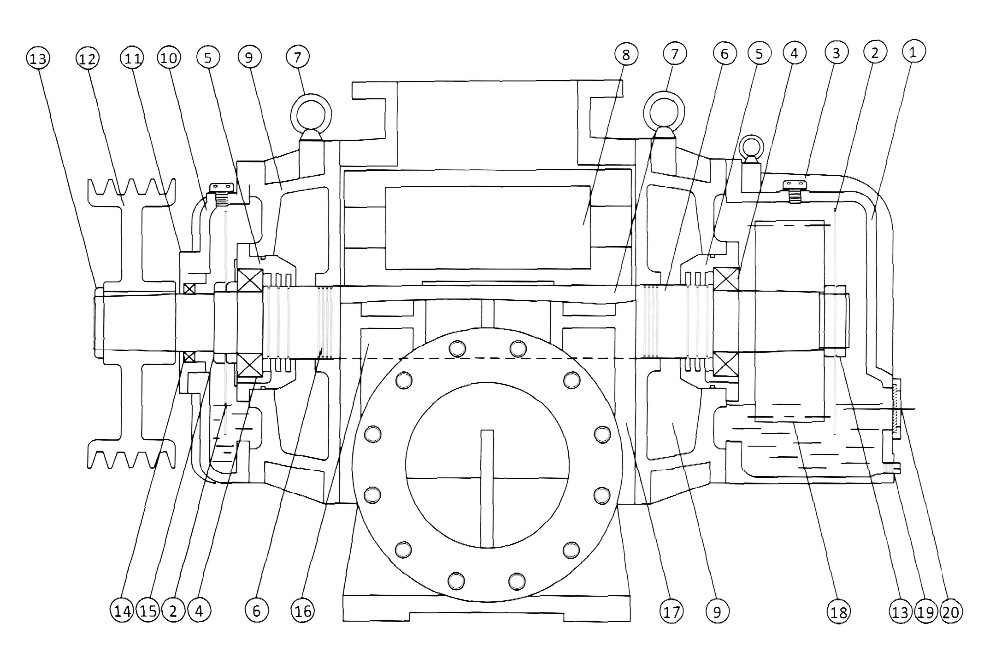

| No. | NAME | MATERIAL | No. | NAME | MATERIAL |
| 1 | Gear case | FC250 | 11 | Seal case | FC250 |
| 2 | Oil splash | SS400 | 12 | Pulley | FC250 |
| 3 | Oil plug | S45C | 13 | Nut | SS400 |
| 4 | Bearing | SUJ2 | 14 | Seal | NBR |
| 5 | Bearing Case | FC250 | 15 | Nut | SS400 |
| 6 | Labyrinth seal | SS400 | 16 | Shaft | SCM440 |
| 7 | Eye bolt | S45C | 17 | Main casing | FC250 |
| 8 | Rotor | FC250 | 18 | Timing gear | SCM415 |
| 9 | Side cover | FC250 | 19 | Oil drain | S45C |
| 10 | Oil case | FC250 | 20 | Oil gauge | S45C |
| We offer one year warranty for our roots blowers. |
Trade terms:
EX-work,CIF,CNF,Door To Door
Payment:
- T/T,L/C at sight
- Paypal
- Western Union
- Credit Card
Delivery Date:
About 7-14 days after receiving your payment or L/C at sight (Standard Specification)
Shipping:
By sea, By air,Express delivery
CE / UL / SGS / D&B Certified and Patent
| Q: What is your MOQ quantites ? |
| A: We have no MOQ limited for our standard specification products. We always prepare enough stocks to reduce the stock cost for our clients. |
| Q : What is your delivery date ? |
A : Normally we will ship you our standard specifications goods about 7-14 days after receiving your payment. It depends on the quantities you order. |
*The information provided here is for reference only
