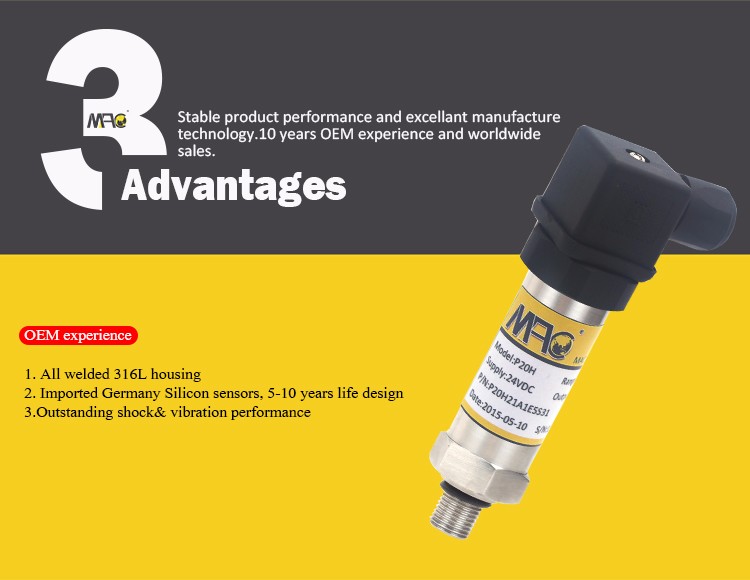

Mac transmitter 4-20mA industrial analog pressure transmitter
Why you choose MAC Pressure Sensor ?
1. high quality German Sensor cell
2. different pressure port, electrical connection for options.
3.Standard Voltage, current output
4. OEM Viable.
Profiles for Mac transmitter 4-20mA industrial analog pressure transmitter:

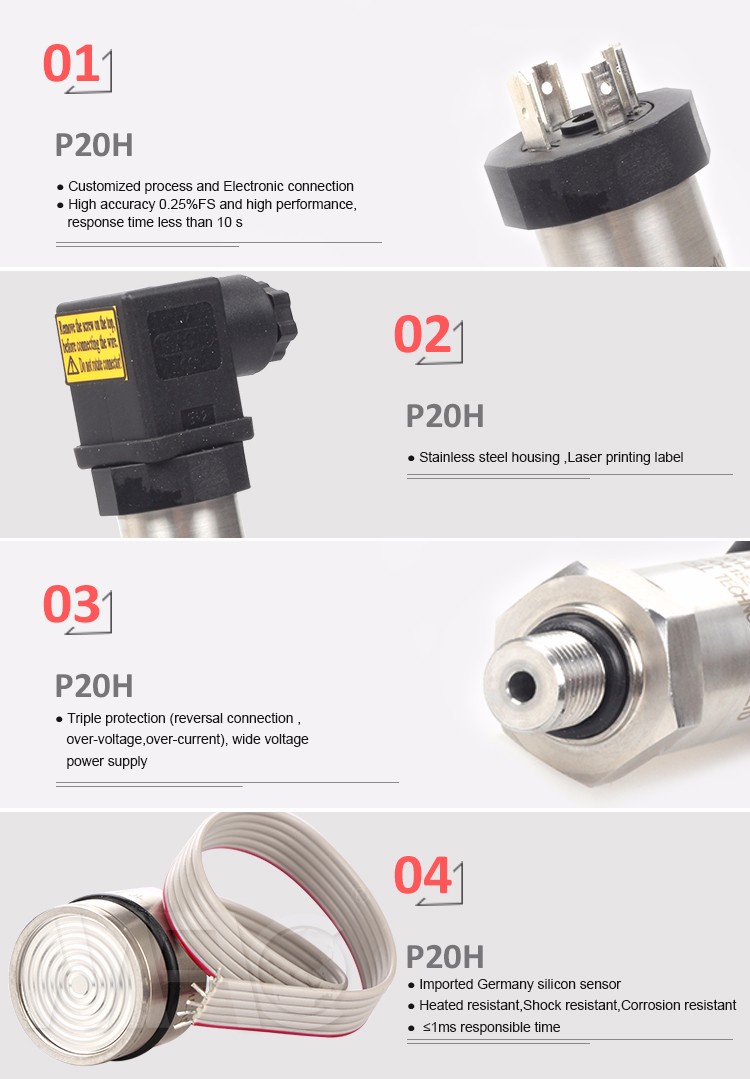

Pressure transmitter P20 is designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. The flexible pressure transmitter programme covers current , voltage, digital and double output signal, absolute and gauge (relative) versions, measuring ranges from -1~0 to 0-1000 bar and a wide range of pressure and electrical connections. The fully welded measuring system (without seals) made of high-grade stainless steel allows this device to be used in almost all media, even in harsh conditions. The structure ensures optimum protection against process medium leakage. The used high quality imported piezoresistive pressure sensor is resistant to extreme overloading and is capable of handling millions of pressure cycles. Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable, having excellent flexibility, sensitivity and diversity. Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
Characters: -Accuracy: ≤±0.5%F.S. -High stability and reliability -Using industrial silicon sensor -Digital calibration system -Multifarious electronic connector -Multifarious pressure port -Temperature compensate -Zero point drift small ling -CE Certificate approved -Accord with ROHS standard -Zero point and span adjustable via internal potentiometer
| Applications: -Hydraulic pressure controller -Industrial automation control -Oxygen Services -Petrochemical industry -Water conservancy -Pressure meter -Laboratory equipment -Real-time management well -Automatic detection system -Gas pressure measurement -And so on |

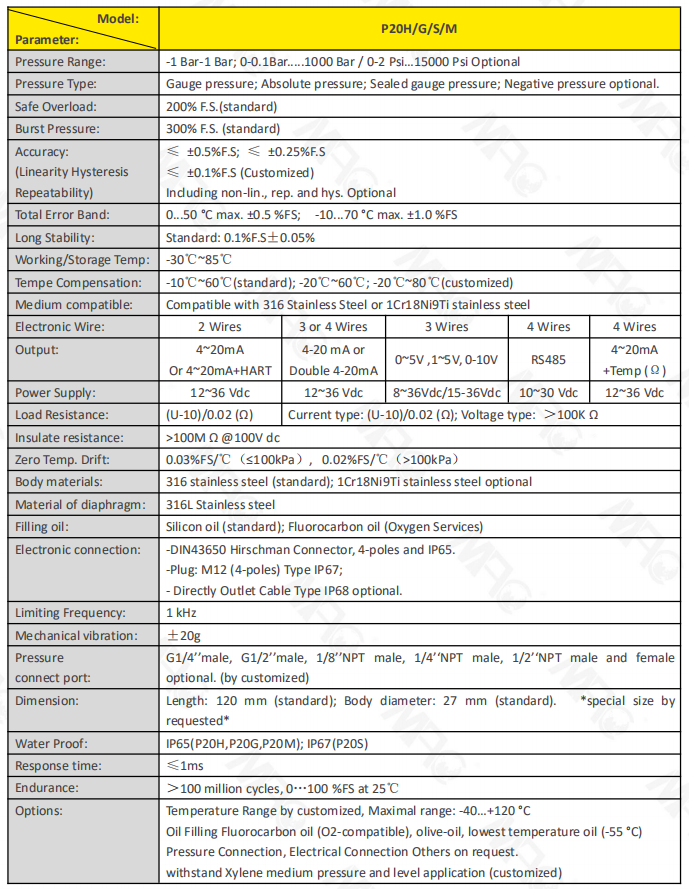

Specifications for Mac transmitter 4-20mA industrial analog pressure transmitter:
Dimension and Drawing for Mac transmitter 4-20mA industrial analog pressure transmitter:

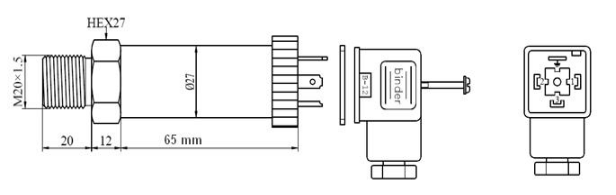

P20H (body length can short down to total 90 mm)
P20M

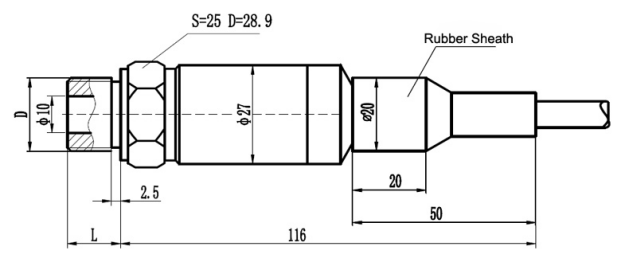

P20S
How to order Pressure Transmitter ?
In order to recommend suitable pressure sensor for you.
Kindly confirm the following questions before order :
1.Presure range?
2.Output ?4-20 ma ,0-5v or others
3.medium ? Water or air or Oil others
4.Any specail requirment ?
Mac transmitter 4-20mA industrial analog pressure transmitter

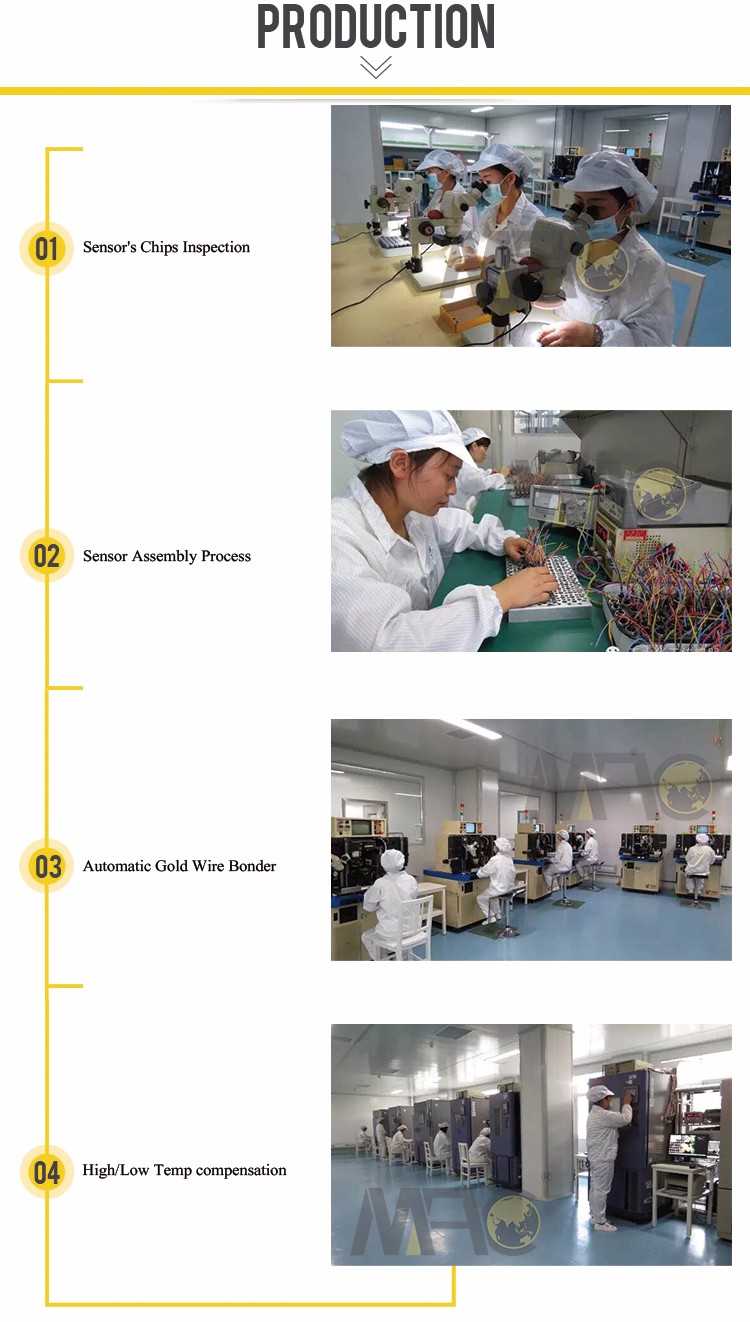

Our factory located in High-tech Zone in Changsha
We own 100 workers and 20 technical persons
Our capacity each year can reach 200000pcs
We have experience do pressure sensor for 20 years and our customer from all around the world.
Standard packaging and shipping
Q:How long will you give me the reply?
A: we will contact you in 12 hours as soon as we can. (info at macsensor dot com)
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
We can give you: Stable Quality;
We can give you: In Time Of Delivery;
We can give you: Best Price In The World;
