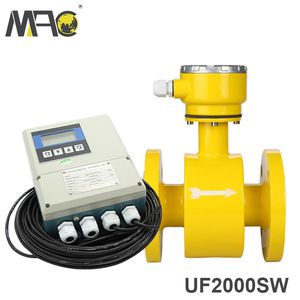

Smart Digital Chemical Water Flow Meter 4-20ma DN10-3200 Electromagnetic Flowmeter
Electromagnetic Flow Meter
EF series of intelligent electromagnetic flow meter is a high performance, high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,
Basic techinical specification for EF series of electromagnetic flow meter
EF Electromagnetic flow meter | |
Medium | Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc |
Diameter | DN6~DN2200mm |
Accuracy | ±0.5% |
Medium temperature | <60℃ |
Nominal pressure | GB 0.6MPa (DN700~DN2000) GB 1.0MPa (DN200~DN600) GB 1.6MPa (DN6~DN150) |
DIN PN16,PN25,PN40,PN63 | |
JIS10K,20K,40K | |
ANSI Class150,Class300,Class600, others can be customized | |
Flow rate | 0.3~10m/s |
Straight pipe required | Upstream ≥5DN,downstream ≥3DN |
Electrode | 316L (Suitable for domestic water, industrial water, raw water, underground water, sewage, etc.; not applicable to acid and alkali salt) |
Lining material | Chloroprene rubber(CR), polyurethane rubber(PU) |
Installation way | Carbon steel flange (standard), Stainless steel flange(optional) |
Body material | Carbon steel (standard),Stainless steel(optional) |
Power supply | 220VAC/24VDC/lithium battery |
Signal output | Pulse and 4~20mA; (if use lithium battery, without signal output) |
Communication | RS485,GPRS,Hart |
Explosion-proof | EXdeibmIICT3-T6 |
Protection proof | IP65 (compact type); IP67,IP68(suitable for remote type) |
Work environment | Ambient temperature:-20~+60℃,Ambient humidity:5%~90% |
Power | <20W |
Contact Us for electromagnetic flow meter
For more information regarding our electromagnetic flow meter please contact us using email :
info at macsensor.com or call us on +86 731 89905645.

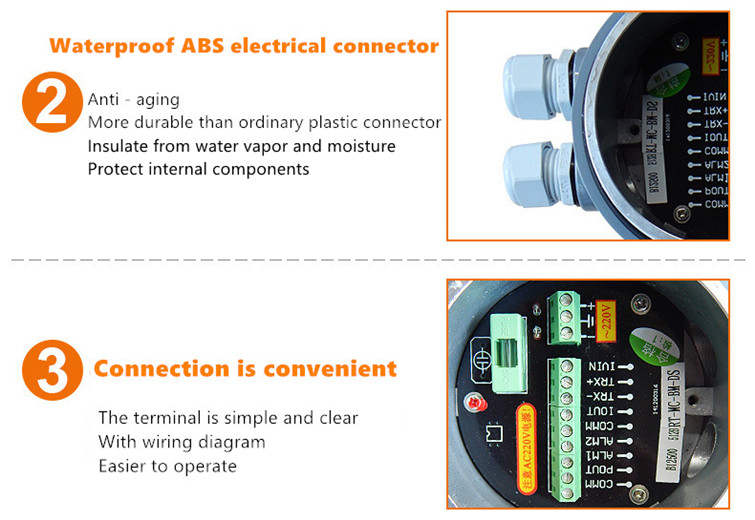

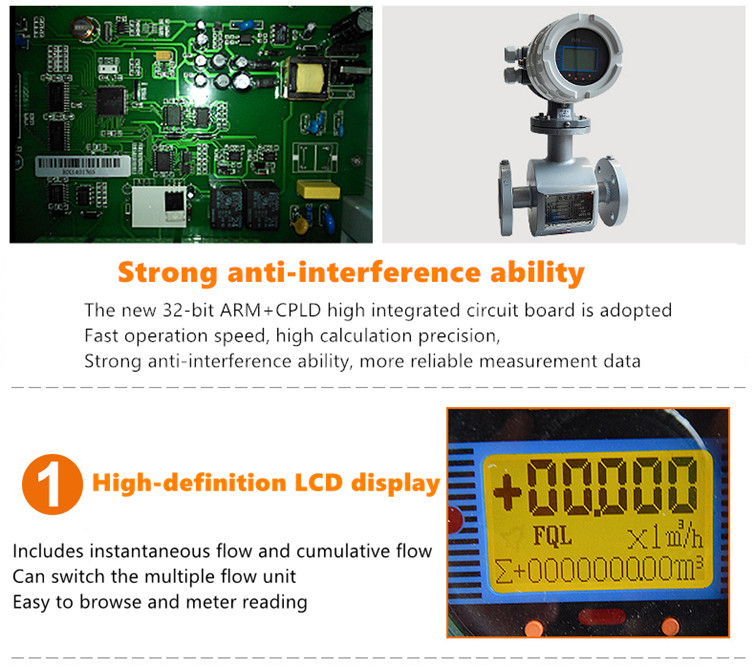

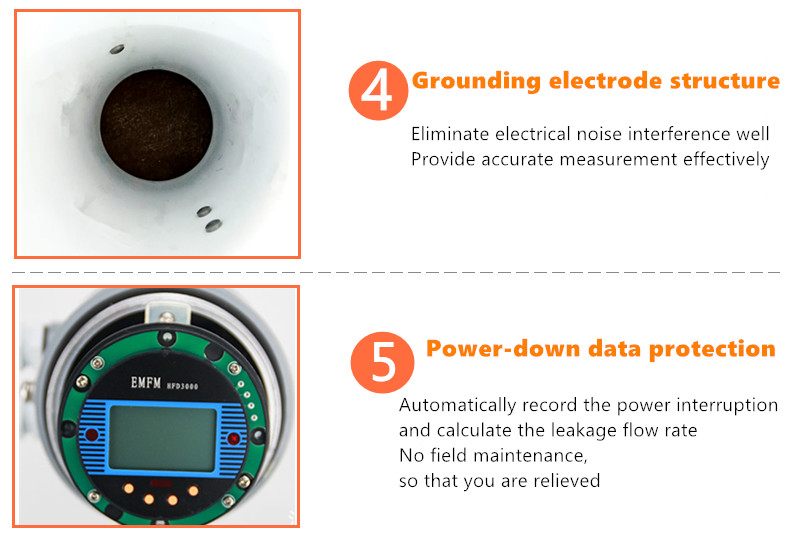

Detail show electromagnetic water flow meter

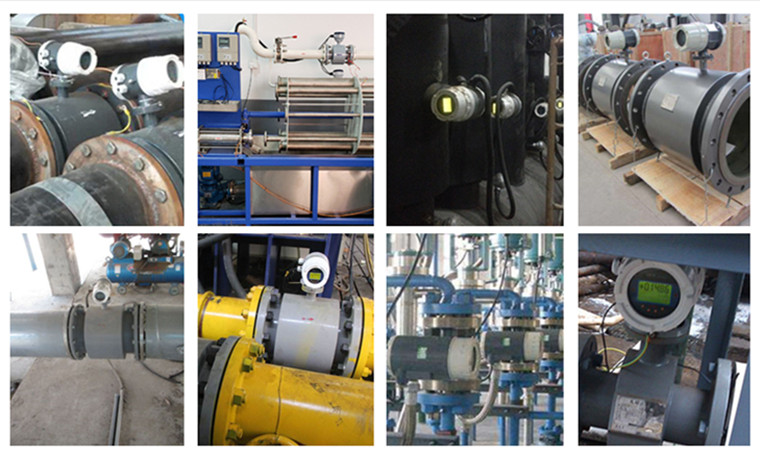

Application electromagnetic water flow meter
Note for type selection
1. The EF intelligent electromagnetic flow meter series are mainly applicable for water flow measurement of industry water, city sewage system management, environment protection industries, etc.
2. Default installation part of EF is flange connection, please inform us before ordering if other installation part is required.
