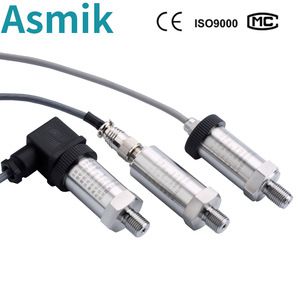

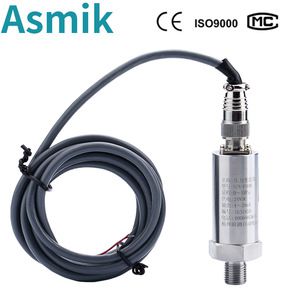

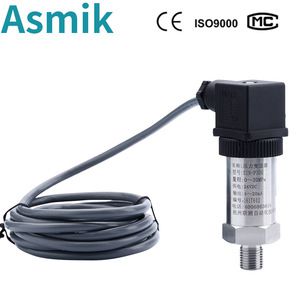

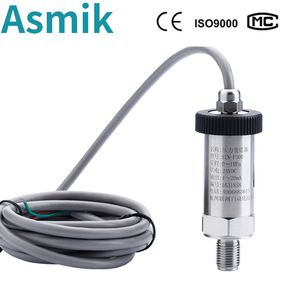

High precision and Low price 40~20ma diffusing silicon china pressure transmitter price
| Pressure range | Pressure Type | gauge pressure absolute pressure sealed pressure |
| Pressure range | 1-1000Bar (optional) | |
| Technical Index | Power supply | 24VDC 12VDC 12-36VDC |
| Signal output | 4-20mA 0-20mA 1-5V 0-5V | |
| Signal line specification | 2wire 2wire 3wire 3wire | |
| Zero Drift | ±0.03%FS/°C | |
| Accuracy | ±0.1%FS ±0.3%FS ±0.5%FS | |
| Thermal Sensitivity Shift | ±0.03%FS/°C | |
| Longterm Stability (1 Year) | <=0.21%FS | |
| Frequency Response (-3dB) | 5kHz~650kHz | |
| Compensated Temperature | -10~70℃ | |
| Working Temperature | -40~85℃ | |
| Storage Temperature | -40~125℃ | |
| Overload pressure | 200%FS | |
| Protection Classification | IP65 | |

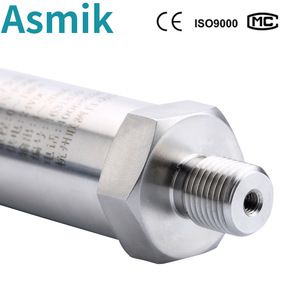

| Body materials | 316 stainless steel (standard) | |
| Transmission distance | <= 100m (No electromagnetic interference) | |
| Pressure connection | G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5, M20*1.5 etc. (optional) | |
| Measure media | Gas, water, oil or other media can be compated with stainless | |
| Accuracy | ±0.1%FS ±0.3%FS ±0.5%FS | |

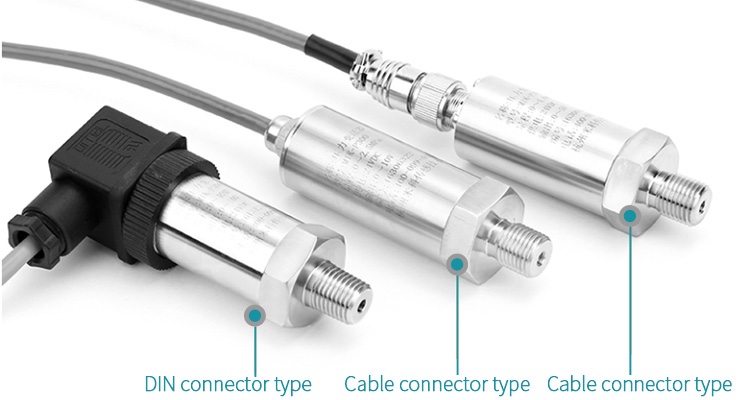

| Terminal Block Specifications | Hirschmann connector, aviation conncetor, direct lead connector |

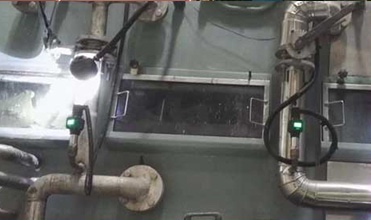

Water pressure monitoring
Beer manufacturers use ASMIK pressure transmitters to monitor water pressure. This requires a high degree of accuracy and reliable repeatability.

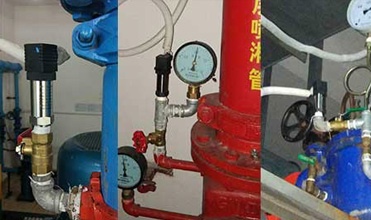

Constant pressure water supply
Constant pressure water supply system needs accurate monitoring of water pressure to ensure operation, and ASMIK pressure transmitter is widely used in the system.
Hydraulic industry
ASMIK pressure transmitter can be applied to hydraulic machinery, and its stability, impact resistance and measurement consistency have been recognized by customers.
Pressure Transmitter
Pressure Transmitter with display.
Pressure Gauge
Pre-service
-7*24 online non-break
business service.
Middle-service
-Professional advice
-One-on-on consultation
After-sale-service
-2 years warranty.
-Professional engineer free online guide
-one-stop-service
Factory

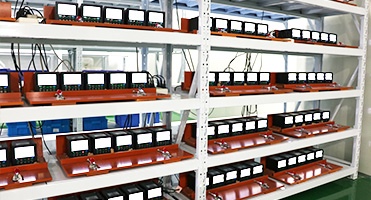

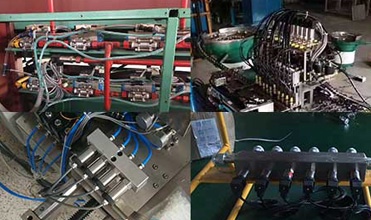

Workshop
Our Workshop

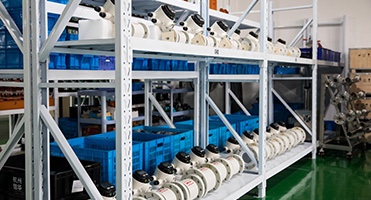

Warehouse
Our Warehouse
Show room
Our Show room
Visit our workshop online！
http://720.heartfilm.net/meiyi/mke/
copy the above link and paste it into your browser's address bar.You can visit our workshop in Hangzhou.
About ASMIK
ASMIK is a professional manufacturer and supplier for industrial process automation sensors and instrument, paperless recorder,chart recorder, digital meter, signal isolators, pressure transmitter,temperature transmitter,flow meter etc. ASMIK offers supporting products and for one-stop-service and in industries as widespread as oil & gas, water & wastewater, chemical & petrochemical in more than 30 countries.
