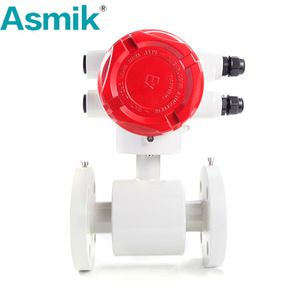

Technical Performance Parameters | |
Diameter Nominal | DN50 |
Nominal Pressure | 1.0MPa(special pressure can be made to) |
Accuracy | ±0.5 %, ±2mm/s (flowrate < 1m/s) |
Liner material | Neoprene |
Electrode material | Stainless steel SUS316 |
Medium Temperature | Integral type |
Ambient Temperature | -10℃~60℃ |
Medium Electrical conductivity | water 20μS/cm other medium 5μS/cm |
Structure type | Integral type |
Protection Class | IP65 |
Product Standard | JB/T 9248-1999 Electormagnetic Flowmeter |
Lining material:
Lining material | Main Performance | Applications |
Teflon | 1.The most steady material in plastics which is resistibal to boiling hydrochloric acid,vitriolandqua fortis as well as strong alkali and organic impregnates. | |
2.Not be perfect in abrasion resistance. | ||
PFA | Having the same abrasion resistance with PTFE. | Applicable in state of load pressure |
Having strong ability of load pressure resistance. | ||
1.Have the same abrasion resistance with PTFE. | 1.The same as PTFE. 2.Applicable in mediums of low abrasion. | |
2.Resistable for low abrasion. | ||
3.Having strong resistance to load pressure. | ||
Neoprene | 1.Be of good elasticity,retractility and abrasion resistance. | Water,sewage and slurry,mineral |
2.Be resistant to low aicd,alkali and salt but not for oxidation mediums. | ||
1.Be of good abrasion resistibility. | ||
2.Not be perfect in acid/alkali resisitance. | ||
3.Can't be used for water mixed with organic impregnants. |
Electrode selection:
Electrode material | Applications |
Stainless steel SUS316 | Applicable in water,sewage and corrosive mediums. Widely used in industries of petrol,chemistry,carbamide,etc |
Stainless steel covered with tungsten carbide | |
Hastelloy B(HB) | Having strong resistance to hydrochloric acid of any consistance which is below bioling piont. Also resistable against vitriol,phosphate,hydrofluoricacid,organic acid etc which are oxidable acid,alkali and non-oxidable salt. |
Hastelloy C(HC) | Be resistant to oxidable acid such as nitric acid,mixed acid as well as oxidable salt such as Fe+++,Cu++and sea water |
Applicable in seawater,and kinds of chloride,hypochlorite salt, oxidable acid(including fuming nitric acid),organic acid,alkali etc. Not resistant to a pure reducing acid(such as sulphuric acid,hydrochloric acid)corrosion. But if acid contains antioxidant(such as Fe+++,Cu++)is greatly reduce corrosion. | |
Da | In addition to hydrofluoric acid, fuming sulfuric acid, alkali remaining outside chemicals, including boiling hydrochloric acid |
Platinum-iridium | Almost be applicable in all chemical mediums except for aqua fortis,ammonium salt. |
Feeding control industry
To achieve automatic control of the production process, in the process of mixing materials to control the amount of sulfuric acid.

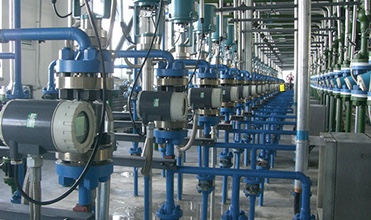

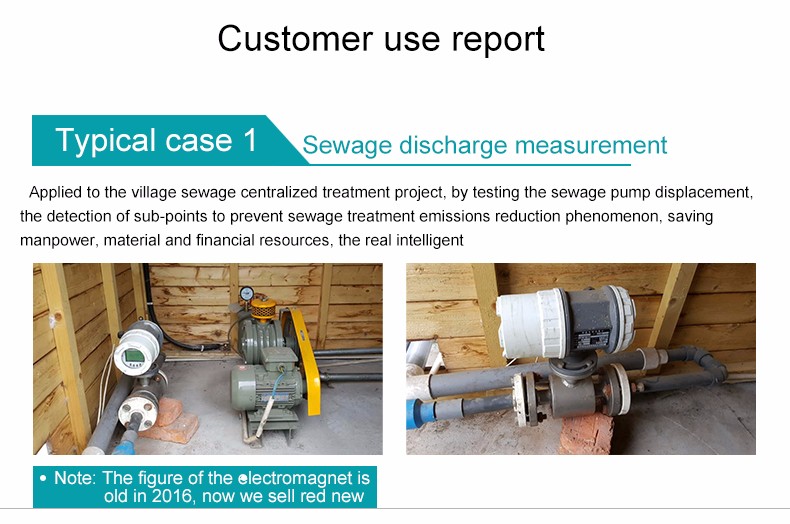

Sewage treatment industry
The electromagnetic flowmeter can record the instantaneous or accumulated time of the sewage flow value, achieve the real-time monitoring and control.
Food industry
.
Turbine Flowmeter
Measurable medium: Diesel fuel, Water, Air, Gas etc.
Ultrasonic Flowmeter
Using ultrasonic waves,the flow volume of a wide variety of gases and liquids can be measured reliably.
Vortex Flowmeter
Used in numerous branches of industry to measure the volume flow of liquids,gases and steam.
ASMIK is a professional manufacturer and supplier for industrial process automation sensors and instrument, paperless recorder,chart recorder, digital meter, signal isolators, pressure transmitter,temperature transmitter,flow meter etc. ASMIK offers supporting products and for one-stop-service and in industries as widespread as oil & gas, water & wastewater, chemical & petrochemical in more than 30 countries.
