Model No.: 317B

Name:  pressure transmitter

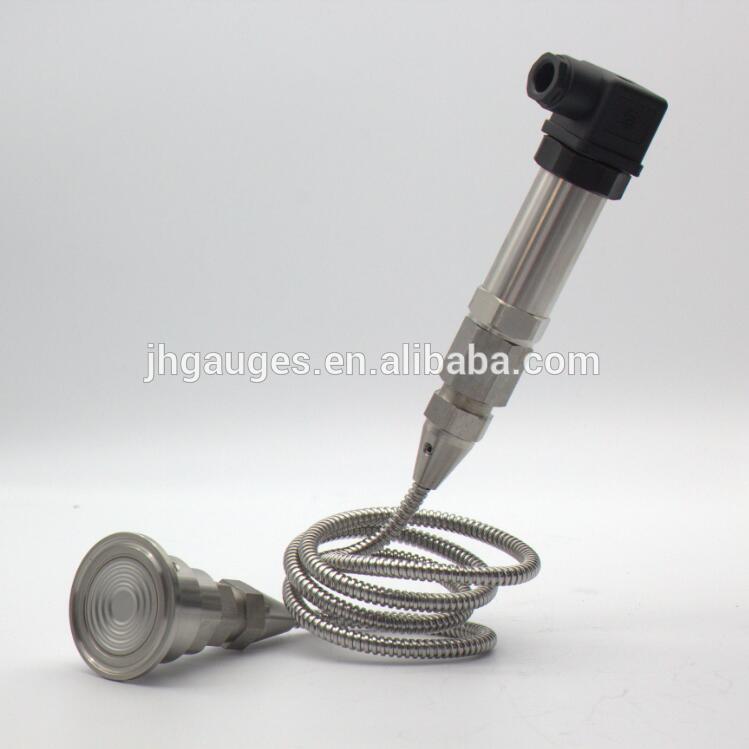

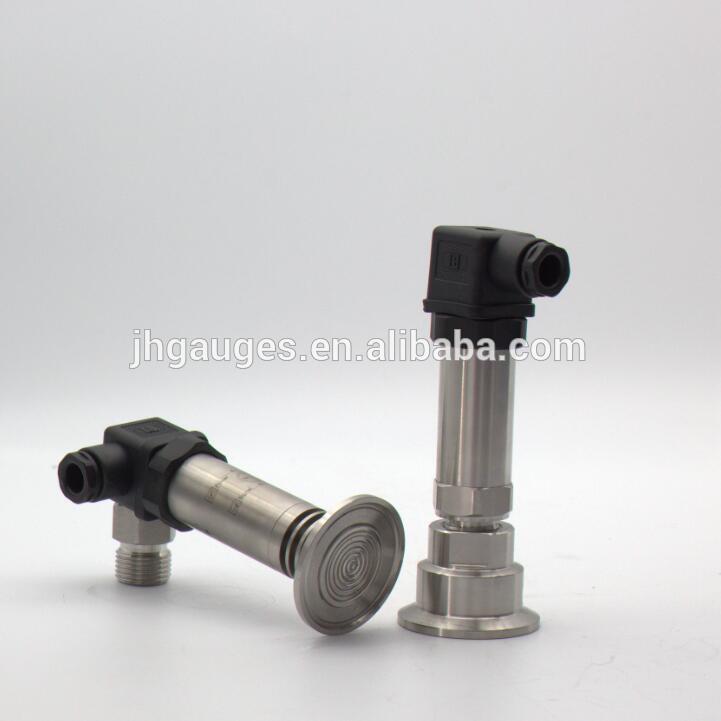

Name : Sanitary Diaphragm Type Pressure Transmitter

Model Number  : 317B

Application:

 Industrial automation process control for food, medicine, dairy and beverage industry

Feature:

High quality diffusion silicon induction element, high precision and high reliability

 Design of polarity protection and anti-jamming circuit

 The functions of digital display, anti-corrosion, intelligence, temperature and pressure integration are optional.

Specification:

1) Measuring medium:  Liquid, gas, or steam compatible with SUS316

2)Pressure range :     0~35kPa…3.5MPa

3)Safe overload :    2 times the pressure range

4)Medium temperature :  -25…80 ℃

5)Ambient temperature :  -30…85 ℃

6)temperature coefficient:  ±0.025 %FS/ ℃

7)Out put signal:   4…20mA(recommend 24V DC)

                   0/1…5V(recommend 24V DC)

                   0…10V(recommend 24V DC)

8)Load :  Current:RL≤(Ub-9)*50Ω

           Voltage:RL≥100KΩ

9) Accuracy :  ±0.25%FS; ±0.5%FS

               Related to the range and  medium temperature

10) Stability :  ±0.2%FS/year

11)Process connection :  sanitary diaphragm type:  1.5"clamp; 2"clamp

                        wetted materials: diaphragm:  SUS316

                        Interface:SUS304(SUS316 is optional)

12)Electrical connection :    DIN43650(IP65)

                            waterproof connector (IP67)

                            M12X1connector(IP67)

                            Aeronautical plug (IP65)

13)Digital display unit:     3-1/2 LED digital display  meter head

                            Limit 4-20mA output
