Model No.: 324

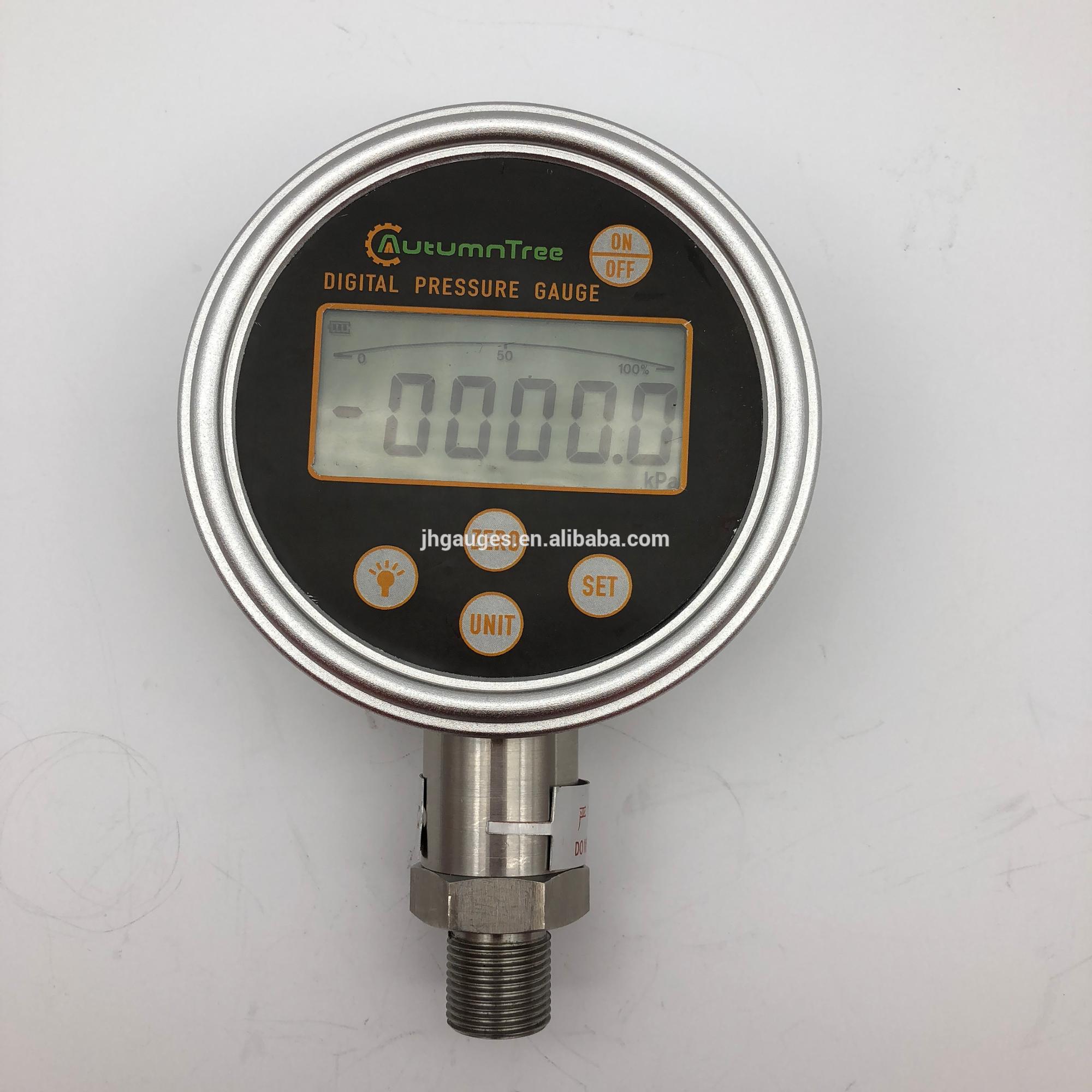

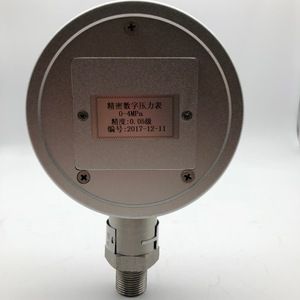

Name : Digital pressure gauge for industrial applications
Application :
Machine building
Hydraulics and Pneumatics
Pumps and Compressors
Service Tasks
Specifications :

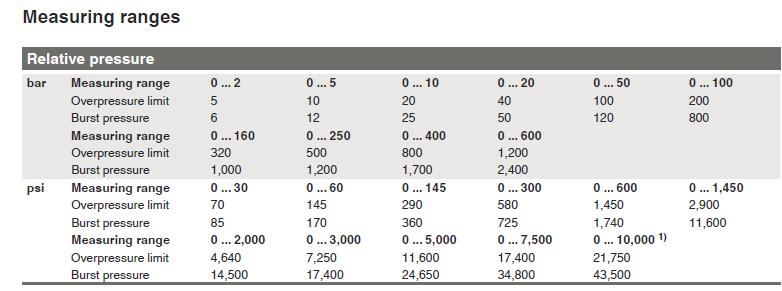

ranges : from Vacuum (-1-0),(0-1bar )......(0-1600bar)
Size : 110mm
Accuracy : +-0.05% of F.S.
Battery : 2 pcs of AAA
IP Degree : IP 65
Unit switchable : kgf/cm2 , bar , psi ,MPa , KPa ,mmH20 , Pa , mH20
Blue back lighting with large numbers
Description
stainless steel case and the battery power enable ，a flexible operation in various applications and industries.
For a precise and quick on-site reading of a pressure value, a digital indicator is the ideal solution.
Customised installation
Through its rotatable case, the model 324 can be easily adapted to local conditions. The back lighting also provides
easy readability of the display in poor lighting conditions.Additional programming functions are: Automatic
power-off, tare function and password protection. There is unit switching between the units kgf/cm2 bar, psi and
MPa KPa ,mmH20 , Pa , mH20 already integrated into the standard model 324 。
Proven sensor technology
For decades, sensors manufactured by Autumntree have guaranteed high accuracy, long-term stability and
repeatability in industrial pressure measurement. Depending on the measuring
range, the most appropriate sensor technology is used (metal thin-film or ceramic).

Digital Indicator
Type of Indication : 8-segment LCD
Digits : 5-digit
Character size : 11 mm
Update : 200 ms
Back lighting : no
Bargraph with drag Pointer function : No
Rotatability : no

LCD DRAWING :

 Software Functions
Function Model : 324A
Min/Max Memory : No
Automatic Power-off : No
Tare function : No
Unit change : kgf/cm2 ,Mpa, Kpa.bar ,psi , mmH2O, mH2O
Reset to factory setting : No
Back Lighting

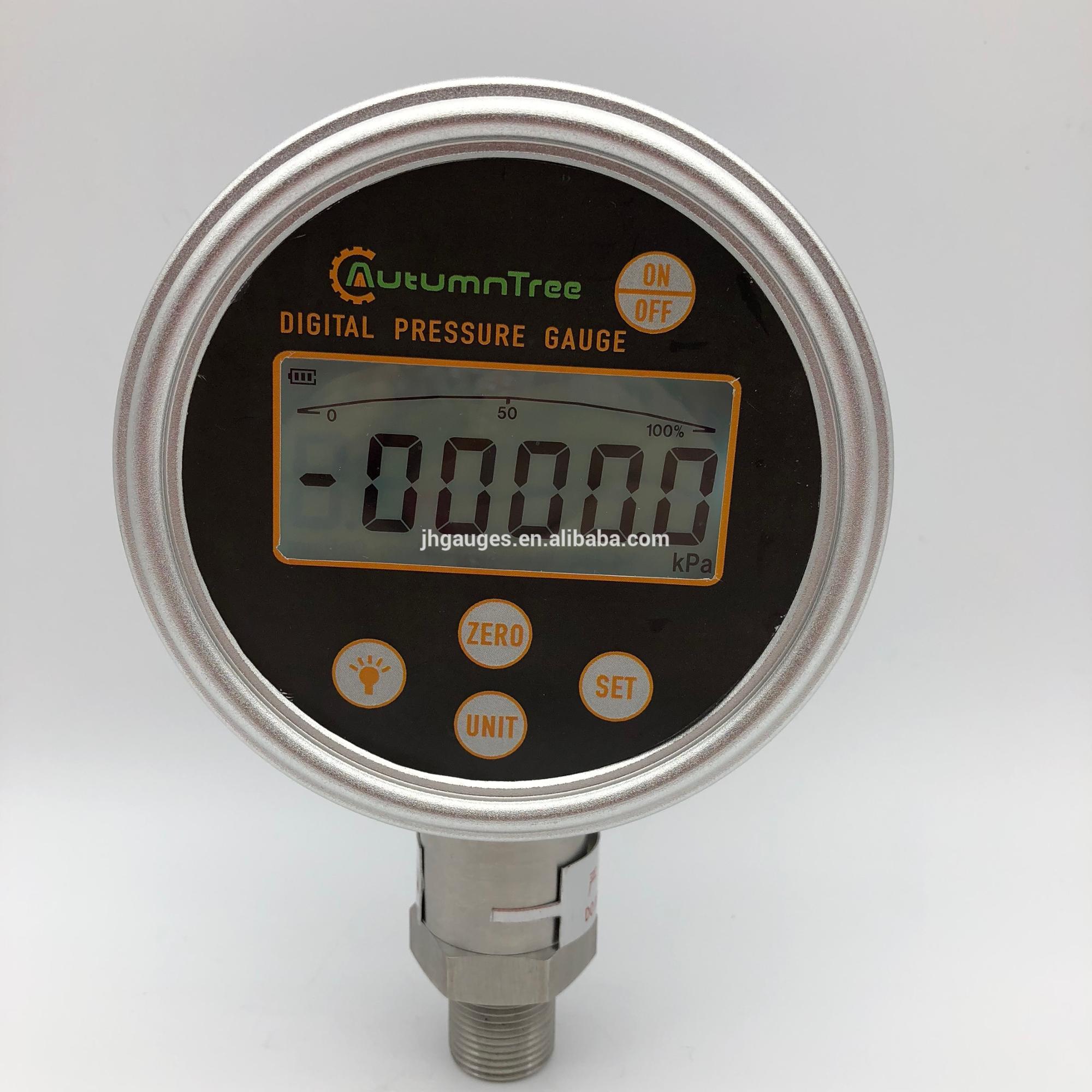

The Model 324A features Back lighting so that the display can be easily read,even under Poor Lighting conditons.
Approvals , directives and certificates
CE conformity
Pressure equipment directive 97/23/EC,PS>200 bar ,Module A, pressure accessory
EMC directive 2004/108/EC interference emission (limit class B) and immunity to EN61326-1
Voltage supply
The Power supply is provided via two 1.5 V AA Cells
The Operating time is approx. 4000 hours , when using batteries with a capacity of 2000mAh
Operating Conditions

Ingress Protection
IP 65 per IEC 60529
Temperatures
Medium :
Measuring range <100 bar : -30℃...+85℃
Measuring range ≥100 bar : -30 ℃....+100℃
Ambient : -10 ℃....+60℃
Storage :-20 ℃....+70℃
Reference Conditions
Temperature
0.....60 ℃
Atmospheric Pressure
860.....1060mbar
Humidity
<90% rel.,non-condensing
Nominal Position
Calibrated In vertical Mounting Position with Process
Connection facing downwards
Power supply
2 x 1.5V AA cell

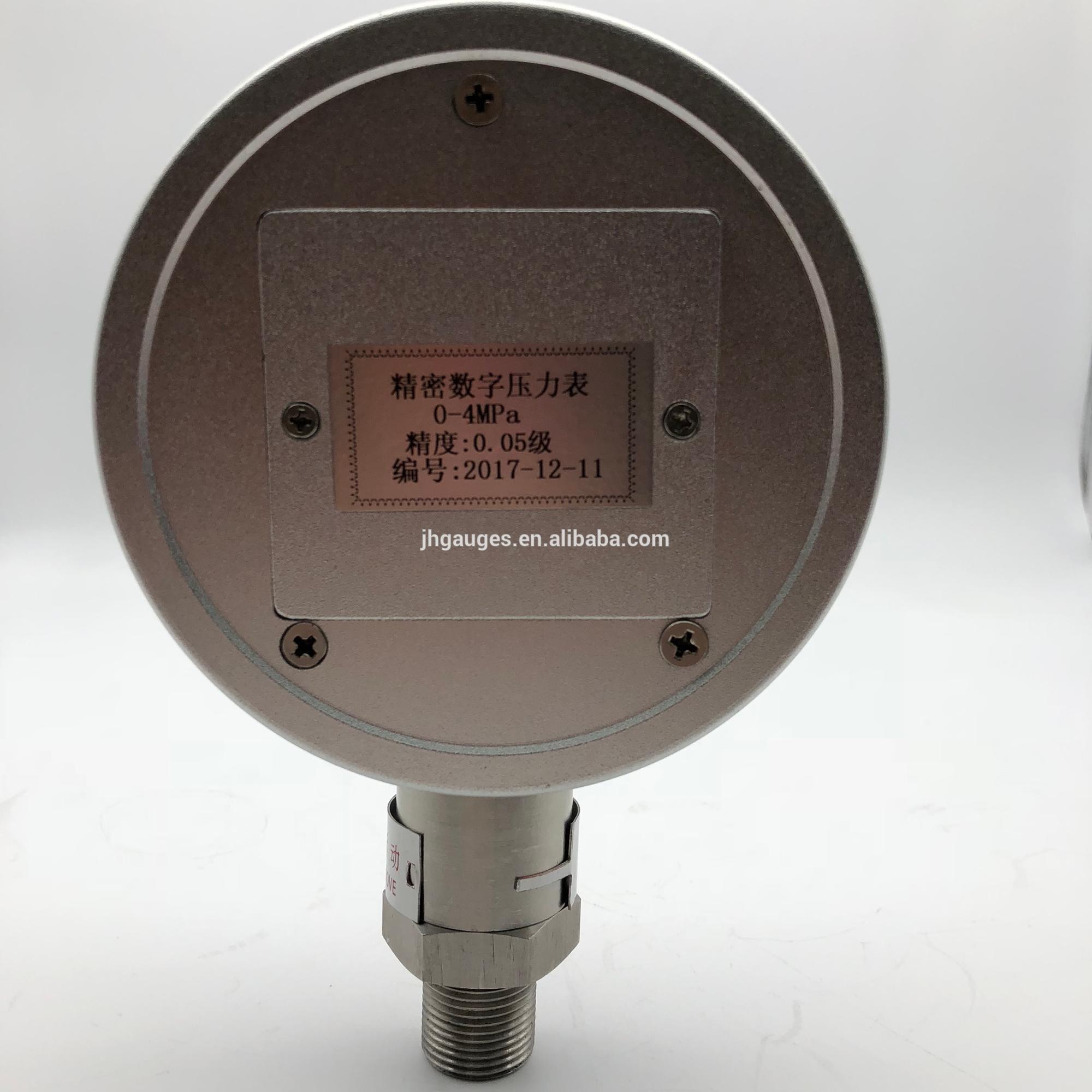

Process Connections
Standard Thread size
DIN 3852-E G 1/4 “A
EN 837 G 1/4” B
G 1/2” B
ANSI/ASME B1.20.1 1/4”NPT
1/2”NPT
Sealings :
Process Connection to DIN3852-E standard are delivered with NBR Sealing with NBR Sealing as standard.

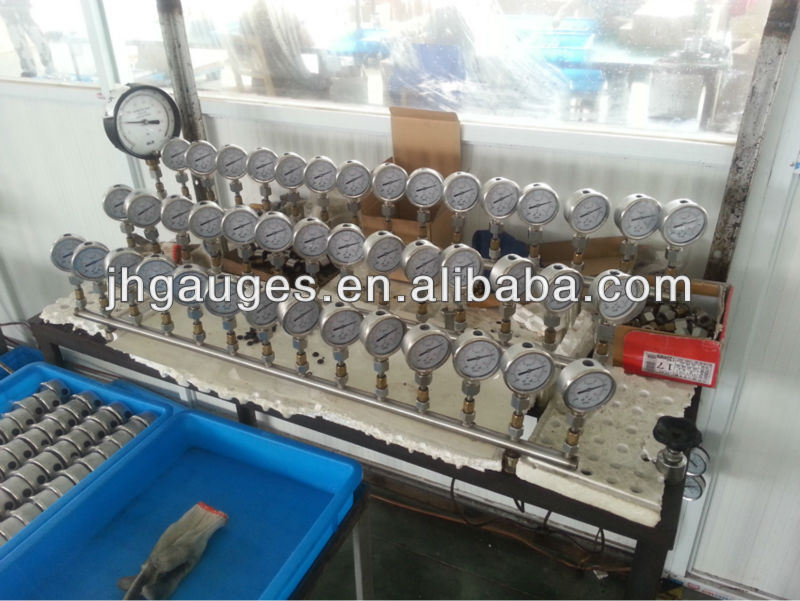

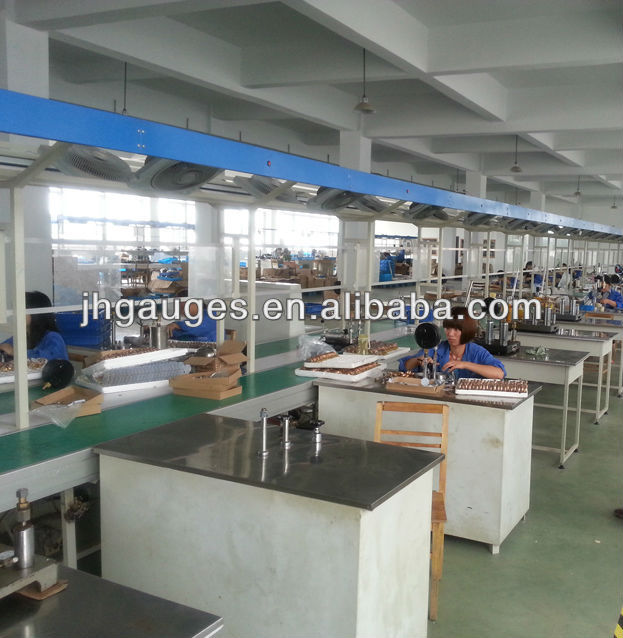

Factory showing:

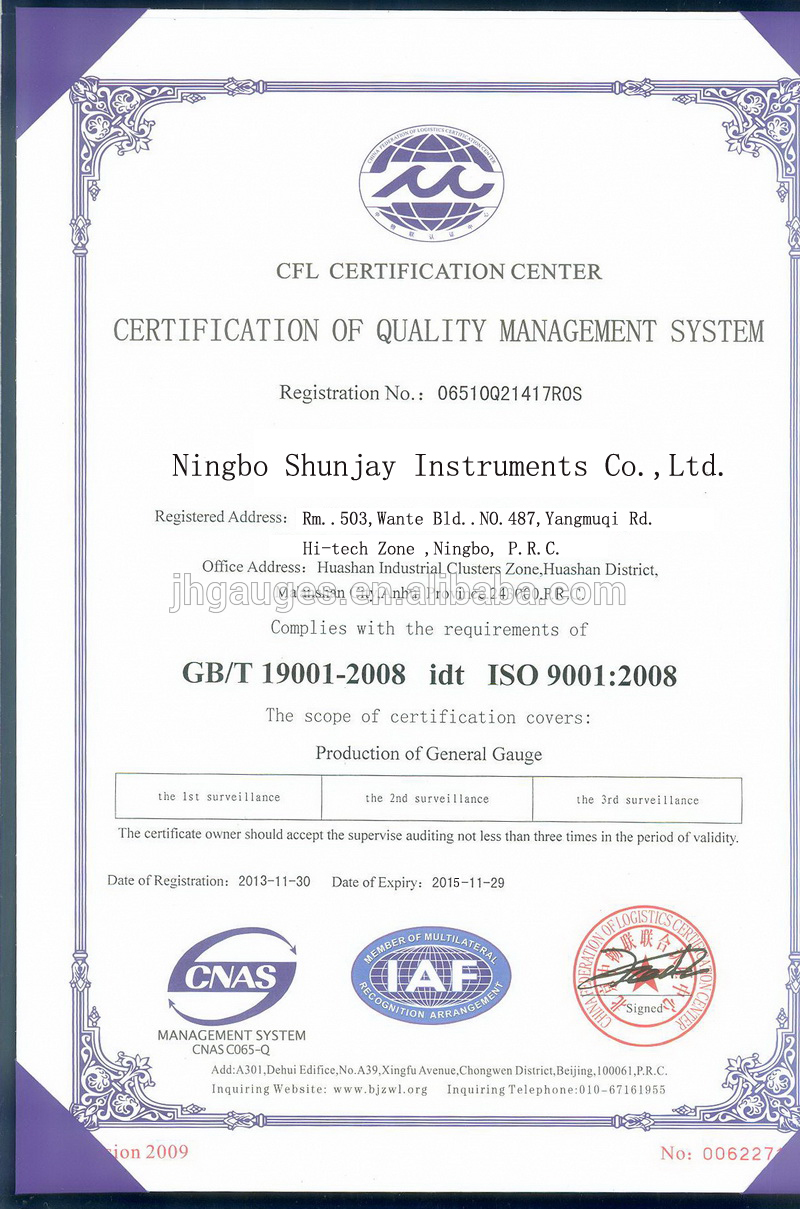

 Certificate:
